TDA7498 Цифровая плата усилителя мощности 100 Вт + 100 Вт, двухканальный стерео аудио класса D для динамика DC 15-34V E4-001 on.

TDA7498 Цифровая плата усилителя мощности 100 Вт + двухканальный стерео аудио класса D для динамика DC 15-34V E4-001 on.

Description

Name: Digital Power Amplifier
Output power:100 W * 2
Channels: 2 (2.0)
Item Name: TDA7498 Power Amplifier Board
Chip Type: TDA7498
Output impedance: 4-8 ohms
Input voltage:15-32 v
Frequency response range:18-100 KHz
Quantity:1pc
line type:D types

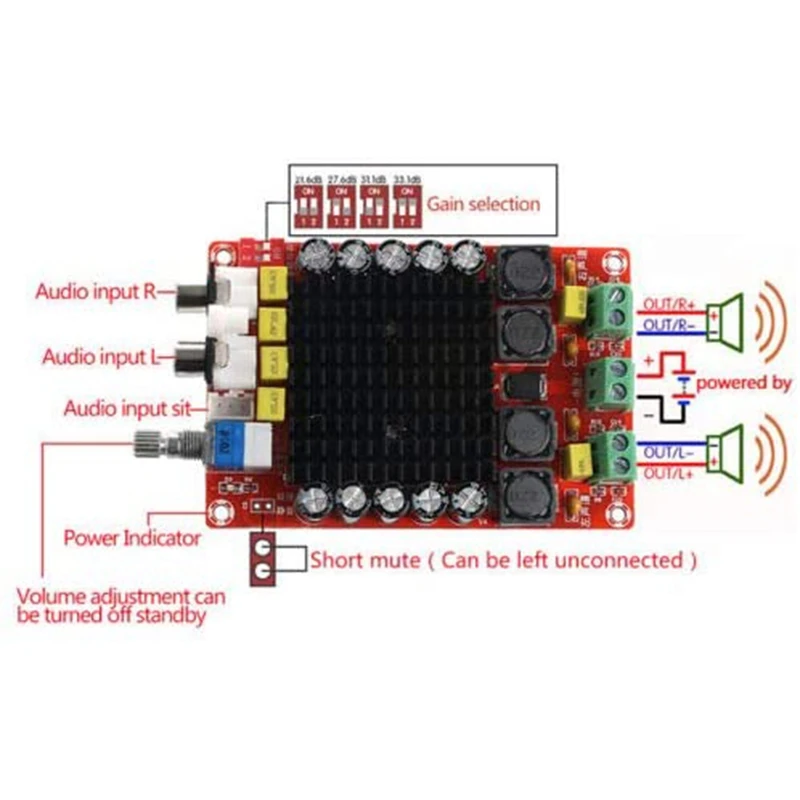

1.TDA7498 is a 100 w + 100 w class D audio amplifier. the chip adopts the only power source, mainly used in home theater and active speakers. and nu cooling block until TDA7498 adopted encapsulation EPU hyper-threading.
2.Output power: 100 w + 100 w (VDC + 32 V, RL = 4 ohm, THD = 10%
3.Width: 14-30 v power supply signal
4.Level 4 gain :( 21.6dB, 27.6dB, 31.1dB, 33.1dB)
5.Using differential input to significantly reduce common-mode noise
colour:red
Material:metal
size:96*64*25mm
Package Contents:

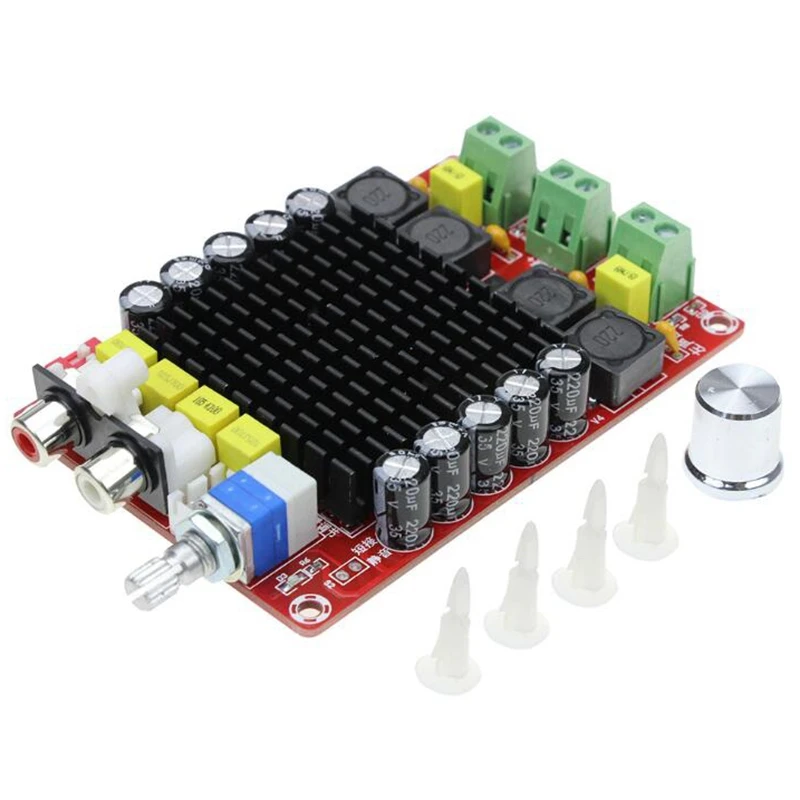

1*Digital Power Amplifier
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
