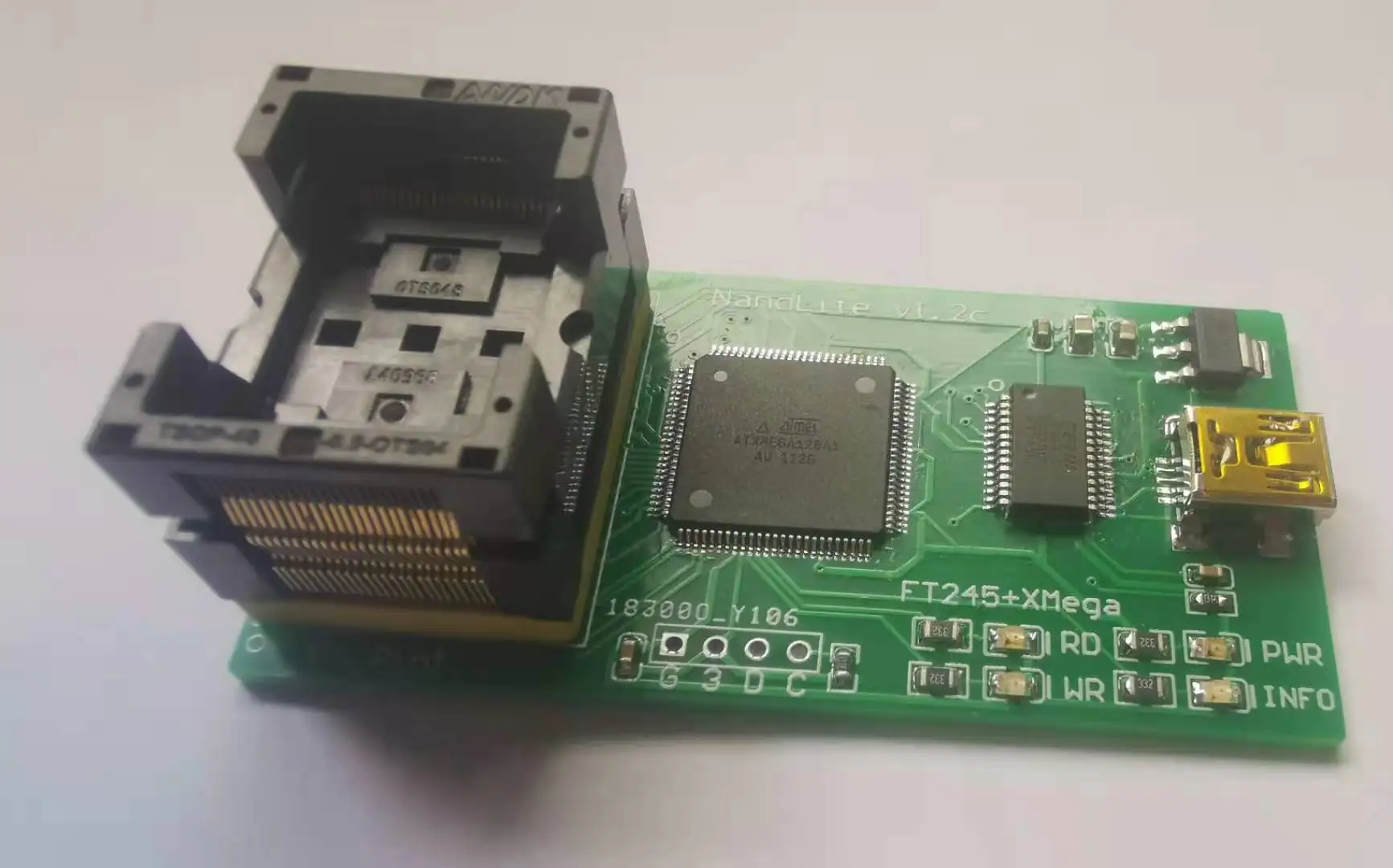

Recently, a different board has been developed. The main chip is larger and has exactly the same function. Random delivery will be made according to the supply situation

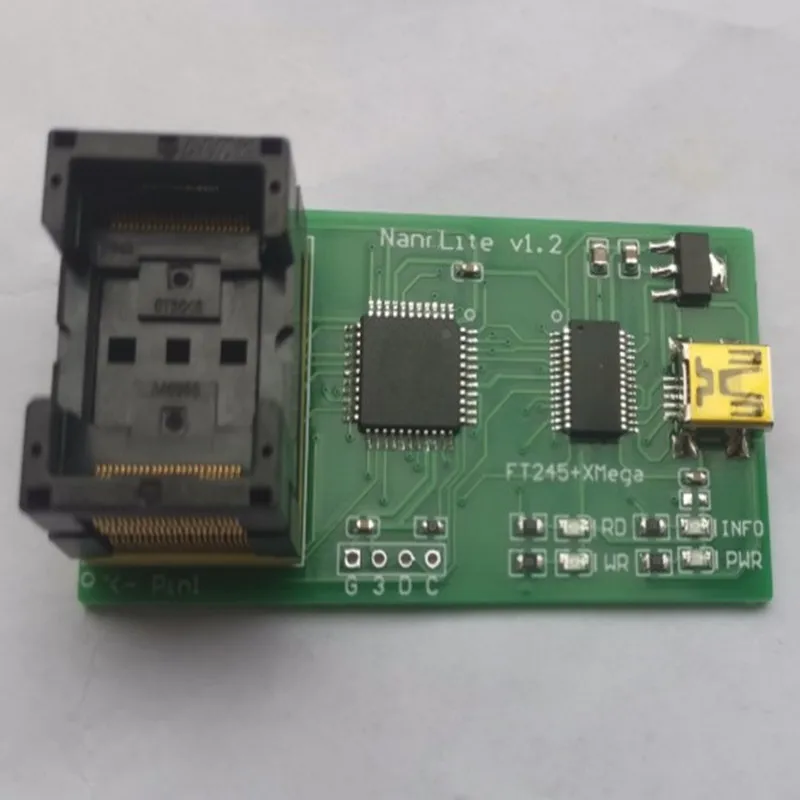

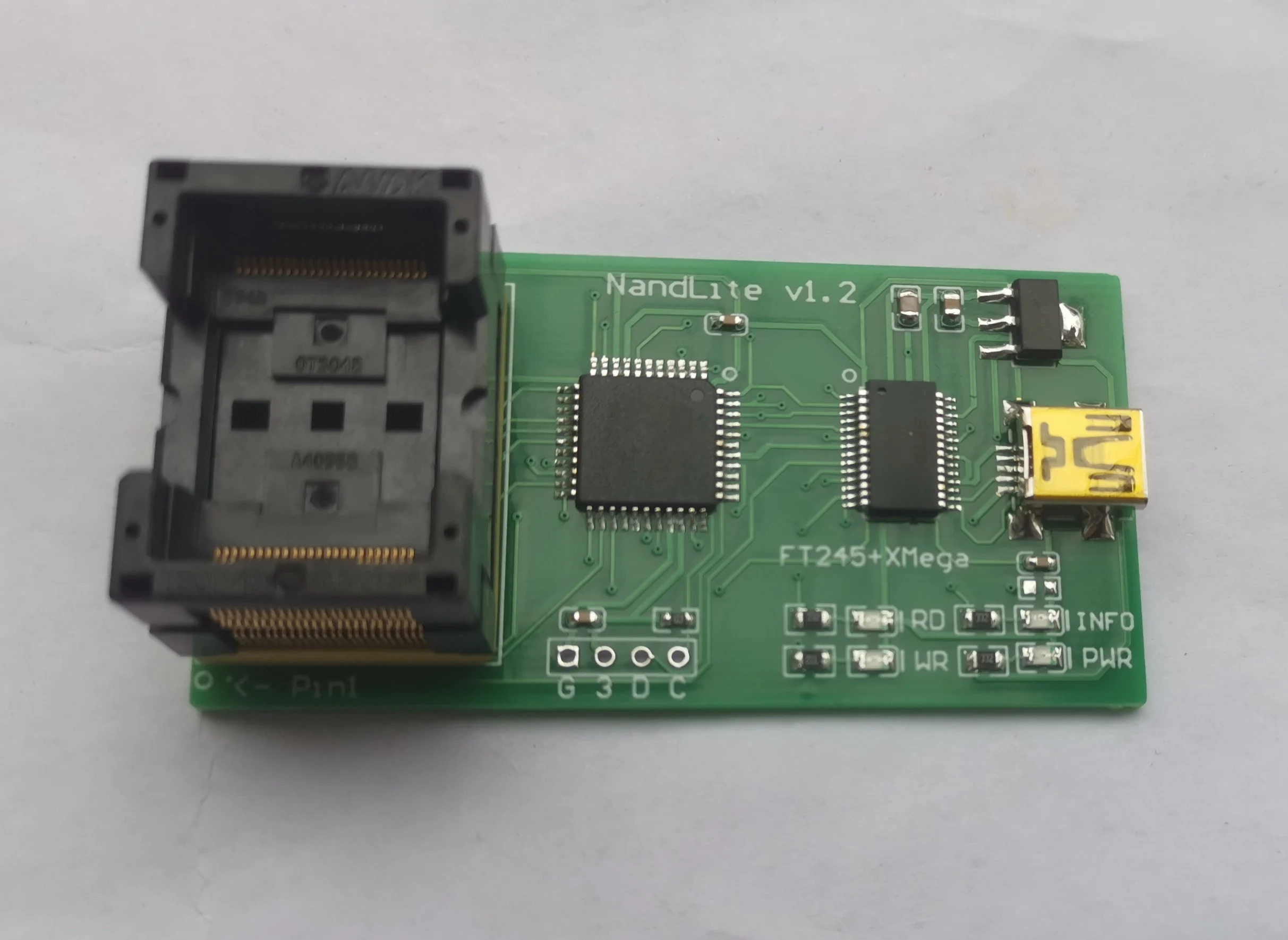

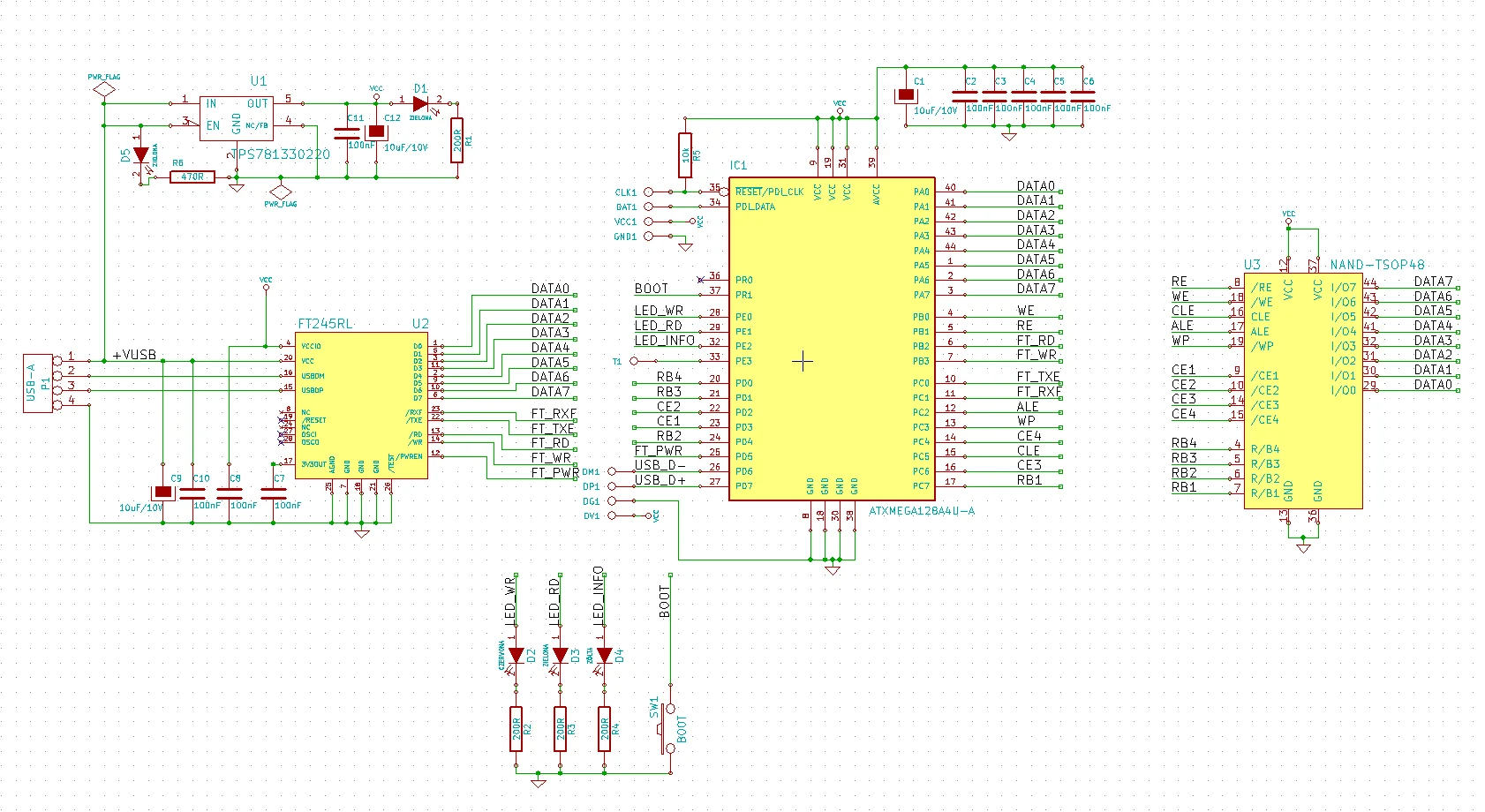

This version conforms to 1.2 hardware circuit, and the computer software is written by c# program
TSOP48 3.3V supports most flash nands on the market
Support SLC, MLC and TLC memory
Supports up to 4 CE lines
8-bit data bus support
Automatic identification of programmed systems
Support reading ONFI register (1.0-4.0)
Hardware protection against accidental writes
Burst mode data transmission: 8 Mbps
It has the function of recording reading and writing time
Soft version 1.0.1014.89
Programmable repair of data of Samsung D5500 TV k9gag08u0e
[the programmer is more suitable for NAND flash memory with relatively small capacity such as 1g08, 2g08 and 4g08. It can be read by NAND flash memory with large capacity such as 8g08, 16g08 and 32g08, but the burning time is very long and the success rate is low (due to many bad blocks, it is more appropriate to burn only the boot area)]

Read / write speed data
model        SAMSUNG : K9F1G08U0D-SCB0
capacity        138M
Read time    3 minutes 50 seconds       speed        :  0.6 MB/s
Burn time    3 minutes and 15 seconds       speed        :  0.7 MB/s
Erase time    0 minutes 17 seconds       speed        :  8.5 MB/s

支持型号列表:可以自行添加新型存储芯片的功能.

ATO;AFND1G08U3
ATO;AFND4G08U3
ATO;AFND2G08U3
EON;EN27LN4G08-25TCP
EON;EN27LN4G08-25TIP
EON;EN27LN2G08-25TIP
EON;EN27LN1G08-25TIP
EON;EN27LN1G08-25TCP
EON;EN27LN2G08-25TCP
ESMT;F59L4G81A
ESMT;F59L1G81A
ESMT;F59L1G81MA
ESMT;F59L2G81A
GIGADEVICE;GD9FU1G8F3A
HYNIX;H27UCG8T2ATR-BC;
HYNIX;H27UBG8T2CTR-BC
HYNIX;H27U1G8F2CTR-BC
HYNIX;H27U1G8F2BTR-BC
HYNIX;H27UAG8T2BTR
HYNIX;H27U2G8F2CTR-BC
HYNIX;H27UBG8T2BTR-BC
HYNIX;HY27UV08AG5M
HYNIX;HY27UF084G2B-TPCB
HYNIX;HY27US08121B-TP
HYNIX;H27U1G8F2BTR
HYNIX;H27U518S2CTR
HYNIX;HY27US08121B-T
HYNIX;HY27US08281A-T
HYNIX;H27U4G8F2DTR-BC
HYNIX;HY27UU088G5M
HYNIX;HY27US08281A-TP
HYNIX;H27U4G8F2ETR-BI
MACRONIX;MX30LF1G18AC
MACRONIX;MX30LF1G08AA-TI
MACRONIX;MX30LF4G18AC
MACRONIX;MX30LF2G18AC-2
MACRONIX;MX30LF2G18AC
MACRONIX;MX30LF2G18AC-1
MICRON;MT29F128G08CJABA
MICRON;MT29F128G08CKABA
MICRON;MT29F1G08ABADAWP
MICRON;MT29F256G08CUABA
MICRON;MT29F64G08CFABA
MICRON;MT29F32G08CBABB
MICRON;MT29F64G08CFABB
MICRON;MT29F1G08ABAEAWP
MICRON;MT29F4G08ABADAWP
MICRON;MT29F4G08ABAEAWP
MICRON;MT29F256G08CUCBB
MICRON;MT29F4G08AAC
MICRON;MT29F128G08CKCBB
MICRON;MT29F64G08CBAAAWP
MICRON;MT29F2G08ABAEAWP
MICRON;MT29F128G08CJABB
MICRON;MT29F128G08CFAABWP
MICRON;MT29F32G08CBCBB
MICRON;MT29F32G08CBABA3W
MICRON;MT29F128G08CMCBB
MICRON;MT29F64G08CECBB
MICRON;MT29F32G08CBABA
MICRON;MT29F64G08CEABA
MICRON;MT29F64G08CBABAWP
MICRON;MT29F32G08CFACAWP
MICRON;MT29F4G08ABADA
MICRON;MT29F32G08CBACA3W
MICRON;MT29F64G08CBAAAWP
MICRON;MT29F8G08ABABAWP
MICRON;MT29F32G08CBACAWP
MICRON;MT29F32G08CBADA3W
MICRON;MT29F128G08CMABA
MICRON;MT29F32G08CBACA3W
SAMSUNG;K9F1G08U0D-SCB0
SAMSUNG;K9F1G08U0D-SIB0
SAMSUNG;K9F1G08U0E-SIB0
SAMSUNG;K9GAG08U0M-PIB0
SAMSUNG;K9F2G08U0C-PCB0
SAMSUNG;K9F1G08U0A-PCB0
SAMSUNG;K9F2G08U0B-SIB0
SAMSUNG;K9F2G08U0C-SIB0
SAMSUNG;K9F2G08U0B-PCB0
SAMSUNG;K9F1G08U0A-PIB0
SAMSUNG;K9F1G08U0E-SCB0
SAMSUNG;K9F1G08U0C-SCB0
SAMSUNG;K9HCG08U1E-SCB0
SAMSUNG;K9LBG08U0E-SCB0
SAMSUNG;K9GAG08U0F-SIB0
SAMSUNG;K9LBG08U0E-SIB0
SAMSUNG;K9GAG08U0F-SCB0
SAMSUNG;K9HCG08U1E-SIB0
SAMSUNG;K9GAG08U0E-SCB0
SAMSUNG;K9GAG08U0E-SIB0
SAMSUNG;K9G8G08U0A-PIB0
SAMSUNG;K9GAG08U0M-PCB0
SAMSUNG;K9G8G08U0A-PCB0
SAMSUNG;K9F5608U0A-PIB0
SAMSUNG;K9F5608U0B-PCB0
SAMSUNG;K9F5608U0D-PIB0
SAMSUNG;K9F5608U0C-PCB0
SAMSUNG;K9F5608U0C-PIB0
SAMSUNG;K9F1208U0C-XIB0
SAMSUNG;K9F5608U0C-YCB0
SAMSUNG;K9F5608U0A-YIB0
SAMSUNG;K9F5608U0C-YIB0
SAMSUNG;K9F1208U0C-PCB0
SAMSUNG;K9F5608U0B-PIB0
SAMSUNG;K9F1208U0C-XCB0
SAMSUNG;K9F5608U0A-YCB0
SAMSUNG;K9F4G08U0B-PCB0
SAMSUNG;K9K4G08U0M-PCB0
SAMSUNG;K9F4G08U0D-SCB0
SAMSUNG;K9F5608U0B-YIB0
SAMSUNG;K9F5608U0A-PCB0
SAMSUNG;K9F5608U0D-PCB0
SAMSUNG;K9F5608U0B-YCB0
SAMSUNG;K9F2808U0C-PIB0
SAMSUNG;K9F2808U0C-YIB0
SPANSION;S34ML04G1
SPANSION;S34ML01G1
SPANSION;S34ML02G1
SPANSION;S34ML01G2
SPANSION;S34ML04G2
SPANSION;S34ML02G2
ST;NAND256W3A2BN6;
ST;NAND128W3A
ST;NAND256W3A
ST;NAND512W3A2DN6
ST;NAND512W3A2SN6
ST;NAND512W3A
ST;NAND512W3A2CN6
ST;NAND01GW3A
ST;NAND01GW3B2CN6
ST;NAND04GW3B2DN6
ST;NAND02GW3B2DN6
Samsung;K9K8G08U0A-Y
Samsung;K9WAG08U1A-Y
Samsung;K9NBG08U5A-P
TOSHIBA;TC58BVG0S3HTA00
TOSHIBA;TC58DVM92A5TA00
TOSHIBA;TC58NVG0S3HTA00
TOSHIBA;TC58DVG02D5TA00
TOSHIBA;TC58NVG2S0FTA00
TOSHIBA;TC58NVG2S0FTA00
TOSHIBA;TC58NVG2S3ETA00
TOSHIBA;TC58NVC2D4BTG
TOSHIBA;TC58NVG1S3HTA00
TOSHIBA;TC58NVG1S3ETA00
TOSHIBA;TC58NVG3S0FTAI0
TOSHIBA;TC58NVG5D2FTA00
TOSHIBA;TC58NVG5D2FTA00
TOSHIBA;TH58DVG5S0ETA20
TOSHIBA;TC58NVG4D2FTA10
TOSHIBA;TC58NVG5D2FTA00
TOSHIBA;TC58DVG3S0ETA00
TOSHIBA;TC58NVG3S0HTAI0
TOSHIBA;TC58NVG2S0HTA00
TOSHIBA;TC58NVG0S3ETA00
TOSHIBA;TC58DVM92A5TAJ0
Winbond;W29N01HV
Winbond;W29N01GVS
Winbond;W29N08GVS
Winbond;W29N02GVS
Winbond;W29N04GVS
skHYNIX;H27U2G8F2DTR-BC
