TL631 Pro Многофункциональная настольная и ноутбучная карта LPC-DEBUG Post Card PCI PCI-E Mini Motherboard Diagnostic Analyzer Tester

---

Brand NameMaiwoOriginMainland ChinaCertificationNONEMeasurement unitpiece/piecesEach pack1DIY SuppliesELECTRICALTypeFor computer repairModel NumberTL631 Pro

Unavailable in

Reviews

5,0

12 reviews120000Top reviewsWith photosFrom Russia

All stars

All starsAdditional

• Alexander P.

  Color: white

  10 September 2022·Show original

  The goods came quickly, without damage. Checked on the motherboards-on PCI works fine, on PCI-E does not work, the download process leads to hang, the display can display other code. I checked on gigabyte boards. It's not clear yet.

  Show more2
• Anonymous user

  Color: Black

  24 February 2023·Show original

  In RB, 51 days delivery, works as expected, recommend

  Show more
• Alexey K.

  Color: white

  18 May 2022
  Show more

Already showed 1 - 10 form 1212Open 12 reviews

Description

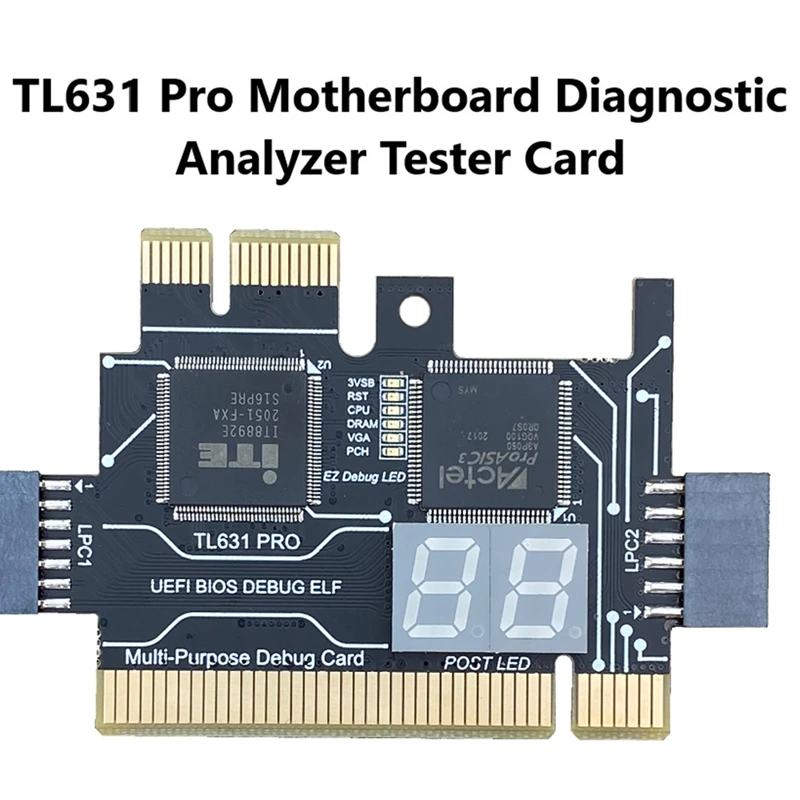

TL631 Pro Multifunction Desktop Laptop LPC-DEBUG Post Card PCI PCI-E Mini PCI-E Motherboard Diagnostic Analyzer Tester,B

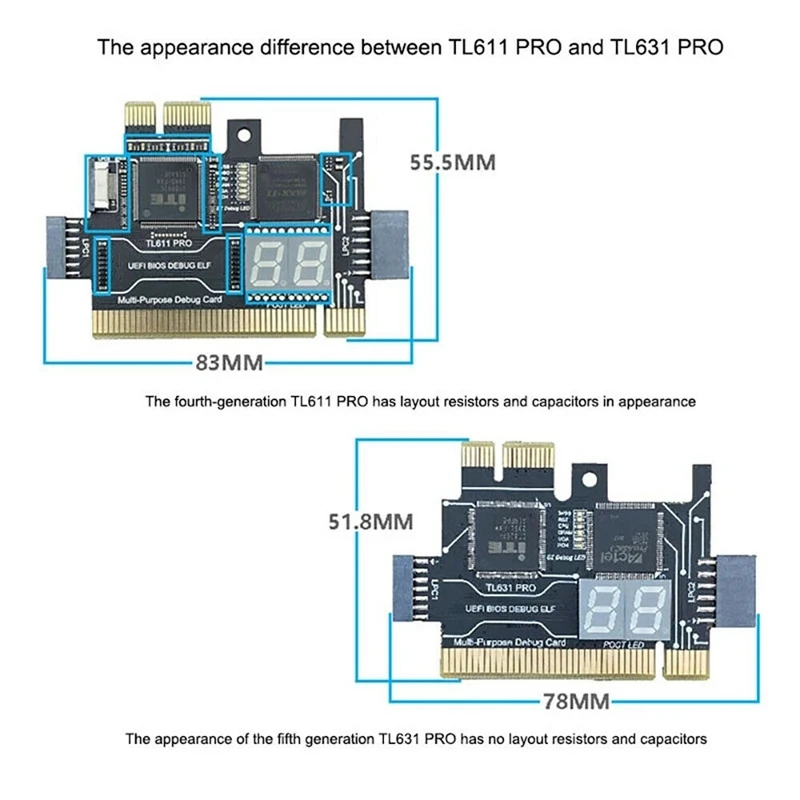

1. TL631 PROuses the new 130-nanometer actel ProASIC3 flash memory series chip with a new pure system. Inherit the family design language style.

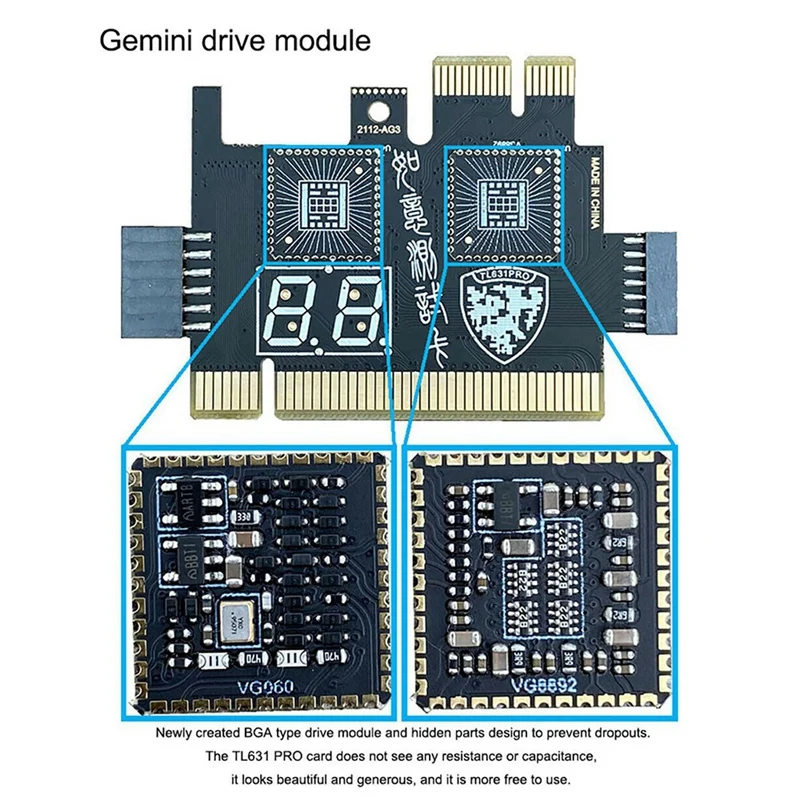

2. Gemini drive module: BGA type driver module, hidden part design.
3. The TL631 PRO card does not see any resistance and capacitance, it looks beautiful and generous. Use it more freely.

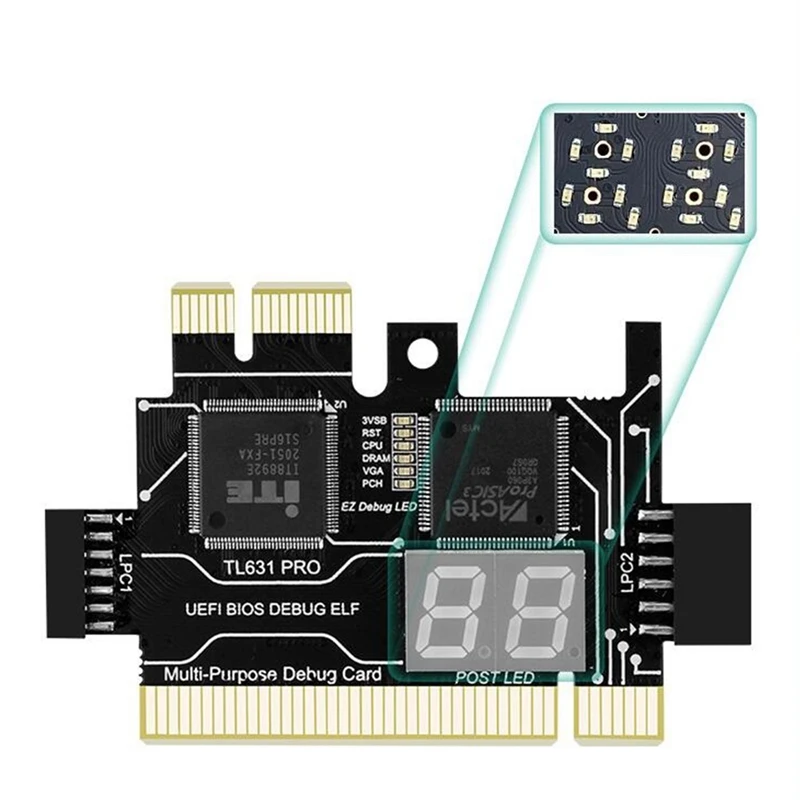

4. Integrated patch digital tube: Self-developed binding digital tube, brand LED core, bright and comfortable, thin and scientific sense.

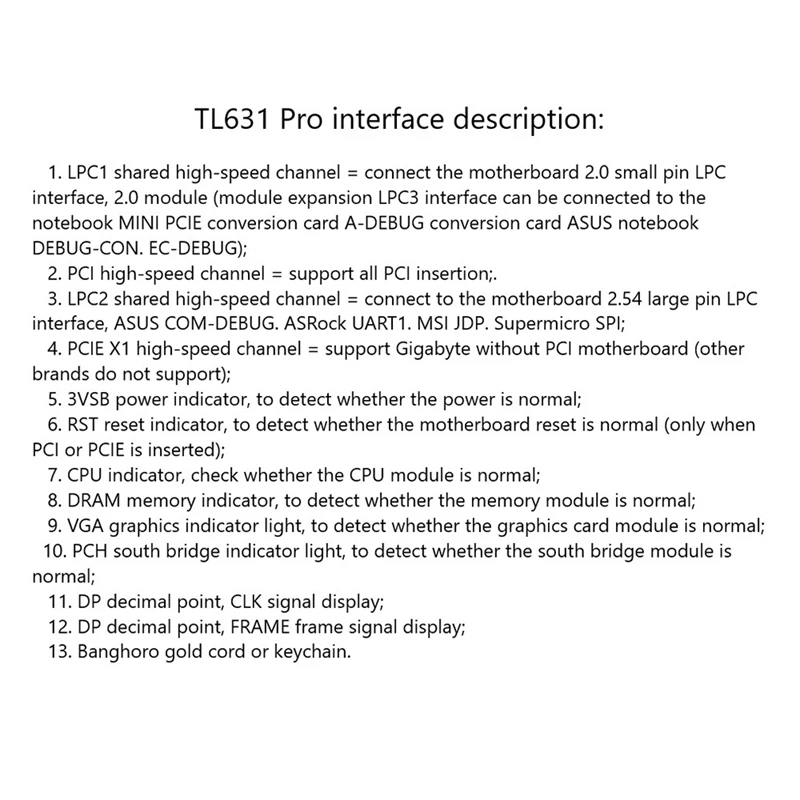

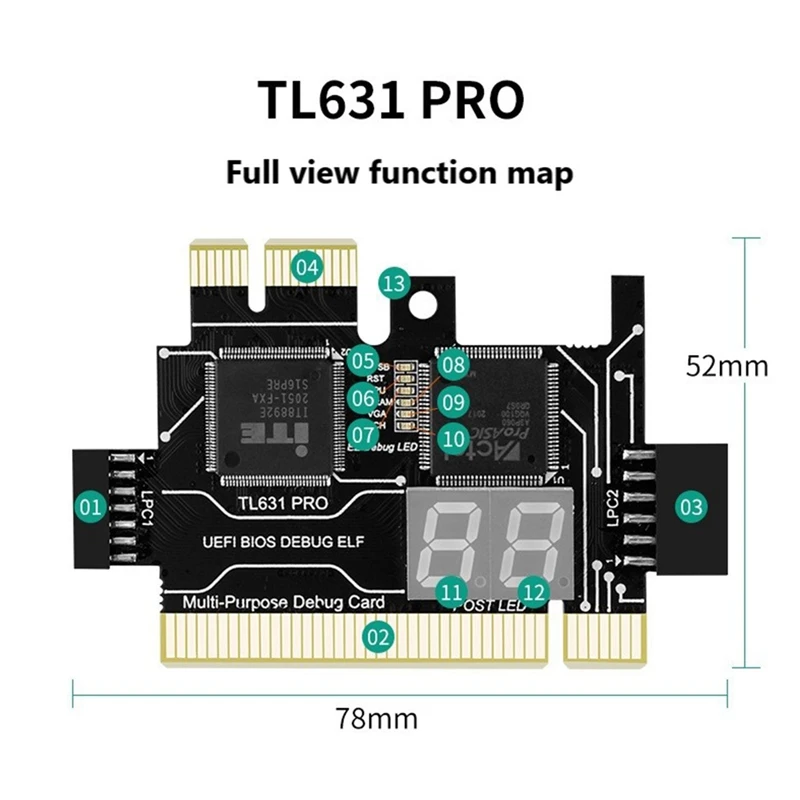

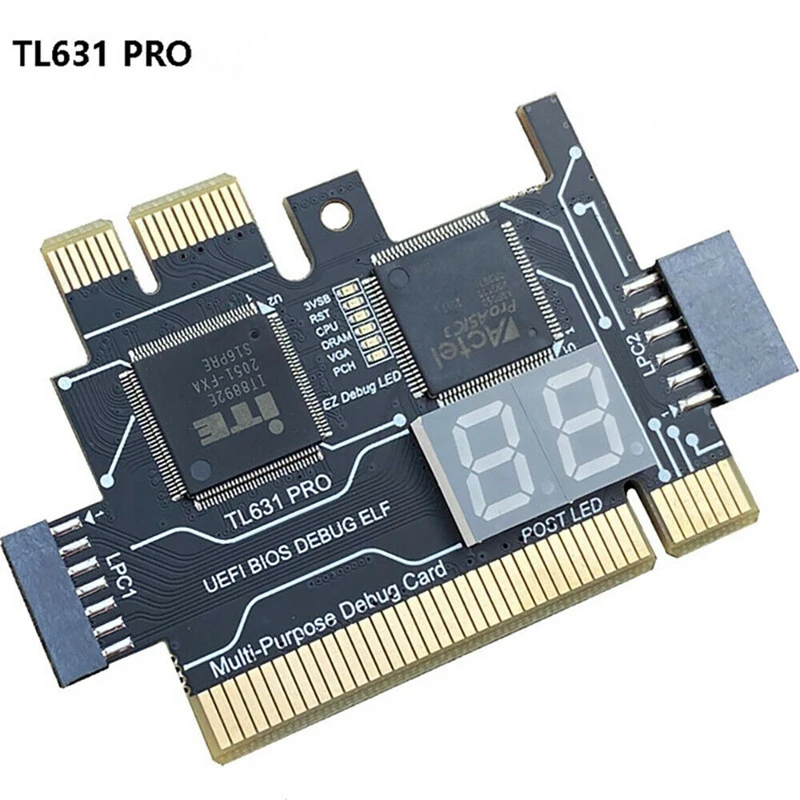

TL631 Pro interface description:
1: LPC1 shared high-speed channel = connect to the motherboard 2.0 small pin LPC interface, 2.0 module
(Module expansion LPC3 interface can connect notebook MINI PCIE conversion card, A-DEBUG conversion card, ASUS notebook DEBUG-CON. EC-DEBUG).
2:PCI high-speed channel = support all PCI slots.
3:LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, ASUS COM-DEBUG. ASRock UART1, MSI JDP, Supermicro SPl.
4:PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands do not support).
5:3VSB power indicator, to detect whether the power is normal.
6:RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)
7:CPU indicator light, to detect whether the CPU module is normal.
8:DRAM memory indicator, to detect whether the memory module is normal.
9:VGA graphics indicator light, to detect whether the graphics card module is normal.
10:PCH south bridge indicator light, to detect whether the south bridge module is normal.
11:DP decimal point, CLK signal display.
12:DP decimal point, FRAME frame signal display.
13:threading hole
Colour:black
Material:PCB board + electronic components
Size:78 x 52mm
Types: A/B

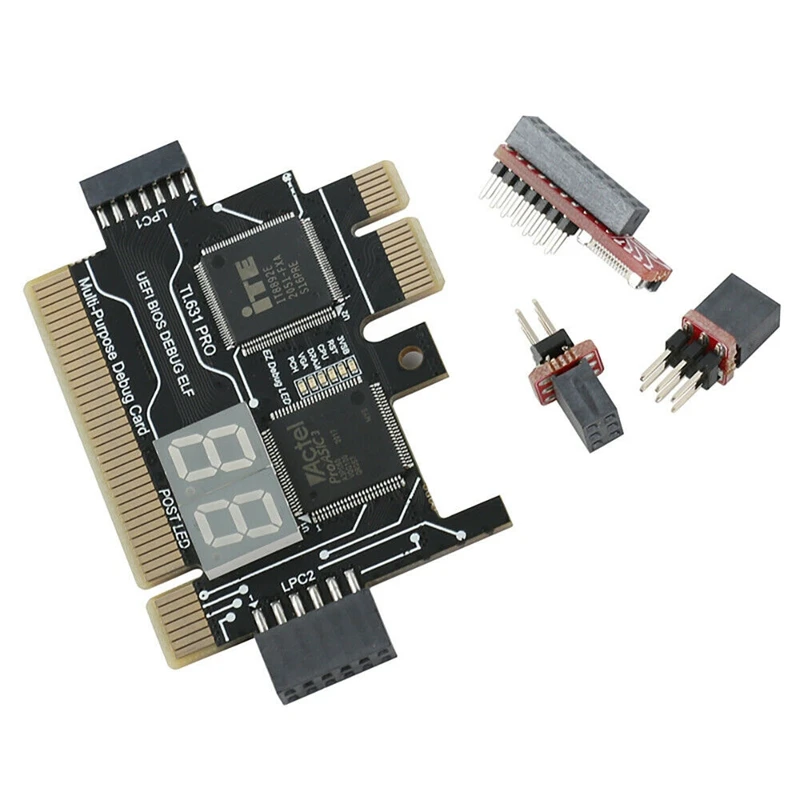

Package Contents:
1 x TL631 Pro Diagnostic Card
/
1 x TL631 Pro Diagnostic Card
1 x 2.0 modules
2 x 2.54 modules

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.ucts are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

---
