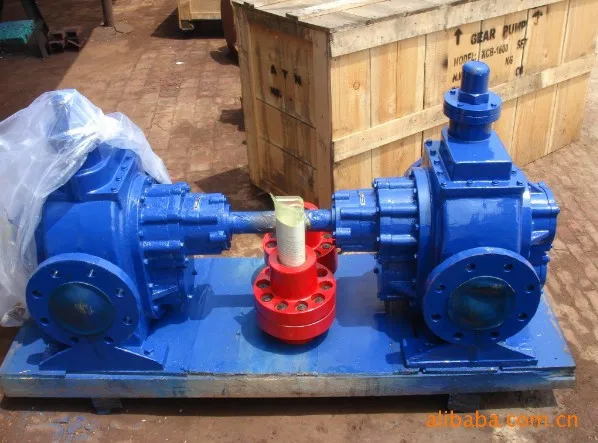

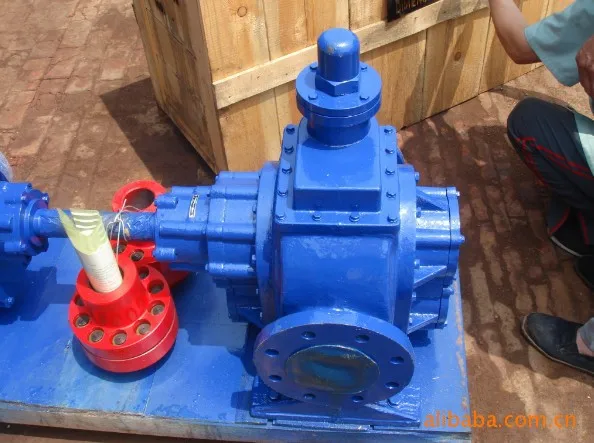

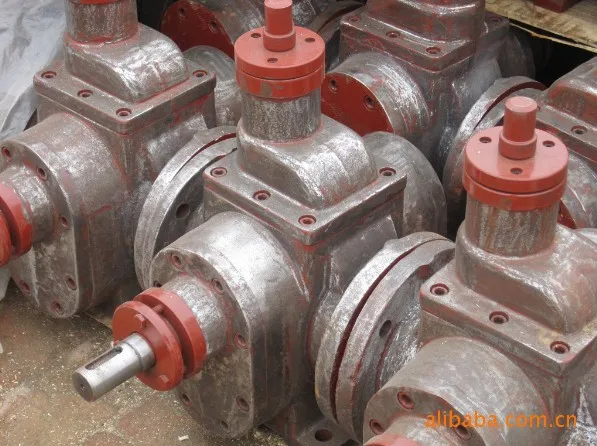

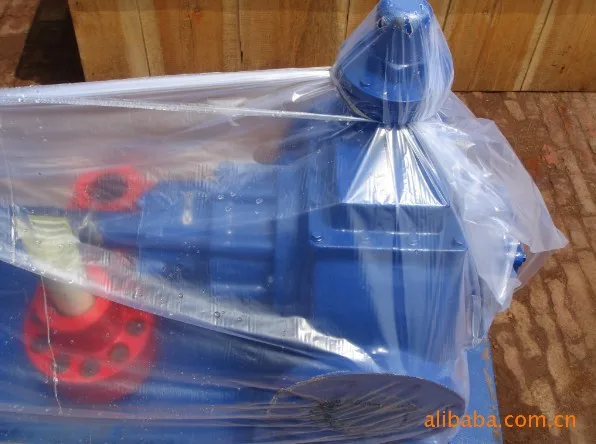

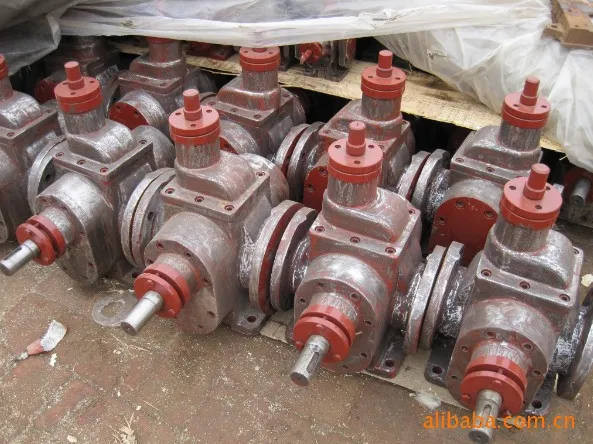

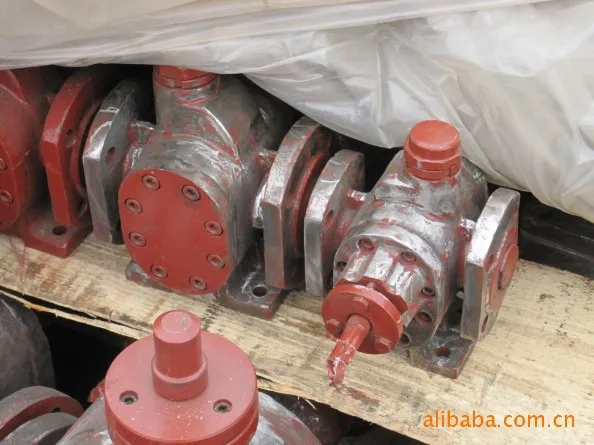

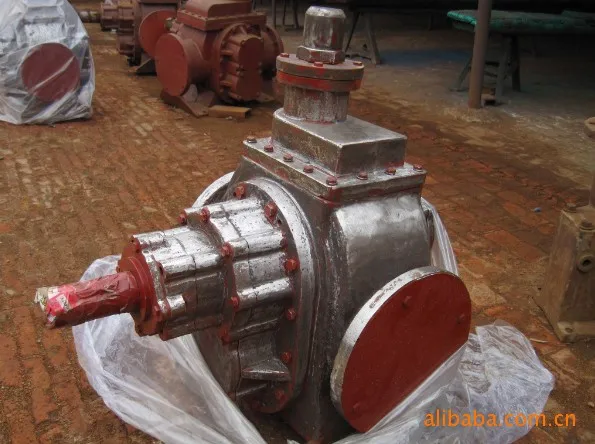

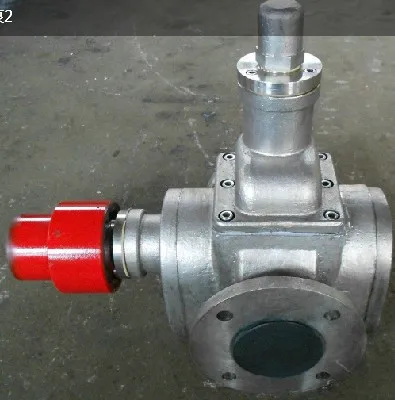

YCB1.0/0.6Series Marine Circular Gear Pump/lubrication oil pump/Pump with Heat Preservation Jacket/diesel transfer pump | Обустройство
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-20-2026 | 0.57 руб. | 0.77 руб. | 0 руб. |
| Feb-20-2026 | 0.69 руб. | 0.51 руб. | 0 руб. |
| Jan-20-2026 | 0.30 руб. | 0.96 руб. | 0 руб. |
| Dec-20-2025 | 0.29 руб. | 0.88 руб. | 0 руб. |
| Nov-20-2025 | 0.72 руб. | 0.2 руб. | 0 руб. |
| Oct-20-2025 | 0.52 руб. | 0.72 руб. | 0 руб. |
| Sep-20-2025 | 0.46 руб. | 0.24 руб. | 0 руб. |
| Aug-20-2025 | 0.79 руб. | 0.61 руб. | 0 руб. |
| Jul-20-2025 | 0.34 руб. | 0.89 руб. | 0 руб. |
Описание товара
Company Profile
Cangzhou Haider Pump Co., Ltd. has developed a variety of industrial pumps professional products manufacturers . Company research, production, sales and service in one, with the development, production of high-end industrial pumps mission, determined to become China's pump industry technology pioneer . Based on high-end, striving for Pioneer is the company's purpose. To improve the company 's quality system , high-quality R & D team , first-class technical workforce , sophisticated manufacturing equipment for product quality to provide a strong guarantee , and won the trust of customers .
Pump Co., Ltd. Cangzhou Haider forces to seek their own advantage in the development of the pump industry , innovation, and constantly improve the technological content of products, enhance the core competitiveness of enterprises. Company unity , full of youthful vigor , determined to science and technology , in good faith for the purpose of providing quality and excellence.
In addition the company also provides customers with high-quality professional pre-sale and after-sales service . Designed and manufactured according to user needs special requirements of pumps and pump products large contract maintenance business .
Cangzhou Haider Pump Co., Ltd. The main products are rotary disc pumps, gear pumps , magnetic gear pumps, magnetic drive gear pump , stainless steel gear pumps, gear pumps, gear pumps arc , arc gear pumps, high vacuum gear pump , rotary pump , centrifugal pumps , centrifugal pumps, self-priming centrifugal sewage pumps , self-priming centrifugal pumps, centrifugal heat conducting oil pump , air-cooled heat pumps centrifugal pumps and other industrial products , and is widely used in petroleum , chemical, shipbuilding, electric power, oil , food, medical , building materials, metallurgy and defense research and other industries .
The company provide you with free professional technical support on pumps, free to choose the right model for you, welcome your advice! Factory direct, erase the middle part, the lowest price, quality guaranteed! A cooperative lifelong friends!
ATTENTION:
Before ordering,please contact me.
Different materials and different prices.
Freight is alibaba automatically generated,we
generally transport by sea,Please contact
THANKS A LOT!!!
Specifications
1.Low noise ,Long service life ,
2.High efficiency ,Competitive price ,
3.Wide application

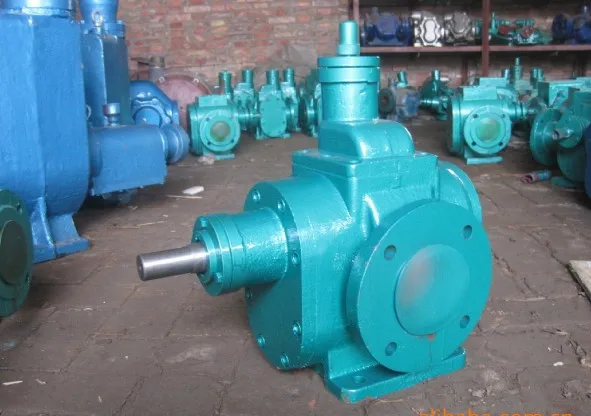

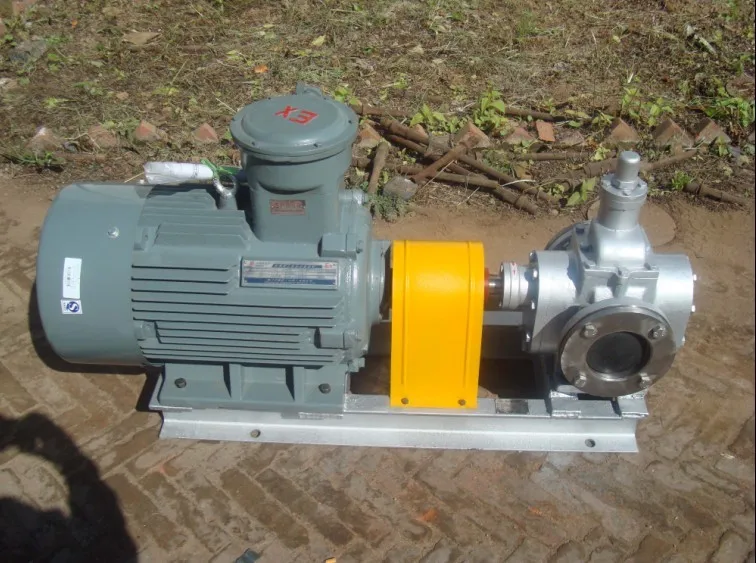

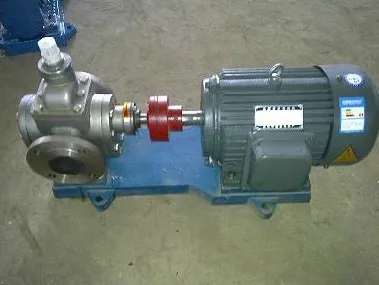

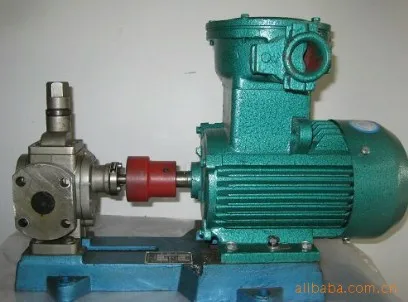

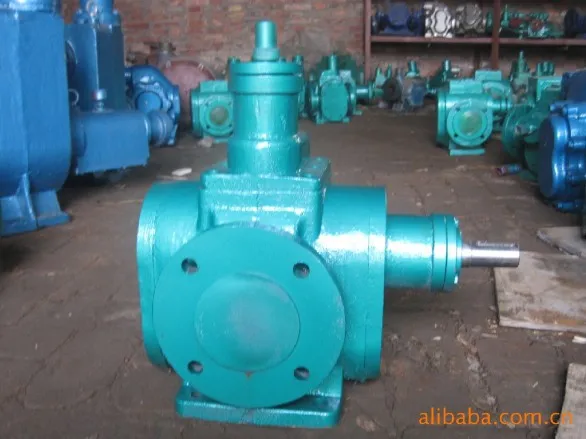

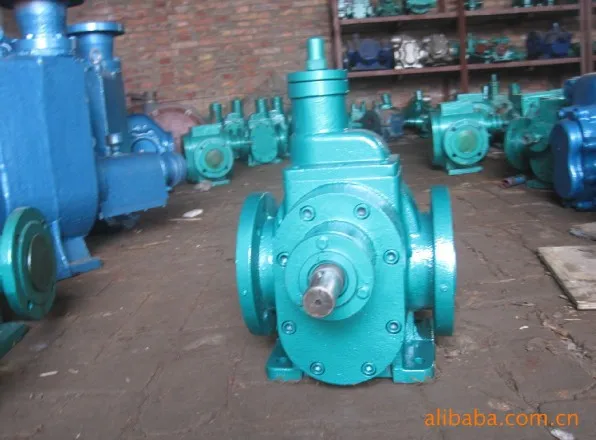

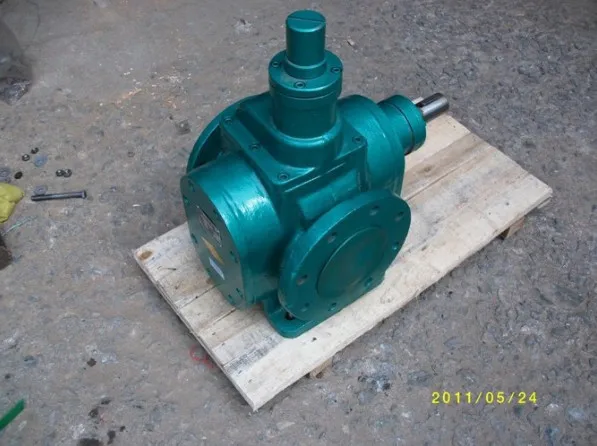

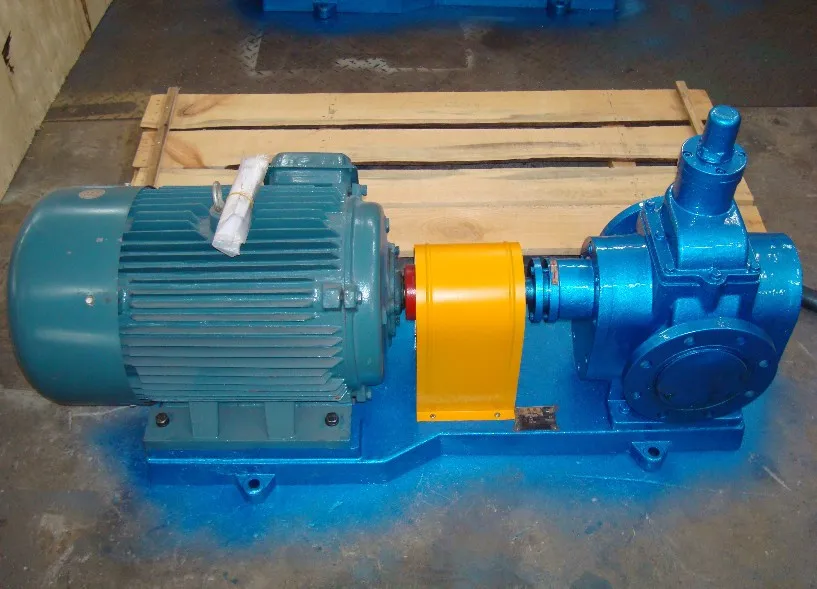

YCB series circular arc gear pump
1.Application
It applies to deliviering non-corrosive lubricating or equivalent liquid without solid particles and fibres at temperature below 300°C and with the viscosity of 5×10-6~51.5×10-3m2/s (5~1500cSt). It applies to hydraulic System, too.
Reducing the speed, the pump can delivery the liquid that viscosity can be up to 5×104 cSt.
2.Aplication Scope
1.)Transfer pump or booster pump in oil delivery system
2.)Fuel pump for delivery pressurization and injection in fuel supply system
3.)Hydraulic pump supplying hydraulic power in hydraulic system
4.)All industry fields as lubricating pump
3.Specification:
Capacity range: 10~1440 l/min
Pressure range: 0.3~2.5Mpa
Caliber range: 20~150mm
Power range: 0.75~30kW
Max medium temperature: 300°C
Material : Stainless steel OR Cast iron
Performance Parameters
| Model | Capacity | Speed | Exhaust | (NPSH)r | Efficiency | Motor | ||
| m3/h | Hz | Power | Model | |||||
| YCB0.6-0.6 | 0.6 | 910 | 0.6 | 5.5 | 32 | 50 | 0.75 | Y90S-6 |
| 1.0 | 1390 | 50 | 0.75 | Y80L2-4 | ||||
| 0.7 | 1130 | 60 | 0.75 | Y90S-6 | ||||
| 1.2 | 1710 | 60 | 0.75 | Y80L2-4 | ||||
| YCB0.6-2.5 | 0.6 | 910 | 2.5 | 7.0 | 70 | 50 | 1.1 | Y90L-6 |
| 1.0 | 1400 | 50 | 1.5 | Y90L-4 | ||||
| 0.7 | 1130 | 60 | 1.1 | Y90L-6 | ||||
| 1.2 | 1710 | 60 | 1.1 | Y90S-4 | ||||
| YCB1.6-0.6 | 1.6 | 910 | 0.6 | 5.5 | 42 | 50 | 0.75 | Y90S-6 |
| 2.5 | 1400 | 50 | 1.1 | Y90S-4 | ||||
| 1.9 | 1130 | 60 | 1.1 | Y90L-6 | ||||
| 3.0 | 1710 | 60 | 1.5 | Y90L-4 | ||||
| YCB1.6-2.5 | 1.6 | 940 | 2.5 | 7.0 | 71 | 50 | 2.2 | Y112M-6 |
| 2.5 | 1440 | 50 | 4 | Y112M-4 | ||||
| 1.9 | 1150 | 60 | 2.2 | Y112M-6 | ||||
| 3.0 | 1750 | 60 | 4 | Y112M-4 | ||||
| YCB3.3-0.6 | 3.3 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
| 5.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
| 4.0 | 1150 | 60 | 1.5 | Y100L-6 | ||||
| 6.0 | 1730 | 60 | 2.2 | Y100L1-4 | ||||
| YCB3.3-2.5 | 3.3 | 960 | 2.5 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
| 5.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
| 4.0 | 1170 | 60 | 4 | Y132M1-6 | ||||
| 6.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||

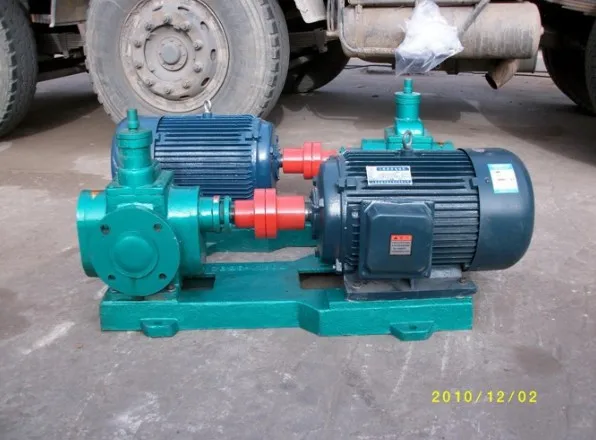

| YCB4-0.6 | 4.0 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
| 6.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
| 4.8 | 1150 | 60 | 2.2 | Y112M-6 | ||||
| 7.2 | 1730 | 60 | 3 | Y100L2-4 | ||||
| YCB4-2.5 | 4.0 | 960 | 2.5 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
| 6.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
| 4.8 | 1170 | 60 | 5.5 | Y132M-6 | ||||
| 7.2 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB8-0.6 | 8.0 | 960 | 0.6 | 5.0 | 61 | 50 | 3 | Y132S-6 |
| 12.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
| 9.6 | 1170 | 60 | 4 | Y132M1-6 | ||||
| 14.4 | 1750 | 60 | 5.5 | Y132S-4 | ||||
| YCB8-2.5 | 8.0 | 970 | 2.5 | 7.0 | 75 | 50 | 11 | Y160L-6 |
| 12.0 | 1460 | 50 | 15 | Y160L-4 | ||||
| 9.6 | 1170 | 60 | 11 | Y160L-6 | ||||
| 14.4 | 1760 | 60 | 15 | Y160L-4 | ||||

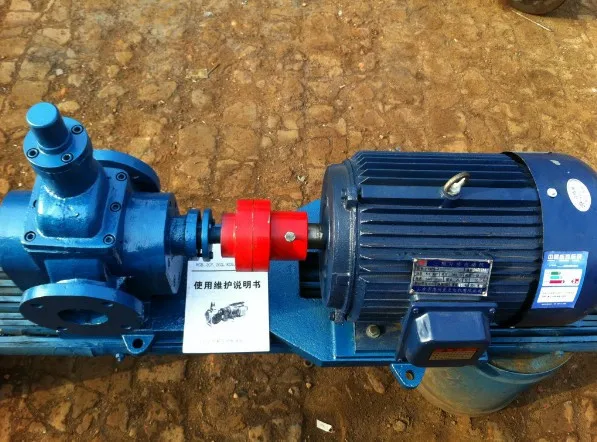

| YCB10-0.6 | 10.0 | 960 | 0.6 | 5.0 | 62 | 50 | 4 | Y132M1-6 |
| 15.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
| 12.0 | 1170 | 60 | 5.5 | Y132M2-6 | ||||
| 18.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB10-2.5 | 10.0 | 970 | 2.5 | 7.0 | 76 | 50 | 11 | Y160L-6 |
| 15.0 | 1470 | 50 | 15 | Y160L-4 | ||||
| 12.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| 18.0 | 1770 | 60 | 18.5 | Y180M-4 | ||||
| YCB20-0.6 | 20.0 | 970 | 0.6 | 5.0 | 68 | 50 | 7.5 | Y160M-6 |
| 24.0 | 1170 | 60 | 7.5 | Y160M-6 | ||||
| YCB25-0.6 | 25.0 | 970 | 0.6 | 5.5 | 69 | 50 | 11 | Y160L-6 |
| 30.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| YCB30-0.6 | 30.0 | 970 | 0.6 | 5.5 | 70 | 50 | 11 | Y160L-6 |
| 36.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| YCB40-0.6 | 40.0 | 970 | 0.6 | 5.5 | 72 | 50 | 15 | Y180L-6 |
| 48.0 | 1180 | 60 | 15 | Y180L-6 | ||||
| YCB50-0.6 | 50.0 | 970 | 0.6 | 5.5 | 72 | 50 | 22 | Y200L2-6 |
| 60.0 | 1180 | 60 | 22 | Y200L2-6 | ||||
| YCB60-0.6 | 60.0 | 1470 | 0.6 | 5.5 | 72 | 50 | 22 | Y180L-4 |
| YCB80-0.6 | ||||||||
Payment:
· Please pay within 3 days after auction.
· Please contact us for your payment if you have any problem.
Delivery details:
· Your item will be shipped within 48 hours in business days . If there's an exception, we will inform you.
· Buyer, as the importer, is responsible for paying the customs clearance cost or related TAX.
Terms of sale:
· Positive Feedback is our life. Before you leave a neutral or negative feedback, please contact us first to get a better solution. We care our valued customers. So if you have any problems please contact us immediately. Please give us the opportunity to resolve a problem. We understand the concerns and frustrations you might have and try our best to resolve the issues. Leaving neutral or negative feedback cannot solve the problems.
Contact us:
All communication is handled through emails and skype message. We strive to answer all emails as quickly as possible.![XE4OJA4QF5E)TL$]X4P[W{U](http://ae01.alicdn.com/img/pb/605/834/897/897834605_078.jpg)
