Описание товара
Semi flexible solar panel 50w 18vdc conjunction box in front or on back of panel with solar cable connectors 22% efficiency
High efficiency Flexible(bendable) solar panel
High efficiency bendable solar module adopts the highest efficiency cell in the world from USA, with efficiency up to 20% or highter,which enable 25-30% higher power generation than the conventional PV modules at the same size.
By adopting the back contact technique,the cell can be coated with the flexible materials and finally forms the high efficiency flexible solar panel.
This kind of solar panel can be widely used in the field of Electric Golf Car,Patrol Car,Travel Tourism Car,Yacht,Roof Power generation,Backpack,Tent and so on.
Technical Specification
|
Model No. |
BPS 32-50 |
|
Maximum Power at STC (Pmax) |
50W |
|
Optimum Operating Voltage (Vmp) |
18V |
|
Open - Circuit Voltage (Voc) |
20 V |
|
Optimum Operating Current (Imp) |
2.77A |
|
Short - Circuit Current (Isc) |
2.95A |
|
Cell Efficiency |
22% |
|
Operating Module Temperature |
-40 °C to +85 °C |
|
Maximum System Voltage |
1000 V DC (IEC) / 600 V DC (UL) |
|
Diodes |
1 by pass |
|
Power Tolerance |
-5/+5 % |
STC: irradiance 1000 W/m2, module temperature 25 °C, AM=1.5; Power measurement tolerance: ± 5%
Mechanical Characteristics
|
Solar Cell |
Mono-crystalline 62.5× 125 mm (5 inches) |
|
No. of Cells |
32 (4*8) |
|
Dimensions |
560mm*540mm*2.5mm |
|
Weight |
0.9 KG |
|
Front Glass |
3.2 mm (0.13 inches) tempered glass |
|
Frame |
PET |
|
Junction Box |
IP65 rated |
|
Output Cables |
TUV |
|
2.5 mm2 (0.10 inches2), symmetrical lengths (-) 900 mm (35.4 inches) and (+) 900 mm (35.4inches) |
|
|

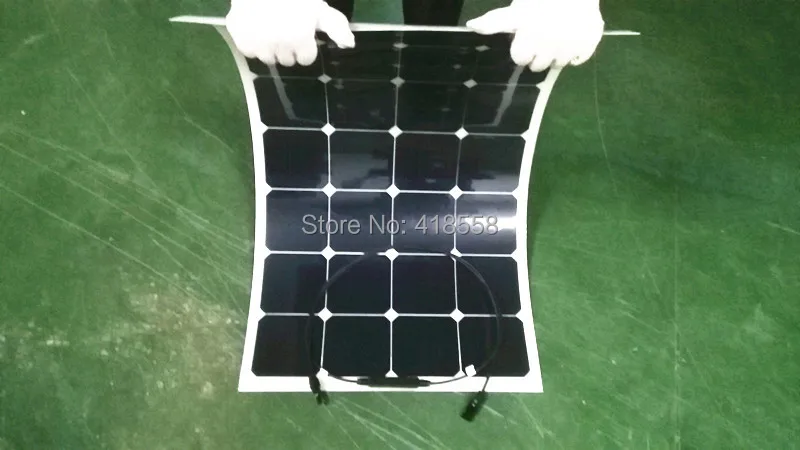

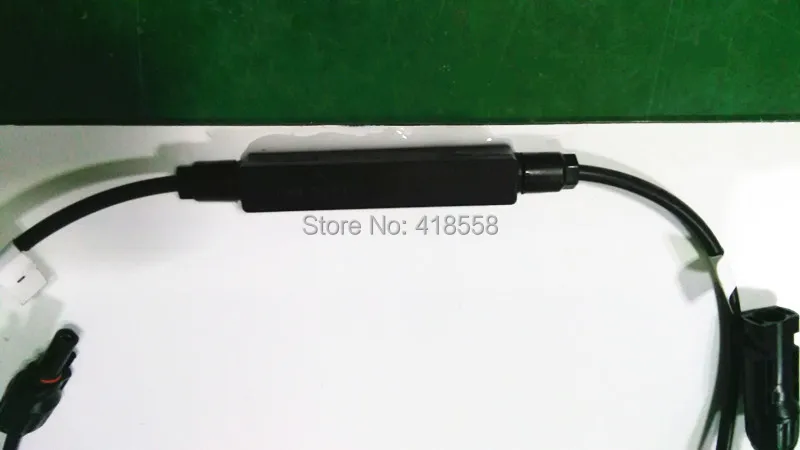

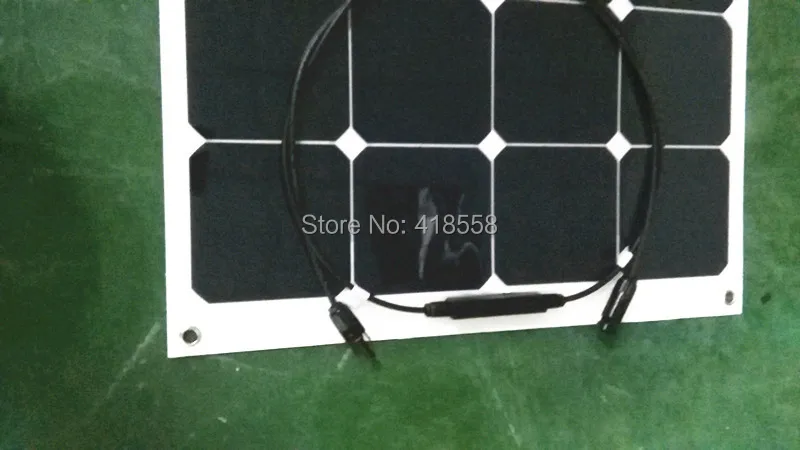

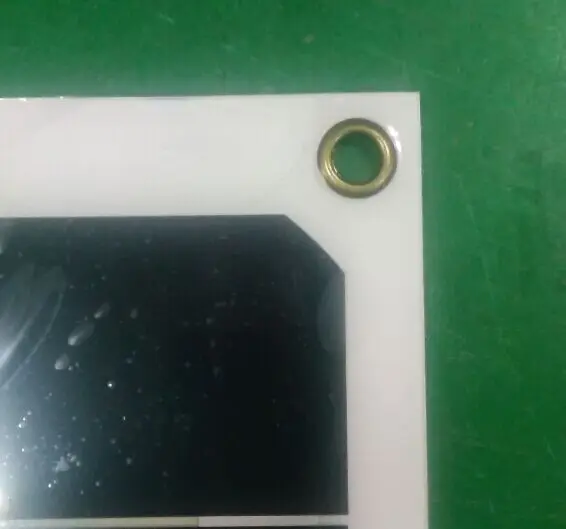

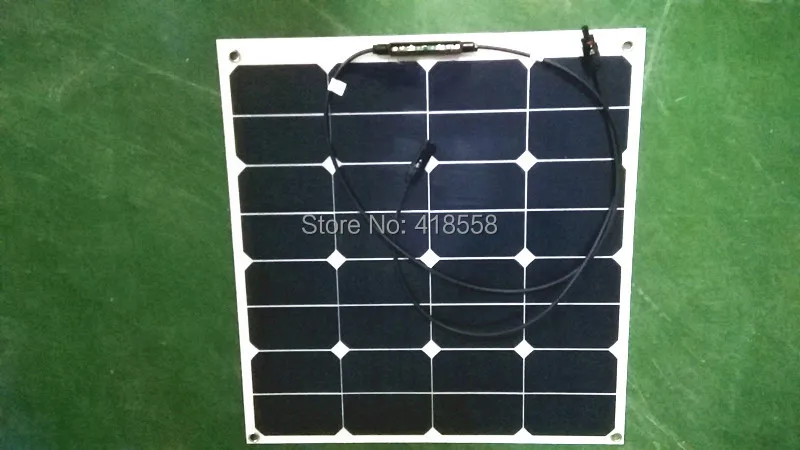

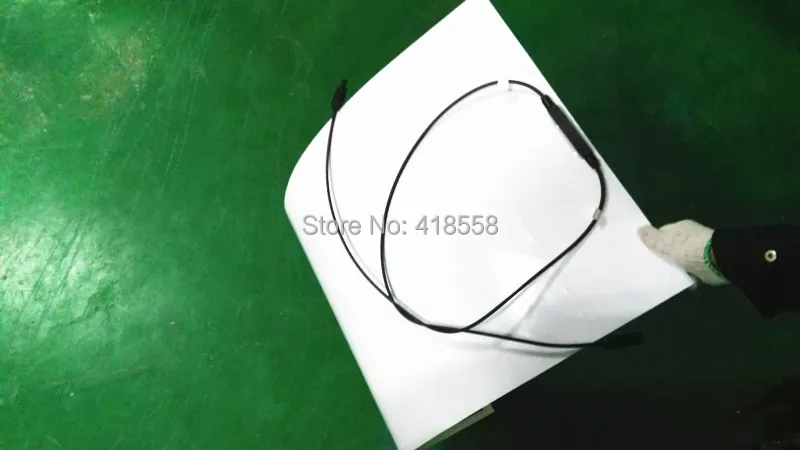

Photo Reference
n
flexible solar pane
Flexible solar panel from China factory directly
flexible solar panel
Flexible solar panel are designed to provide a powerful charging solution for batteries and conform to almost any surface.
Unlike other ‘flexible’ products, these use high-efficiency monocrystalline cells that produce more power per square foot than any other flexible panel on the market.
An impermeable lamination coats the entire module, allowing it to contour and flex against curved areas, eliminating any need for custom mounts.
The panel can be affixed by adhesive or screw mounting options and grommets are an added bonus for ease-of-installation.
The thin, lightweight module can also be sewn into canvas, making it a truly versatile solar module.
The Solar Flex panels are aerodynamic and DURABLE - a virtually unbreakable solar battery charger for RVs, boats and long-haul trucks.
Factory Workshop
