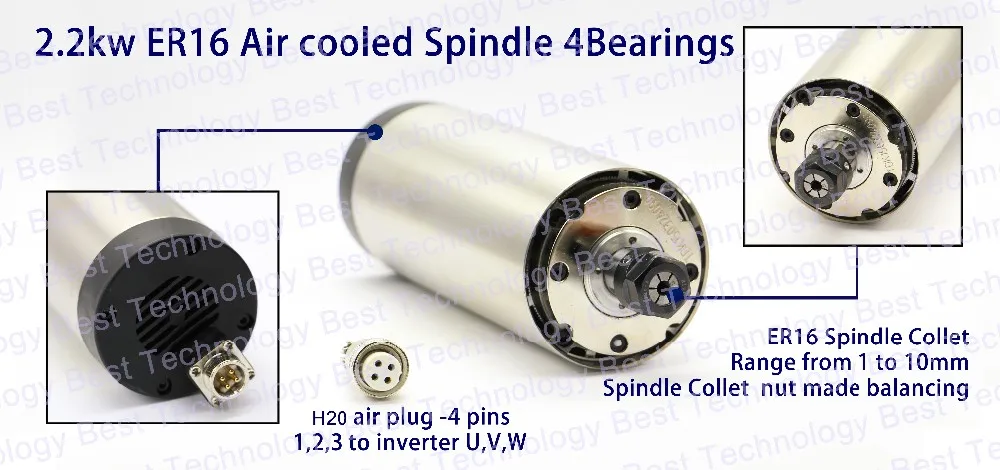

1 PCS X 220VAC 2.2KW ER16 Air Cooled Spindle Motor  New Design

New Design:

Basic parameters :

• Size: 80x203mm(Middle body diameter:80mmxLength:203mm)

• Material: Stainless steel jacket, copper coil.

• Speed Ways: Through the inverter output voltage and adjust the operating frequency can be achieved 0-24000 stepless.

• Cooling: Air cooling mode

• Power Interface: Optional H20 waterproof air plug, there are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground

• Power: 2.2KW

• Voltage: 220V

• Current: 10 A

• Frequency: 0-400Hz

• Speed: 0-24000rpm

• Coaxial degree: 0.0025mm

• Runout Off: 0.01mm

• Diameter(mm): 80mm

• Bearing Type: 4 bearing,P4 grade ,Angular contact bearings, 2X7004C P4 DT and 2X7002C P4 DT

• Collet: ER16

• Air Cooling ER16 collet chunk

• Grease Lubrication

• Main Application: Engraving for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.

Preparations before use

• Spindle working environment temperature is usually -10  ~ 40 .

• Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.

Use correctly

• Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.

• Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.

• During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.

• Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

Care and maintenance :

• Spindle frequency power supply connected rated voltage, frequency should be consistent with the technical parameters of the electro-spindle, spindle speed can be adjusted to change the frequency, and voltage is proportional to the change.

• Spindle being not used, the application of compressed air to blow the pipes static coolant.To prevent rust, clogging water holes. Spindle appearance should be oiled. Plus the shaft protection device, put in a dry place.

• To replace the spindle bearings, certain professional and technical personnel should be replaced.Supporting special tools, bearings should be replaced fully cleaned without removing the stator coils.

Advantage:

• Bearing is P4 grade,2×7004C P4 DT &2×7002C P4 DT,increase spindle life

• High speed,high torque,low noise,low price.

• High precision,runout  off less than 0.01mm.Coaxial degree less than 0.0025mm.

• Shipment within four days,there is no fake tracking number,make sure that you receive time.

Spindle production process

• Spindle from the production - assembly - test, and finally the perfect packaging .
• We will 100% guarantee security to the hands of the guests.

Shipping terms:

Our products are sold worldwide.

But if your country is more difficult to transport goods, please contact us in advance to confirm shipping cost.

Payment:

We accept paypal credit, bank transfer, western union etc.

Payment must be made within 7days calendar days of the auction end time.

Problem and Feedback:

Please give us the opportunity to resolve any problem, we will try our best to help you.

Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.

Thanks very much in advance.

 Refund:

If you are not satisfied with our package like the products is damage, please do not sign it and contact us immediately.

If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.

Note:

We can produce the product according to our customer's design.

If you need something is very special, please contact us about it.
