Complete set milling lathe drill machine dro digital readout with linear scales

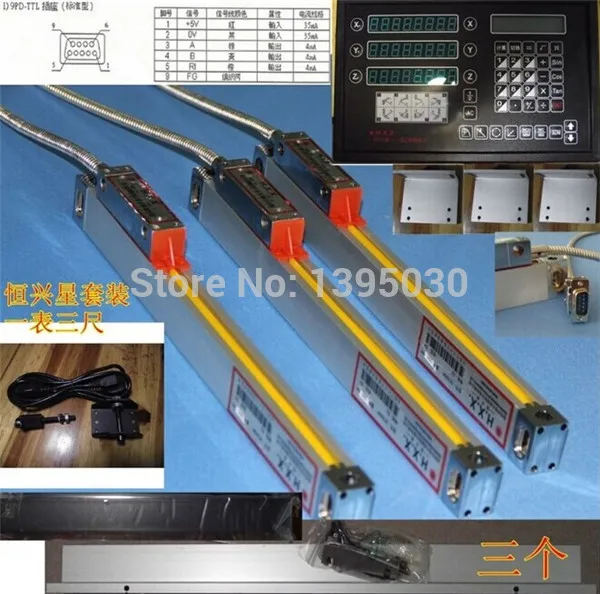

photo showing:

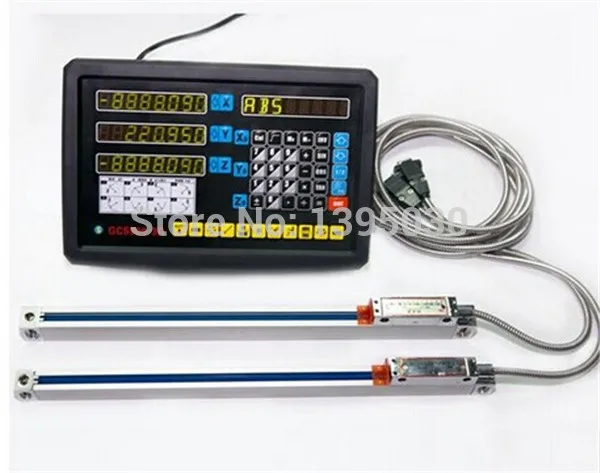

Name: milling/ lathe/ drill machine 3 axis digital readout /dro

Resolution: 5um (0.005mm)

Length: Travel(50-1000mm), Overall length(180mm-1130mm)

Function

1:zero clearing
  2:reset
  3:mm/inch mode
  4:ABS/INC coordinate conversion
  5: 200sets sub datum
  6:power off Memory;
  7:center of1/2
  8:liner error compensation
  9:sleepping mode
  10:Clear 200 sets Sdm datum;
  11:ABS/INC mode
  12:calculator
  13:drilling of circumference
  14:drilling of oblique line
  15:machining of inclined plane
  16:machining of circular arc
  17:lathe function(match)
  18:Rectangular lumen gradual processing
  19:digital filtering

   20:vibration filtering

   21:R fucntion

Application:
1. Coordinate measuring machine
2. Profile projector
3. Microscope
4. Video measuring machine
5. Movement control
6. Position monitoring
7. Coordinate measurement
8. X-Y working table monitor
9. Mechanical control
10. Other area of linear scale and rotary encoder

Advantage:
1,the high precision digital readout is specialization design,elegant appearance ,high speed of numeation,multy function

2,Aluminum ally ,spray plastic appearance ,dustproof and wear-resisiting,good shield.
3,independent power,widely used,high stabilization,capacity of resisting disturbance well
4, the power source and the signal have a good capacity of resisting disturbance,durable keyboard,easy to change
5,the catalogue is multi-role .
6,automatic tool compensation for both X and Y

Note:this machine is with English Manual.
