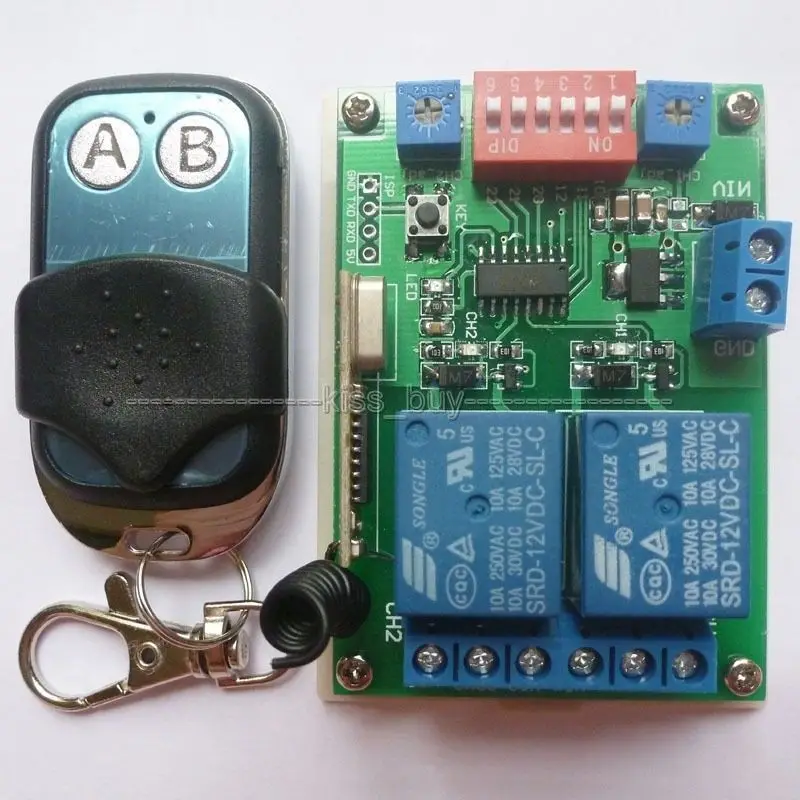

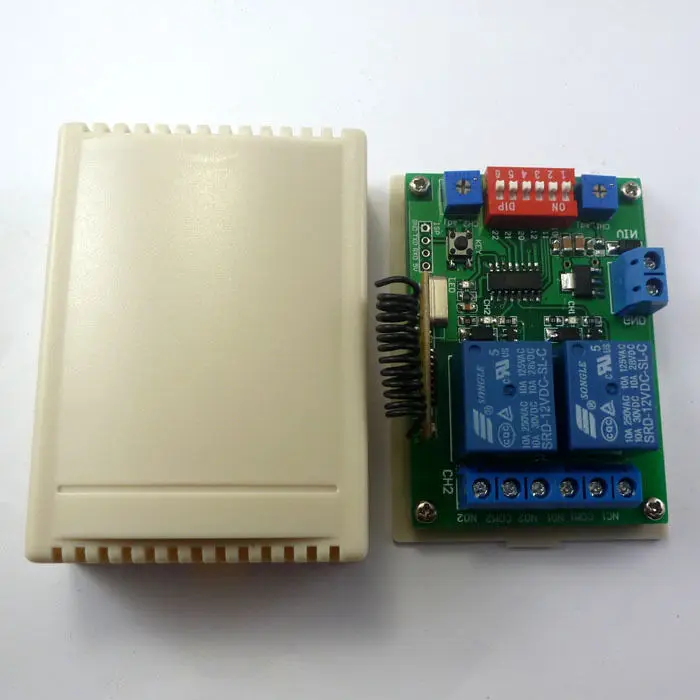

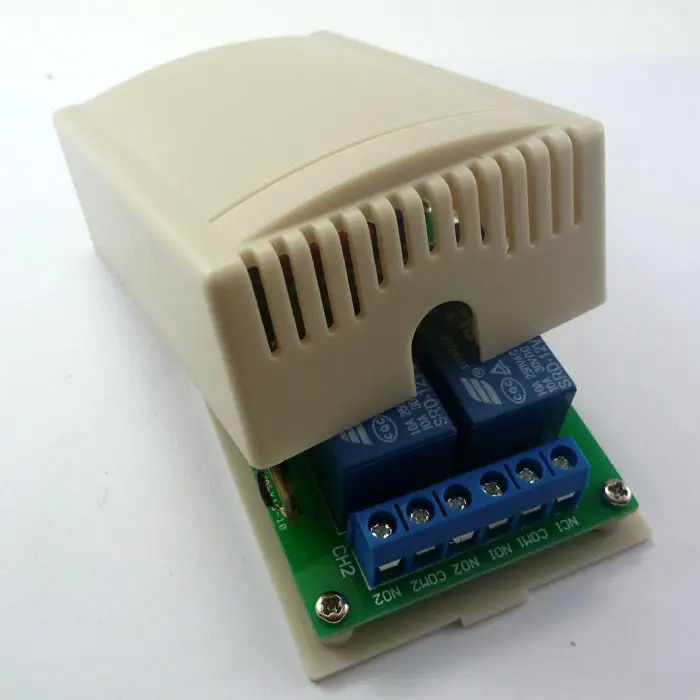

433MHZ DC 12V 2Ch Multifunction Wireless Controller Timer Delay Relay RF Switch & EV1527 ASK OOK Remote control | Электронные

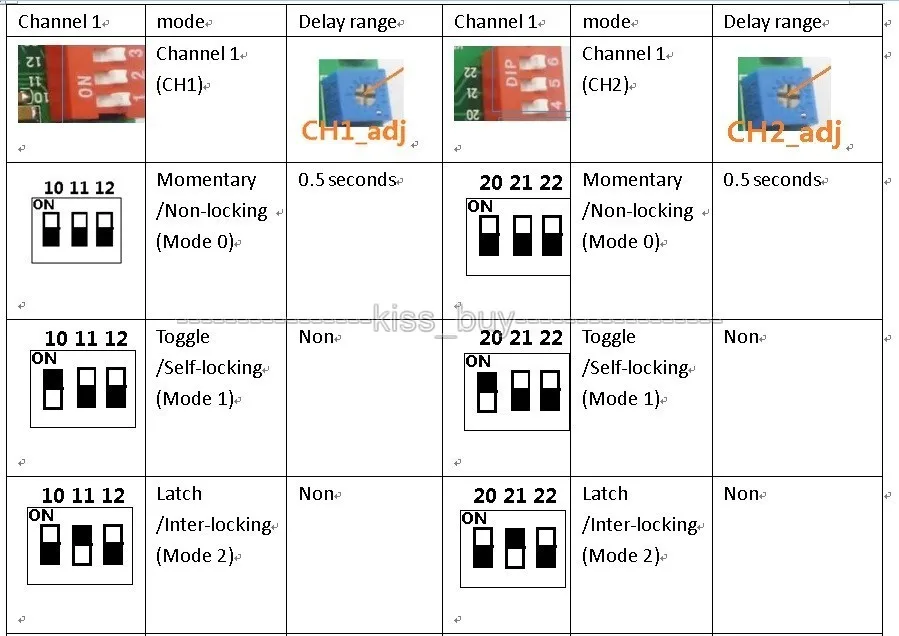

1: Each Channel have 4 working mode : Delay time , Toggle mode (singnal Self-locking), Momentary Mode ( singnal None-locking) , Latch mode (singnal Inter-locking) .

2: working mode of each channel need to be set individually , 2 channels can have 10 different working mode combinenatoin ,

Detail :

one channel is Momentary , the other channel is Latch ;

one channel is Momentary , the other channel is Momentary ;

one channel is Momentary , the other channel is Toggle ;

oone channel is Momentary , the other channel is Delay time ;

one channel is Toogle , the other channel is Delay Time ;

one channel is Toogle , the other channel is Latch ;

one channel is Toogle , the other channel is Toggle ;

one channel is Latch , the other channel is Delay Time ;

one channel is Latch , the other channel is Latch ;

one channel is Delay time , the other channel is Delay Time ;

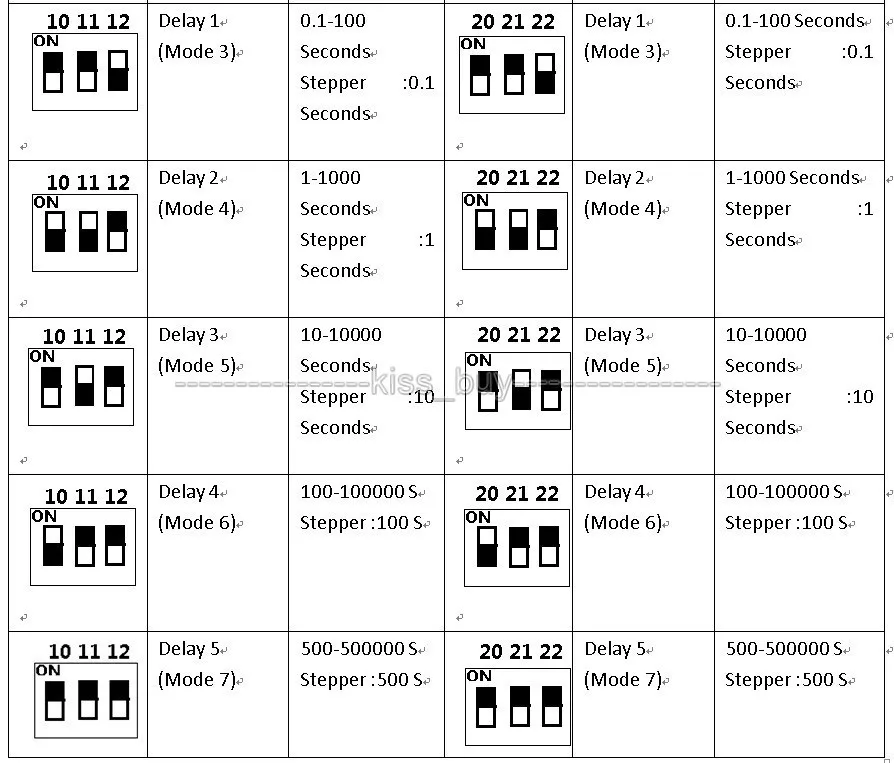

3: Time of each delay mode is proportionally increased. For example, you want to channel 1 to delay 50 seconds , 500seconds and 5000 seconds, you can first seting channel 1 is set to "delay 1 (Delay Mode 3), turn around (CH1_adj) adjustable resistance, so that channel 1 delay 50 seconds; if the mode is set to "delay 2 (mode 4), the delay time becomes 500 seconds, if the mode is set to" delay 3 (mode 5), the delay time becomes 5000 seconds

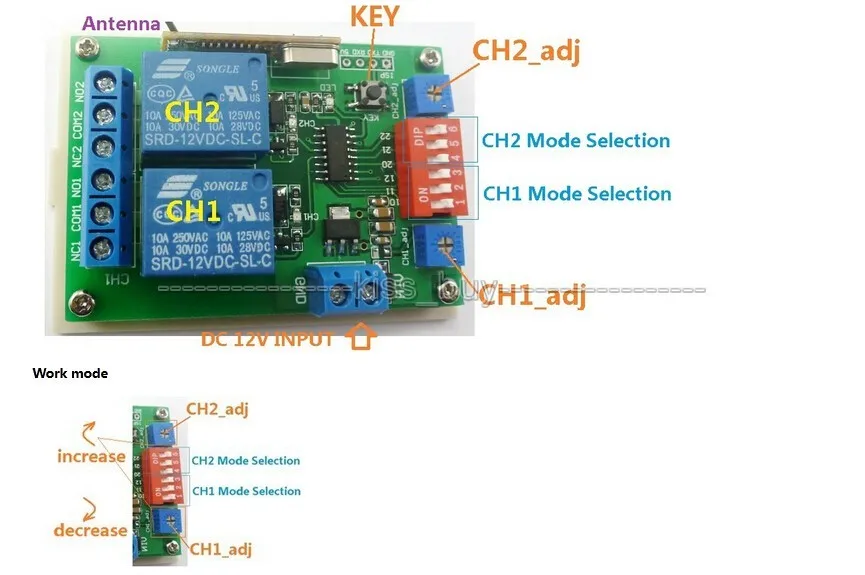

4 With a suitable screwdriver and gently rotating adjustable resistance;Clockwise, increasing delay,Counter-clockwise, the delay is reduced

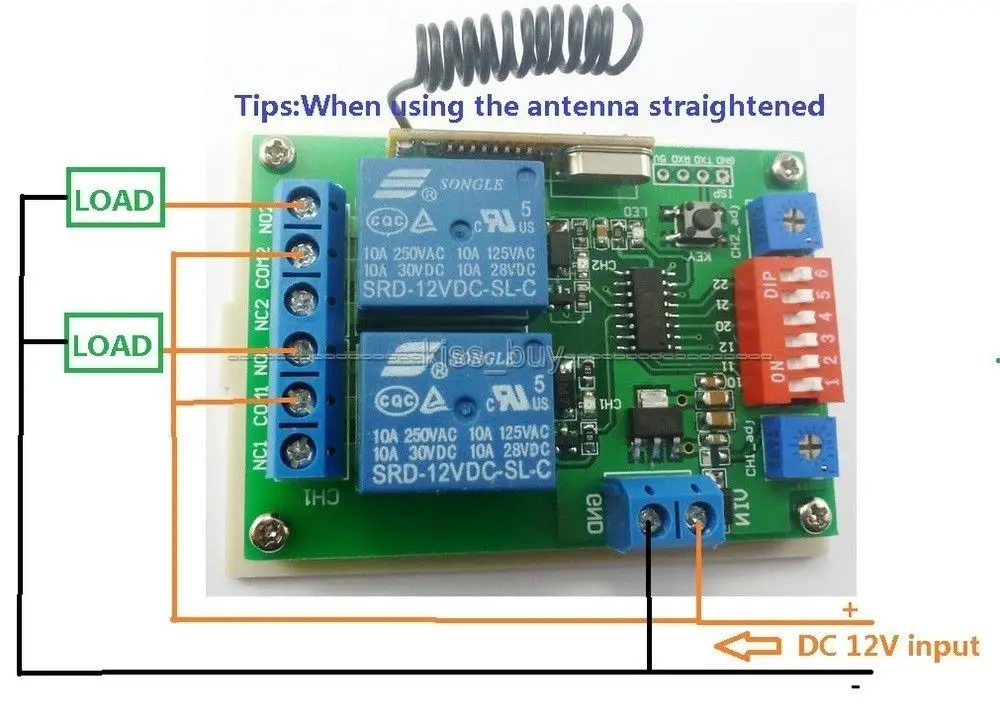

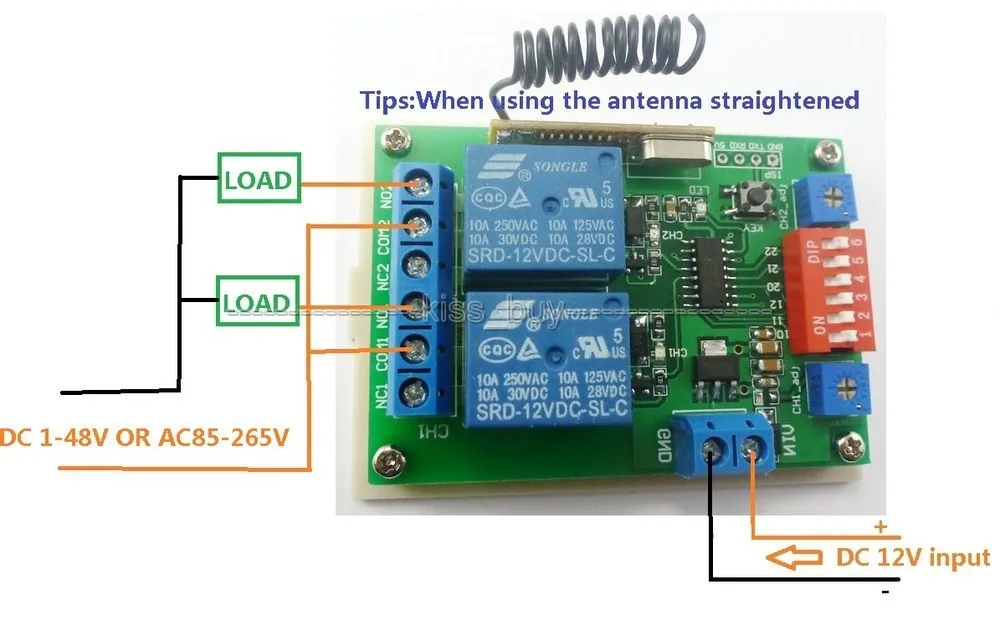

NO : Relay normally open contact

COM : Relay common contact

NC : Relay normally closed contact

Open : NO connection COM, NC disconnect COM

Close : NO disconnect COM, NC connection COM

Momentary : Press the Transmitter button A, the receiver Channel 1 is Open, release button A; the receiver Channel 1 is Close, the same as B ,Every Channel is Independent ;

Toggle : Press transmitter button A for 1 time , the receiver Channel 1 is Open, press button A again, the receiver Channel 1 is Close, the same as B. Every Channel is Independent ;

Latched : Press transmitter button A, the receiver Channel 1 is Open, the Channel 2 is Close.

Press transmitter button B, the receiver Channel 2 is Open, the Channel 1 is Close.

Delay : Press the Transmitter button A, the receiver Channel 1 is Open,After a set time delay, the receiver Channel 1 is Close, the same as B ,Every Channel is Independent;

If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close

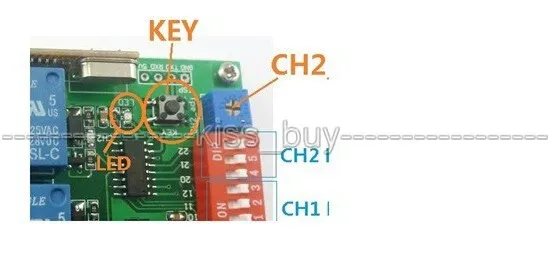

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes

Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)

Step 1 (into the learning mode): Press the button (about 1 second), LED off;

Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value

Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values
