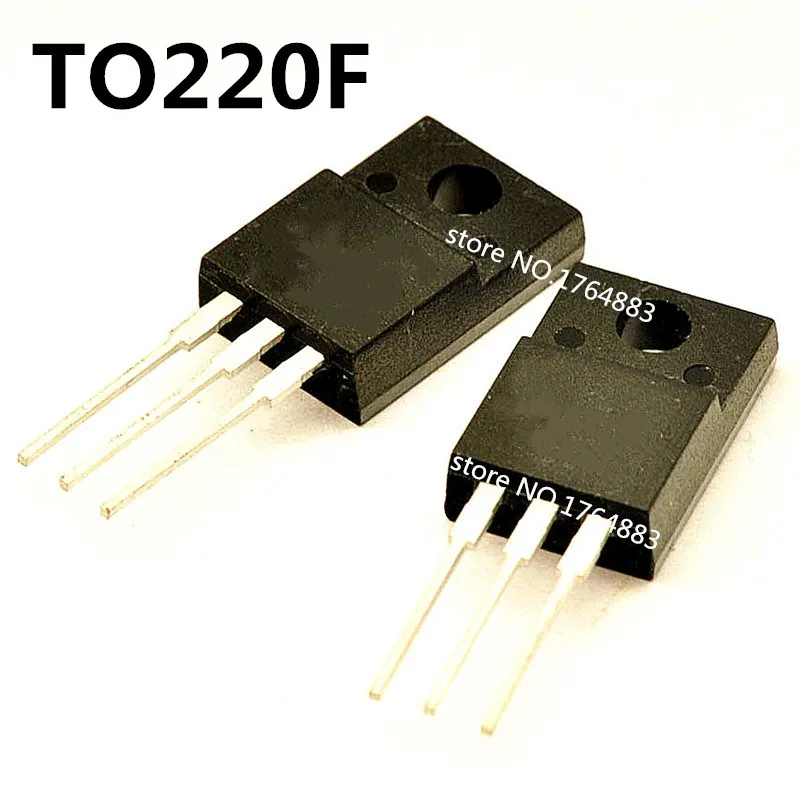

Original New 5PCS/ FDPF18N20FT FQPF3N80 TF8N50 AOTF8N50 KF8N60 TO-220F TO220F | Электроника
Mini 125Khz RFID Module - Pre-Soldered Antenna winder | Электроника

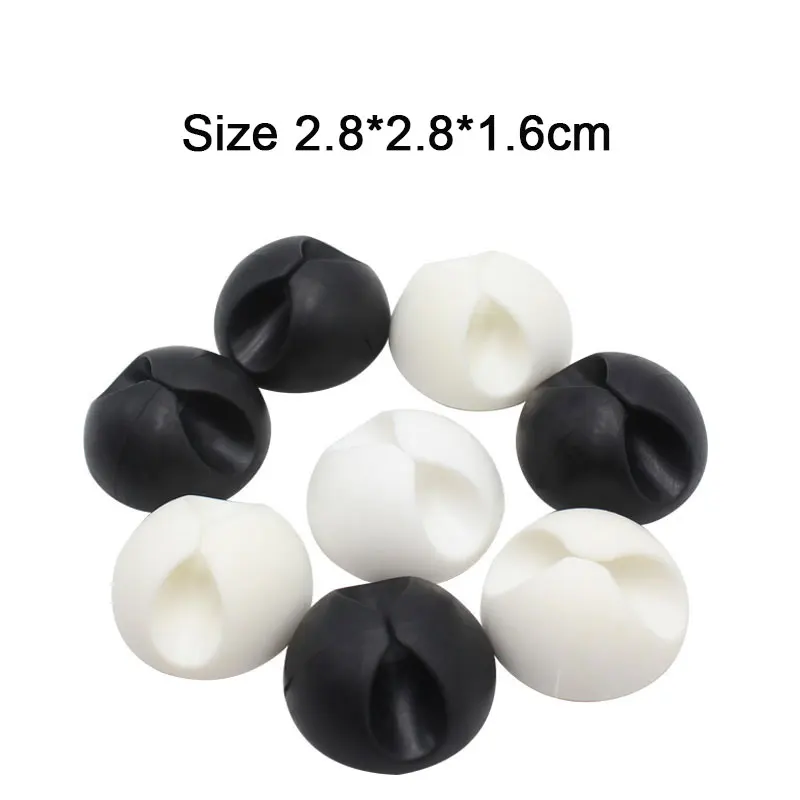

20 шт./лот белый/черный Жесткий Силиконовый органайзер для кабелей зажим кабеля
254,07 - 275,68 руб. / набор
MITA Store
Магазина MITA Store работает с 13.01.2017. его рейтинг составлет 83.33 баллов из 100. В избранное добавили 169 покупателя. Средний рейтинг торваров продавца 4.3 в продаже представленно 206 наименований товаров, успешно доставлено 100 заказов. 24 покупателей оставили отзывы о продавце.
Характеристики
HD H.264 SDI video encoder WiFi for Live Streaming to VLC Media Server Xtream Codes | Электроника
История изменения цены
*Текущая стоимость 17 284,00 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 20568.47 руб. | 21596.11 руб. | 21082 руб. |
| Feb-19-2026 | 20395.79 руб. | 21415.47 руб. | 20905 руб. |
| Jan-19-2026 | 17111.62 руб. | 17967.74 руб. | 17539 руб. |
| Dec-19-2025 | 20049.20 руб. | 21051.2 руб. | 20550 руб. |
| Nov-19-2025 | 17457.43 руб. | 18330.49 руб. | 17893.5 руб. |
| Oct-19-2025 | 19704.14 руб. | 20689.34 руб. | 20196.5 руб. |
| Sep-19-2025 | 19531.98 руб. | 20508.91 руб. | 20019.5 руб. |
| Aug-19-2025 | 19358.21 руб. | 20326.21 руб. | 19842 руб. |
| Jul-19-2025 | 19185.71 руб. | 20144.56 руб. | 19664.5 руб. |
Описание товара
Product Description

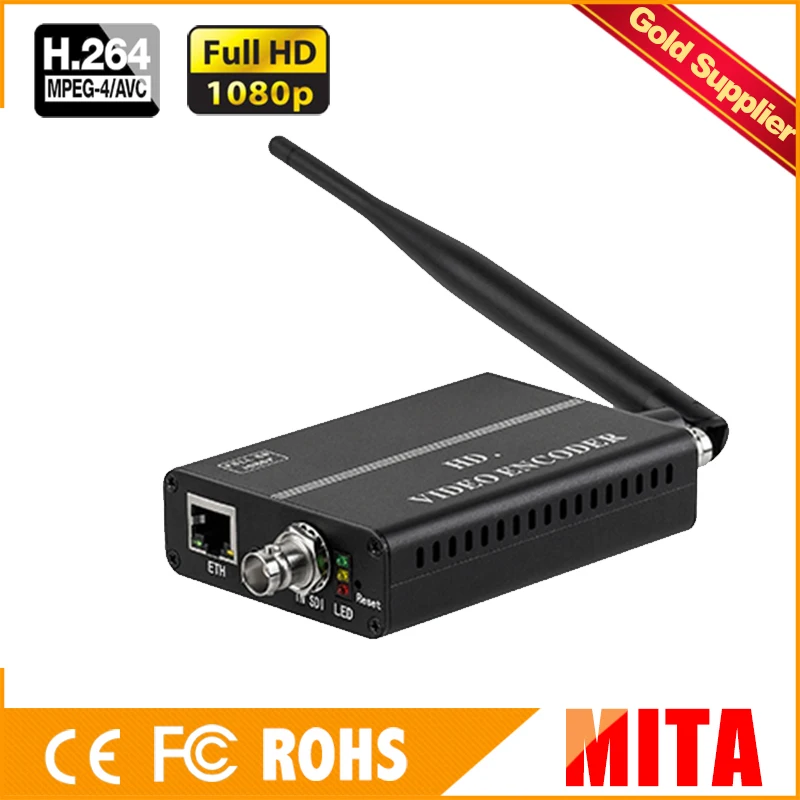

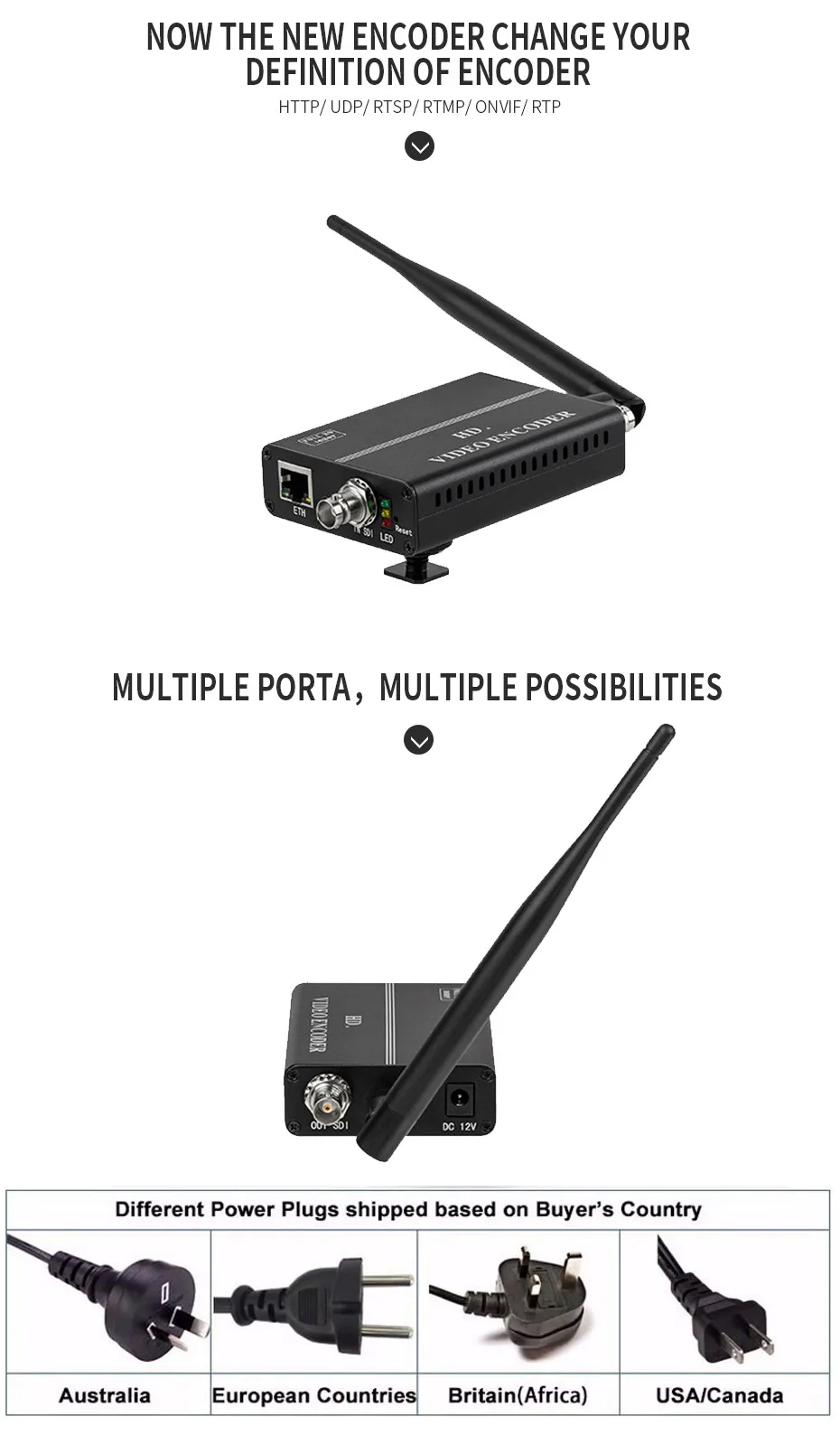

H8114W Mini SDI+WIFI Encoder is a professional audio and video encoding product, which supports 1-channel audio and video capture, HD or SD SDI , 1 channel 3.5MM independent audio interface acquisition with SDI loop output.
supports WIFI, dual streaming H.264 encoded output format, audio MP3, AAC formats. The code rate can be freely adjusted according to the need. The device is highly integrated, cost-effective. Support HTTP / RTSP / RTP / RTMP / UDP /ONVIF /HLS transport protocols etc. Support for external audio input.
It is easy to install, plug-play, and there is no computer hardware compatibility issues.
Characteristics
● The embedded hardware encoding,support WIFI
● Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
● Support multiple devices display on a computer at the same time
● Support network directly connected, don’t need match HD collection card.
● Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
● The network interface uses a 100M full duplex mode
● 1 channel SDI input, 1 channel 3.5MM independent audio interface input, support HDMI / VGA / CVBS convert to SDI input, support audio gain
● Support SD SDI input and support up to 720P, 1080P HD video input
● Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support Blue-ray
● Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
● Support Main TS stream and the sub TS stream use in different network protocols for transmission (Multi-rate multi-protocol support)
● Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
● Video packaging: A mode: FFMPEG, B mode: VLC
● Support streaming resolution output settings custom
● Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
● Support streaming add watermark (OSD), XY axis, the font can be set;
● Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
● Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
● Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
● Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
● Support coding without video signal; Complete the setting effect immediately, don’t need to restart
● Support one-key recovery of the default configuration
● Support set-top box decoder
● The low power consumption design
Specifications
| Product model | MT4-SDI-H8114W | |
| Input | 1 SDI input, 1 3.5MM channel audio input | |
| Output | 1 channel IP signal output | |
| Video | Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i And other conventional resolution |
| Coding standard | H.264 | |
| Coding level |
H.264 Baseline Profile H.264 Main Profile H.264 High Profile |
|
| Encoded size | 640*360~1920*1080（Can customize） | |
| Video bit rate | Rate control: CBR/VBR 16KBIT/S~12MBIT/S | |
| Video frame rate | 30/60 | |
| OSD | Character, images | |
| Audio | Input selection | 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain |
| Audio coding | AAC/MP3 | |
| Audio bit rate | 64Kb/s~384Kb/s | |
| Sampling rate | 32000、44100 ,48000etc | |
| IP Output | 1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol | |
| System | Network protocol | Supports HTTP, RTSP, RTMP, UDP,HLS multicast, unicast |
| Configuration management | Support IE configuration, remote upgrade | |
| Manual | Power supply | 12V~2A |
| Power consumption | 5W | |
| Size | 103mm * 70mm * 25mm(length*width*height) | |
| Operating temperature | -20℃+ 60℃ | |
| Working humidity | <90%，Non-condensing | |
| Weight | 0.18KG | |
| Our company reserves the right to adjust the product parameters, if you have any questions please contact us. | ||
