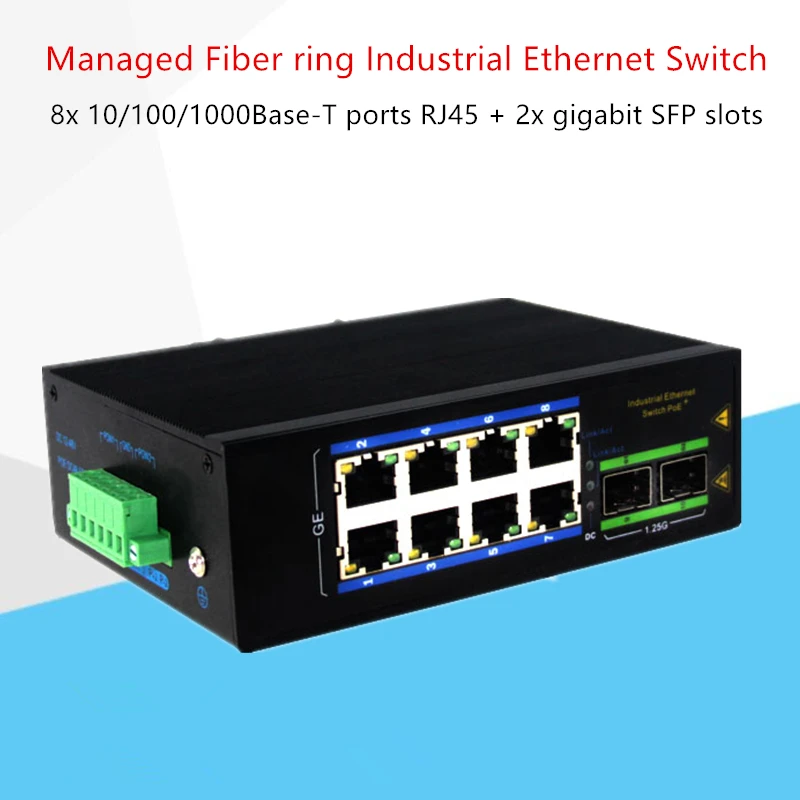

Управляемый волоконно-кольцевой Промышленный Коммутатор Ethernet 8x1 0/100/1000base-t порты

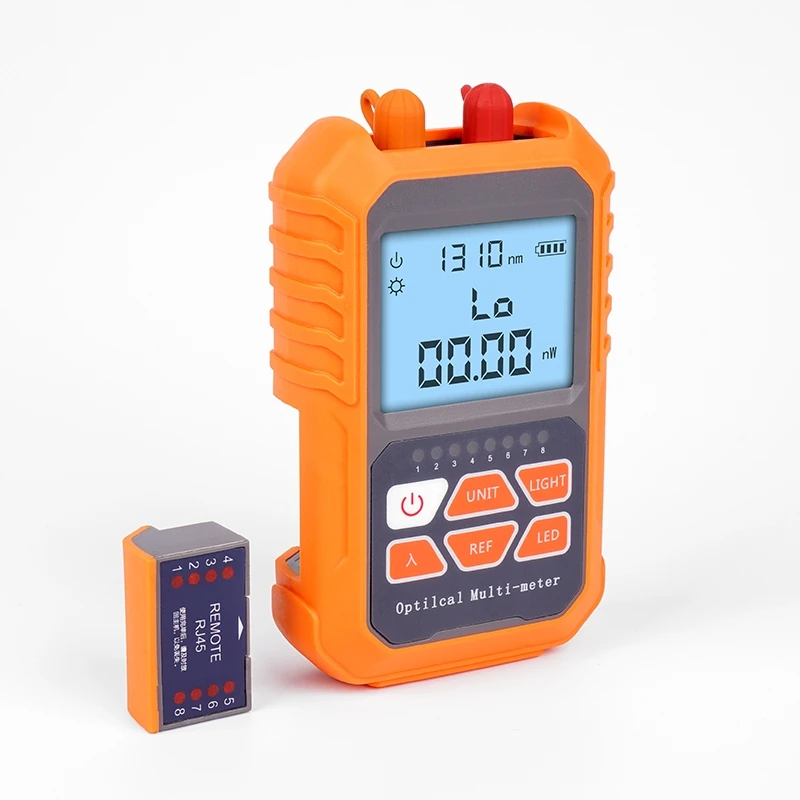

4 в 1 оптический измеритель мощности Визуальный дефектоскоп 5 км красная
Комплект оптического волокна DEBAOFU FTTH конструктор для связи с оптическим волокном
432,10 руб.
4 м SC/-MTRJ дуплексный многомодовый MTRJ для SC/UPC оптоволоконный соединительный кабель
776,92 руб.
Цифровой и аналоговый ТВ-сигнала анализатор DVB-C/C2 DVB-T/T2 DVB-S/S2 спутниковый S7200 ( ATSC
250 618,00 руб.
Ericssom RDH90154/1 фотография Бесплатная доставка RDH90155/1 одинарный режим RDH90156/1 RDH9010270/1 |
100% Original new HUAWEI HG8342R 1GE+3FE+1TEL GPON FTTH FTTB FTTX Optical Network Terminal English firmware |
US $24.20
Характеристики
Original Huawei OLT MA5683T with 2*SCUN 2*X2CS 2Ports 10GE Uplink Card 2*PRTE 1*H805GPFD16 GPON Ports Card(C+ SFP) | Мобильные
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 0.65 руб. | 0.41 руб. | 0 руб. |
| Feb-19-2026 | 0.36 руб. | 0.37 руб. | 0 руб. |
| Jan-19-2026 | 0.32 руб. | 0.63 руб. | 0 руб. |
| Dec-19-2025 | 0.65 руб. | 0.6 руб. | 0 руб. |
| Nov-19-2025 | 0.20 руб. | 0.49 руб. | 0 руб. |
| Oct-19-2025 | 0.88 руб. | 0.62 руб. | 0 руб. |
| Sep-19-2025 | 0.58 руб. | 0.51 руб. | 0 руб. |
| Aug-19-2025 | 0.11 руб. | 0.45 руб. | 0 руб. |
| Jul-19-2025 | 0.4 руб. | 0.68 руб. | 0 руб. |
Описание товара

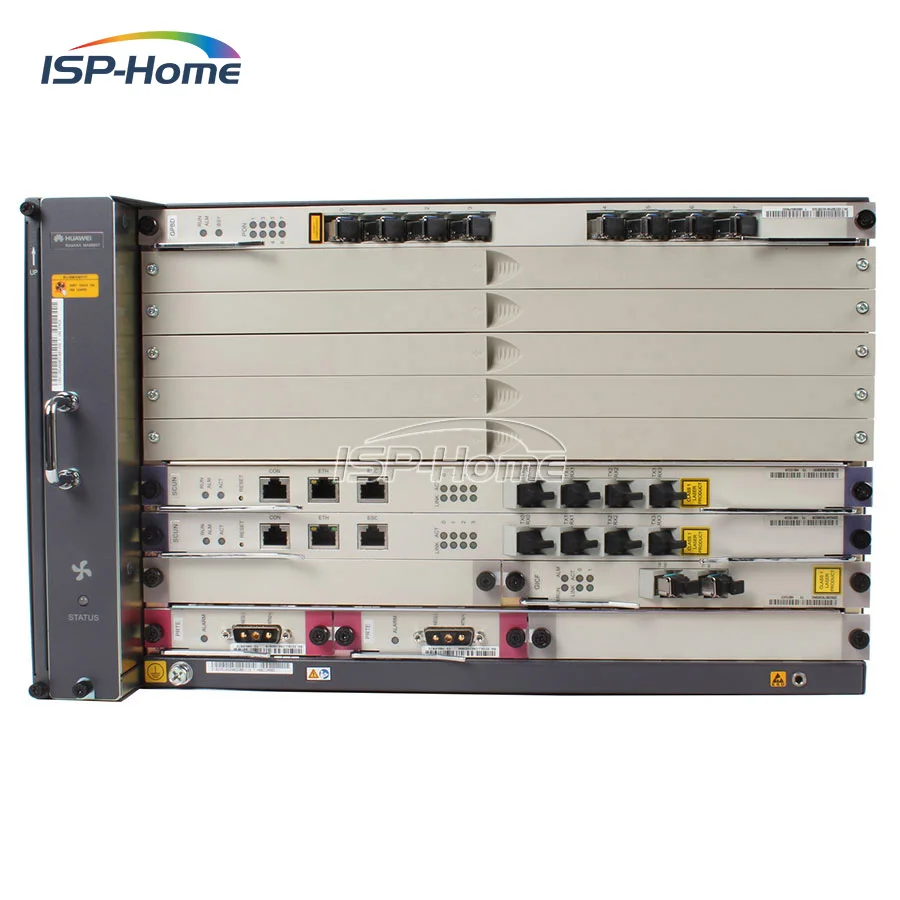

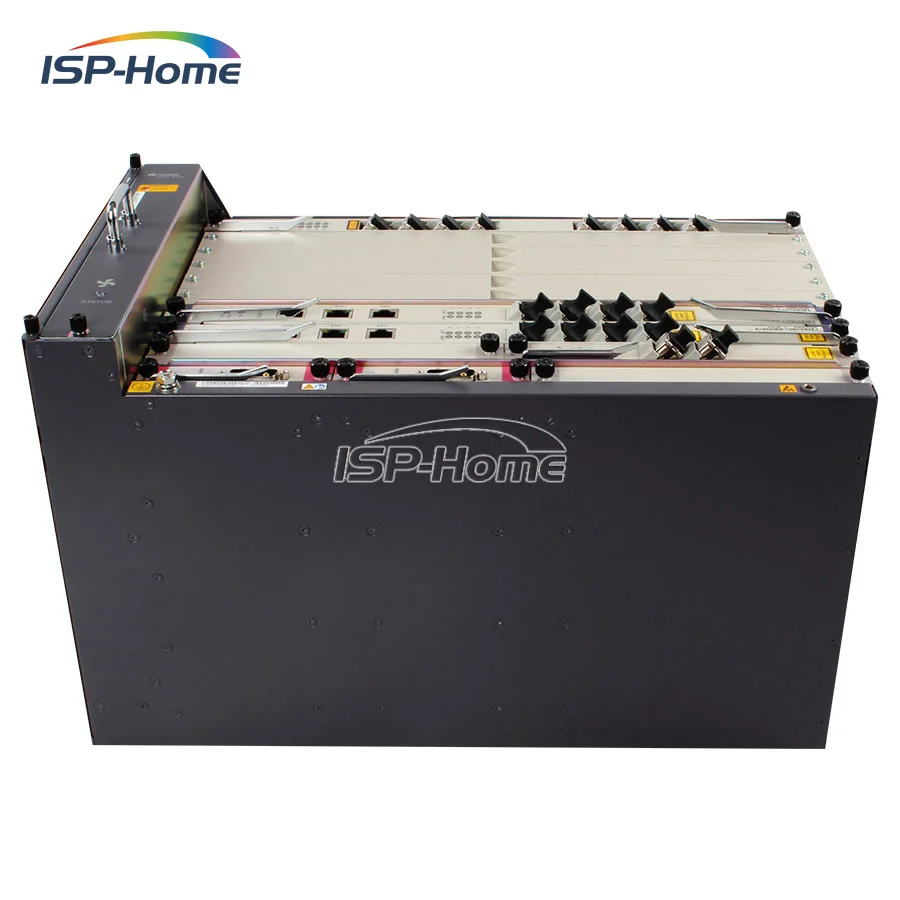

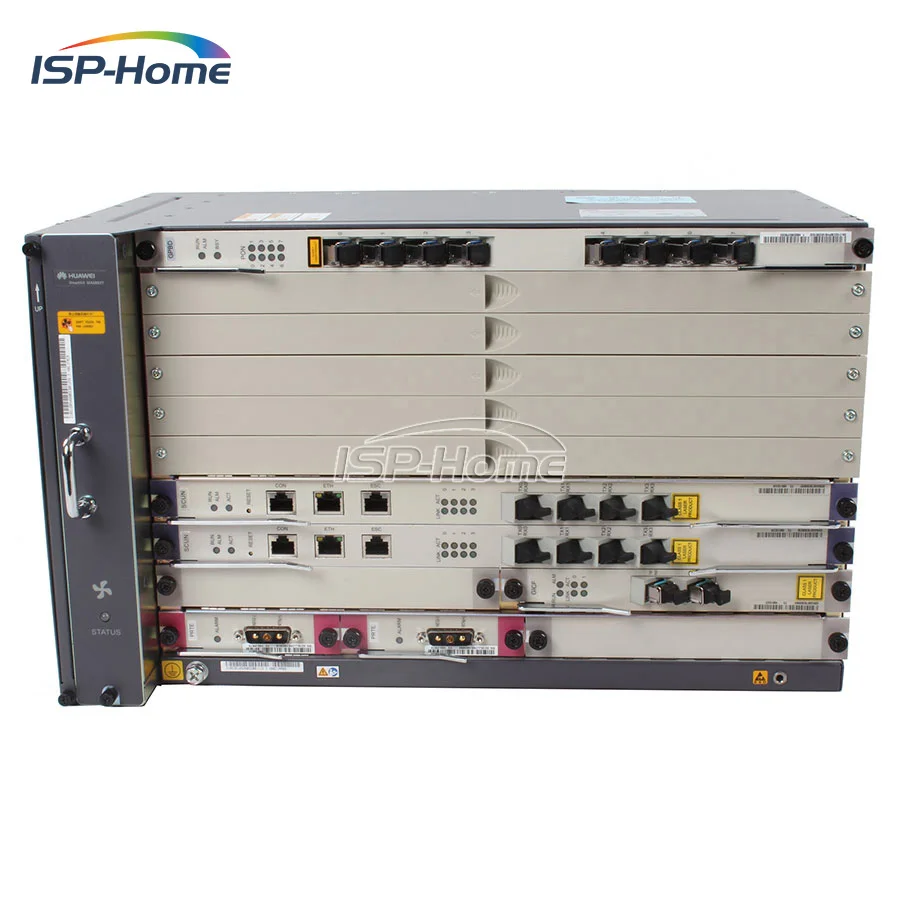

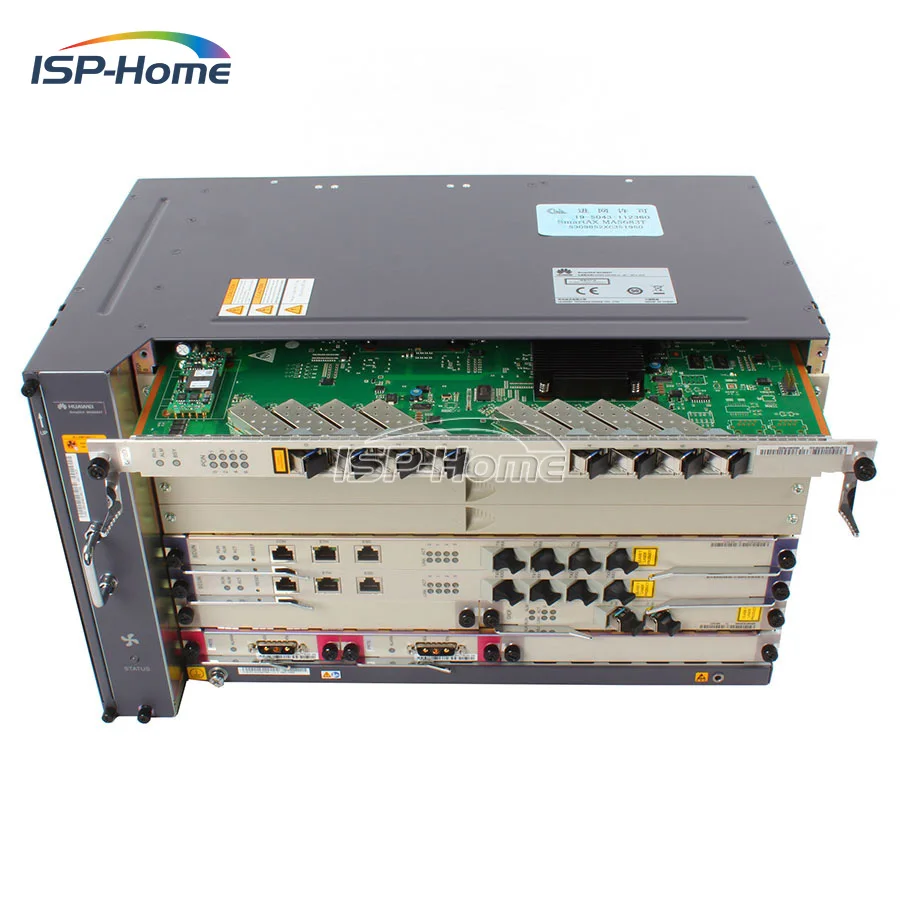

Original Huawei OLT MA5683T with 2*SCUN, 2*X2CS 2-Ports 10GE Uplink OLT Card with SFP+ Module, 2*PRTE, 1*H805GPFD 16-Port GPON Port Board with 16C+ SFP)
1.How to choose GPON Service Board for Huawei OLT?
Calculate how many GPON subscribers will be connected. Generally, OLT supports 1:128 splitting ratio, but 1:64 or even less splitting ratio actually have been used by most customers. How many GPON Boards are needed to connect the number of subscribers: for GPBD (each GPBD Board can provide 8 GPON port), the quantity of subscribers dividing by 64*8, then you can get the quantity of GPBD boards; while for GPFD (each GPFD Board can provide 16 GPON port), the quantity of subscribers dividing 64*16, and then you get the quantity of GPFD boards.
Available PON Service Board of Huawei OLT MA5680T/MA5683T/MA5600T/MA5603T from ISP-Home:
GPBD:8-port GPON OLT Interface Board
GPBH:8-port Advanced GPON OLT Interface Board
GPFD:16-Port GPON OLT Interface Board
EPSD:8-Port EPON OLT Interface Board with 8pcs PX20+ SFP Module
2. How to choose Uplink Board for Huawei OLT?
You can choose GE or 10G optical or base-T port as uplink. We will provide free optical transceiver for the uplink board if they are optical based, also you may consider dual uplink boards design to improve reliability;
Available GPON Service Board of Huawei OLT MA5680T/MA5683T/MA5600T/MA5603T from ISP-Home:
GICF:2 1000Base-X Port Interface Card
GICG:2 10/100/1000Base-T Port Interface Card
X2CS:2 10G SFP+ Port Interface Card

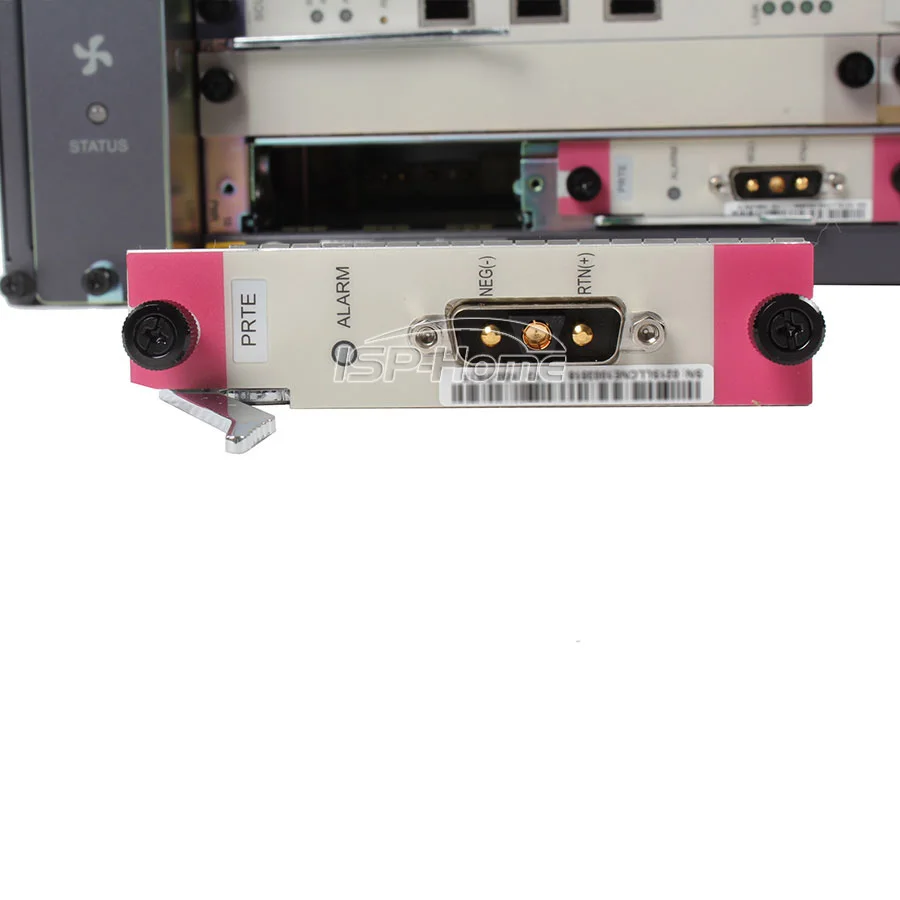

3. Power Board: PRTE DC Power Board for Huawei OLT
Choose PRTE as Power Board, for MA5600T/MA5680T/MA5603T/MA5683T, there is only DC power board and dual power board is quite common, as many customers donrsquot have -48V DC power, in that case a telecom level AC to DC converter(EPS30-4815AF)will be required, which is also available from ISP-Home. If it is MA5608T, then you can choose either AC or DC;
4. Main Control Board: SCUN Super Control Board for Huawei OLT
Choose SCUN as Main Control Board, dual main control board is quite common;
Huawei optical access pure OLT are available as model MA5680T, MA5683T and MA5608T, compare list as below:
| Item | MA5680T (IEC) | MA5683T | MA5608T |
|
Dimensions (W x D x H), excluding mounting brackets |
442mmtimes275.8mmtimes441.7mm (Height:10U) |
442mmtimes283.2mmtimes263.9mm (Height:6U) |
442 mm x 244.5 mm x 88.1 mm (Height:2U) |
| Power | ndash48V DC power input | ndash48V DC power input |
ndash48V DC power input or 110/220V AC power input |
| Board configuration |
2 slots for control boards 14 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards. |
2 slots for control boards 6 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards. |
2 slots for control boards 2 slots for service boards 1 slots for the power interface board. |
|
Maximum number of GPON ports in a subrack |
224 | 96 | 32 |
|

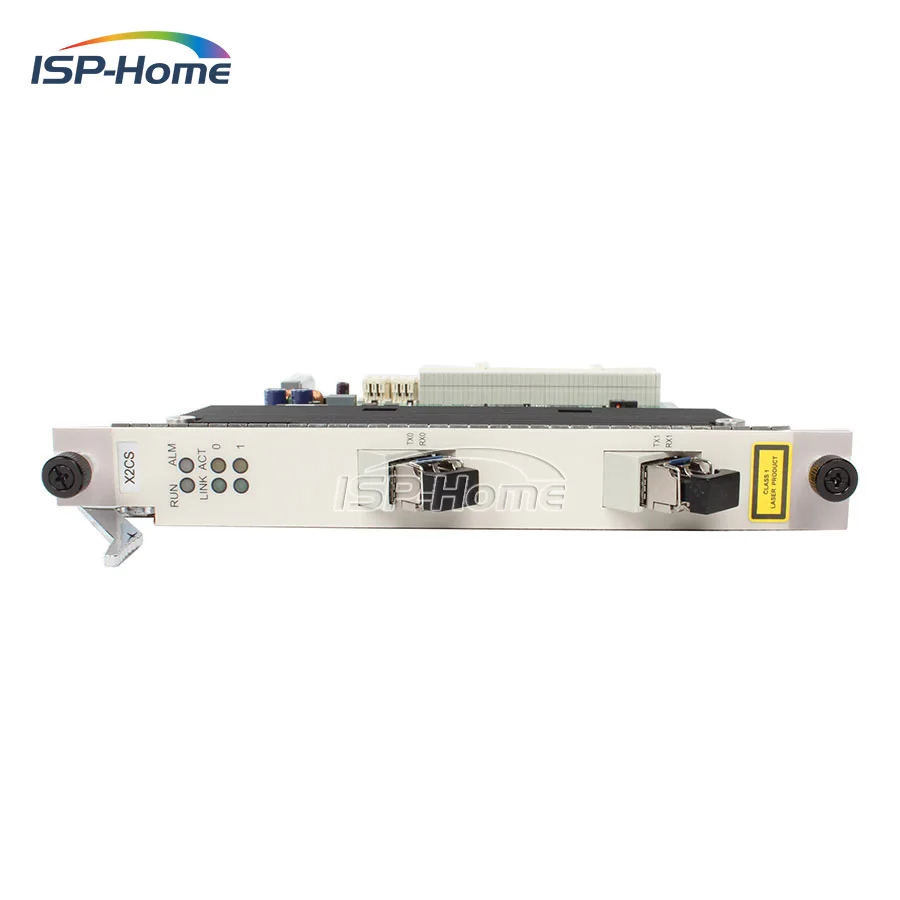

2 Pieces X2CS, 2-Ports 10GE Uplink OLT Card with SFP+ Module

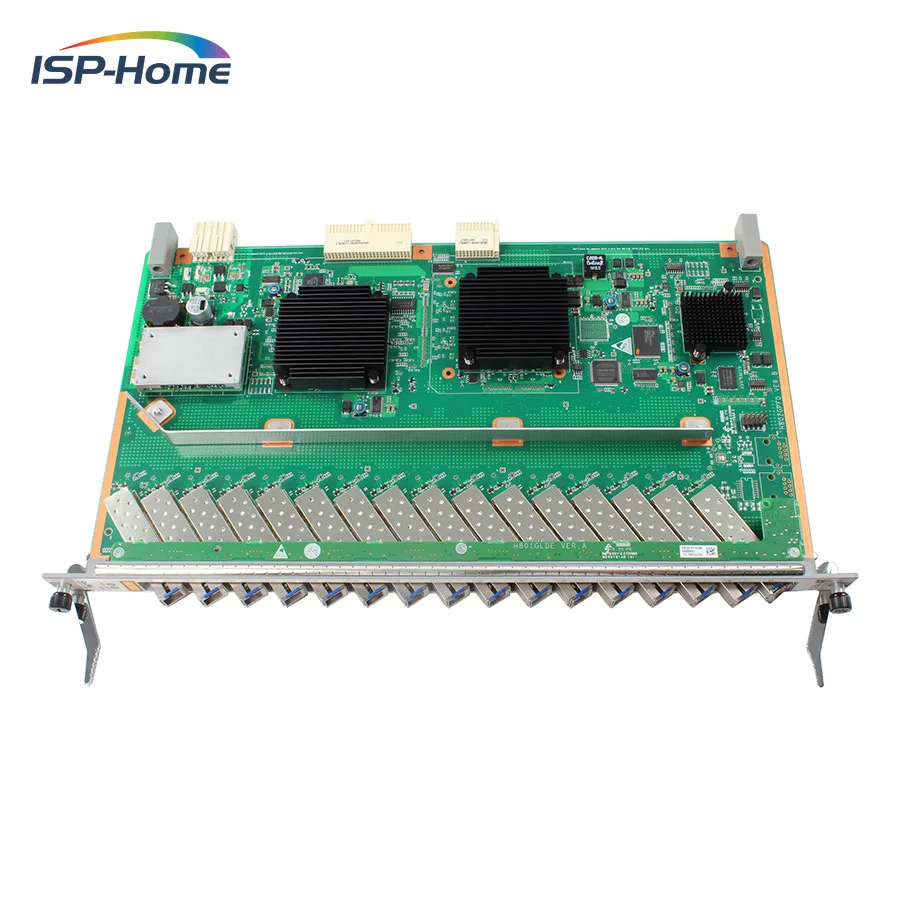

1 Piece GPFD 16-Port GPON Board with 16pcs C+ SFP Module
|
Please kindly note,

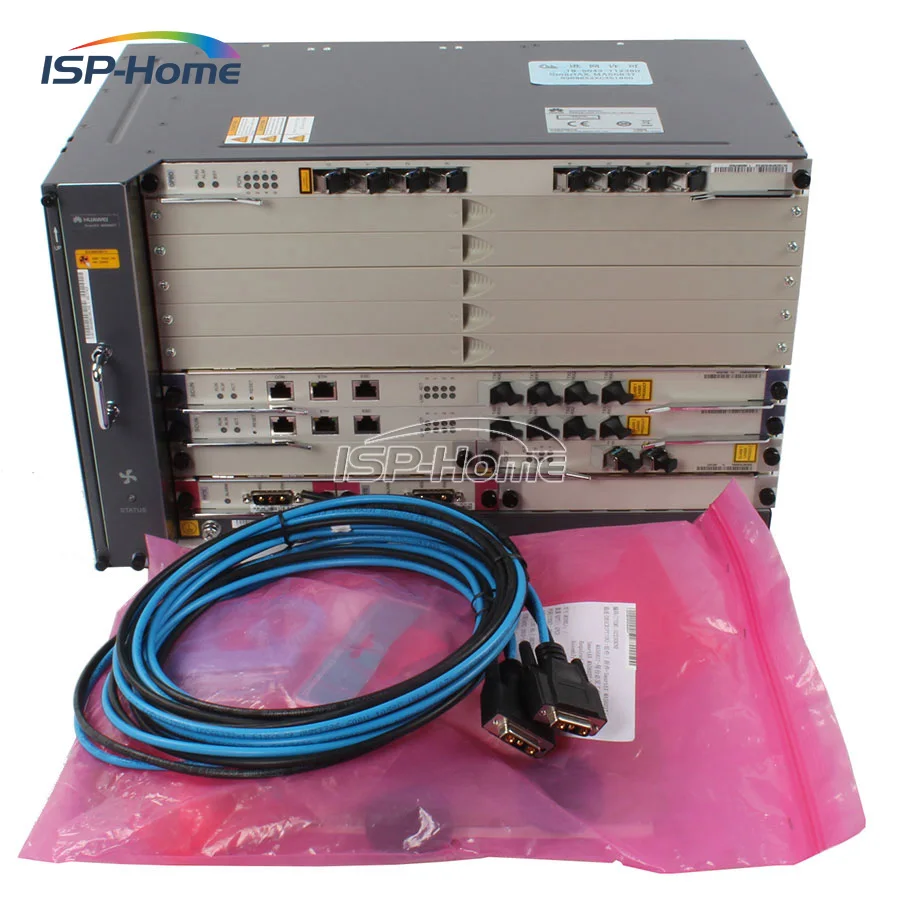

1. The goods will be send by DHL within 7 days 2. The MA5683T comes with 2*SCUN Main Control Board, 2*X2CS 2-Ports 10GE Uplink OLT Card with SFP+ Module, 2*PRTE Power Board, 1*H805GPFD 16 GPON Ports Service Board with 16pcs C+ SFP Modules 3. If you have any questions, please do feel free contact sales@isp-home.com
