Good price 15 inch lcd TV monitor full kits support HT15X23-110 | Электроника
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-20-2026 | 0.42 руб. | 0.62 руб. | 0 руб. |
| Feb-20-2026 | 0.87 руб. | 0.75 руб. | 0 руб. |
| Jan-20-2026 | 0.45 руб. | 0.86 руб. | 0 руб. |
| Dec-20-2025 | 0.61 руб. | 0.24 руб. | 0 руб. |
| Nov-20-2025 | 0.76 руб. | 0.25 руб. | 0 руб. |
| Oct-20-2025 | 0.33 руб. | 0.82 руб. | 0 руб. |
| Sep-20-2025 | 0.50 руб. | 0.56 руб. | 0 руб. |
| Aug-20-2025 | 0.37 руб. | 0.56 руб. | 0 руб. |
| Jul-20-2025 | 0.36 руб. | 0.51 руб. | 0 руб. |
Описание товара

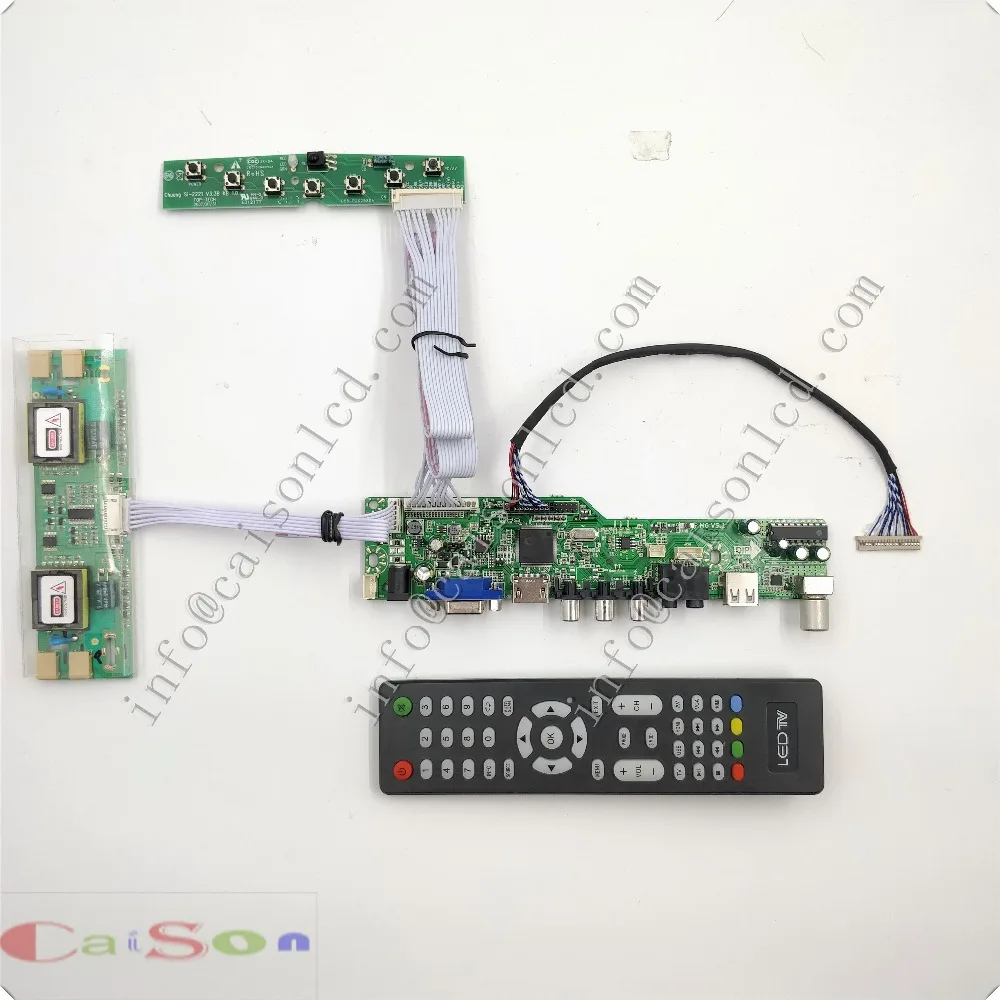

15 inch lcd TV monitor full kits support HDMI/AV/VGA/AUDIO/USB/TV for HT15X23-110
The lcd controller board kit support the lcd model:HT15X23-110
When you don't make sure the controller board kit whether support your LCD panel that please chat with us in any time!:)
Product Description
1. FUNCTION LAYOUT of LCD controller board
The picture is for a reference only, the actual item is the standard.
The optional connectors and terminals are marked with
2. FUNCTION LAYOUT of LCD controller board
The picture is for a reference only, the actual item is the standard.
The optional connectors and terminals are marked with
| CHIPSET | TSUMV56RUU-Z1(Mstar) | ||
| Support LCD Panel | Interface | Single/Dual 6/8 bit LVDS | |
| Resolution | Up to 1920X1200@60Hz | ||
| Power | For board | 12V DC power supply | |
| To LCD panel | 3.3V,5V,12V | ||
| Management | Low power consumption mode | ||
| Standby | <1 W | ||
| OSD Language | Simple Chinese,English,Czech,French,Spanish Portuguese,Italian,Dutch,Russian,Arabic Other language support customized. | ||
| KEY Function | 7 keys | Power , Menu, Vol-,Vol+,CH-,CH+,Input | |
| 5 keys | Power,Menu,Up,Down,Exit/Enter | ||
| Video Input | HDMI | 480i,480p,576i,576p,720p 1080i,1080p | |
| VGA | Analog RGB(0.7Vp-p) V-H SYNC Separator(TTL) | ||
| AV(CVBS) | Video System | PAL/NTSC/SECAM | |
| Video level | 1.0 Vp-p ±5% | ||
| TV | Video System | PAL/SECAM Default NTSC(Optional) | |
| Sound System | BG ,DK ,I, M, L, L’ | ||
| Receive Channel | ATV:127 | ||
| Audio Input | HDMI | YES | |
| VGA | YES | ||
| AV | YES | ||
| Audio Output | Speaker | 2X2W (8Ω) THD+N<10% | |
| Earphone | 3.5mm Stereo Audio Jack | ||
| Extend Function | IR control, USB firmware update and media play,Custom Boot LOGO, Flip display(180 degree),Backlight brightness control(DC dimming was default, PWM dimming need customized),OSD Menu Lock | ||
| Dimension | 188.5X42.3X15(MM), 3X3.5MM Mounting hole | ||

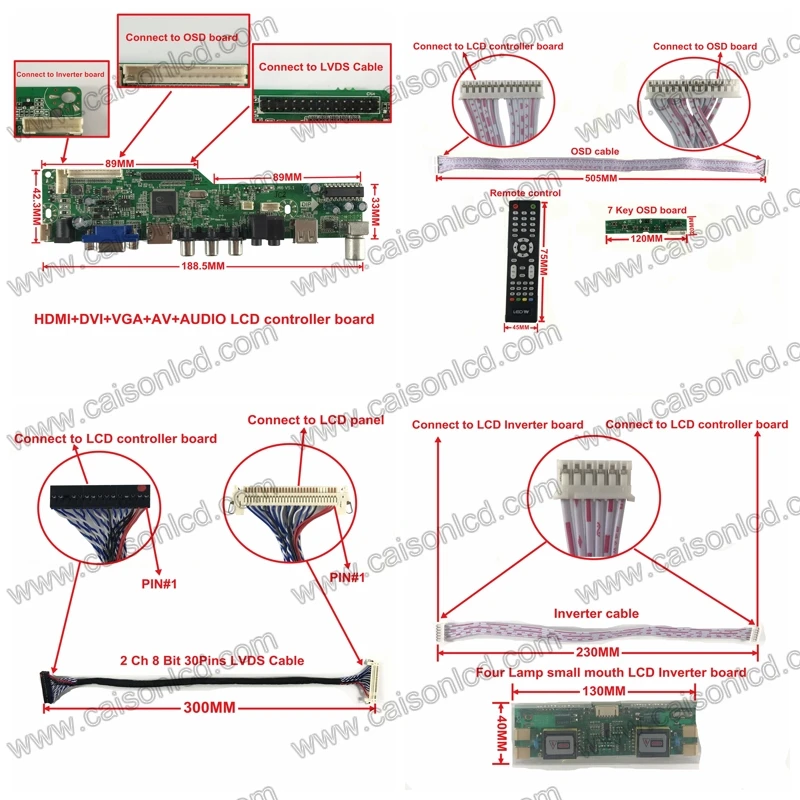

3 . PCB DIMENSIONS of LCD TV controller board

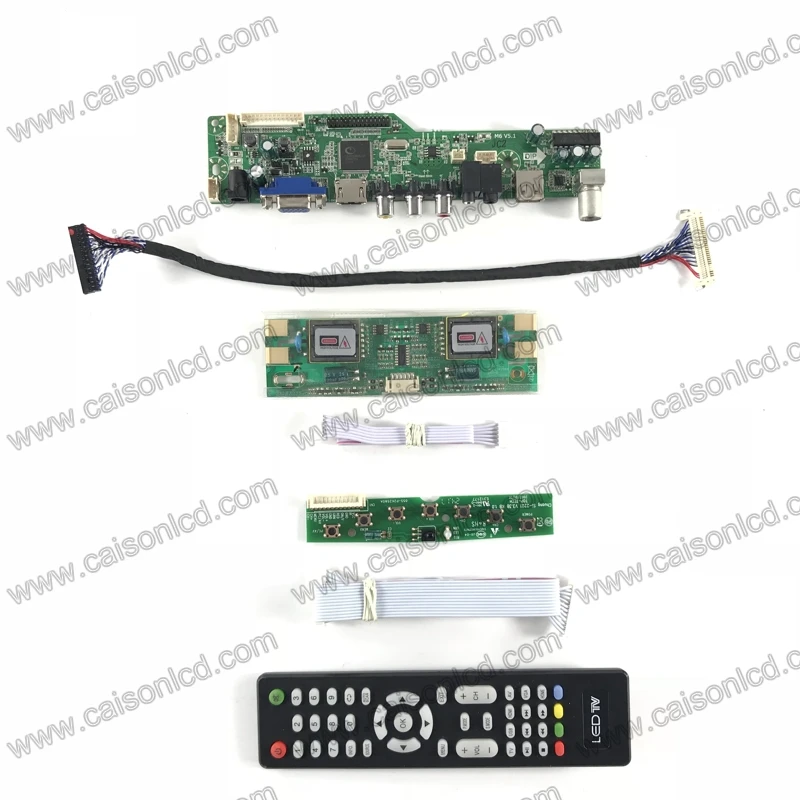

4. Package included:
1 x LCD TV controller board
1 x 2Ch 8Bit 30 Pins LVDS Cable
1 x 7 Key OSD board wit cable
1 x Remote control
1 x LCD inverter board with cable

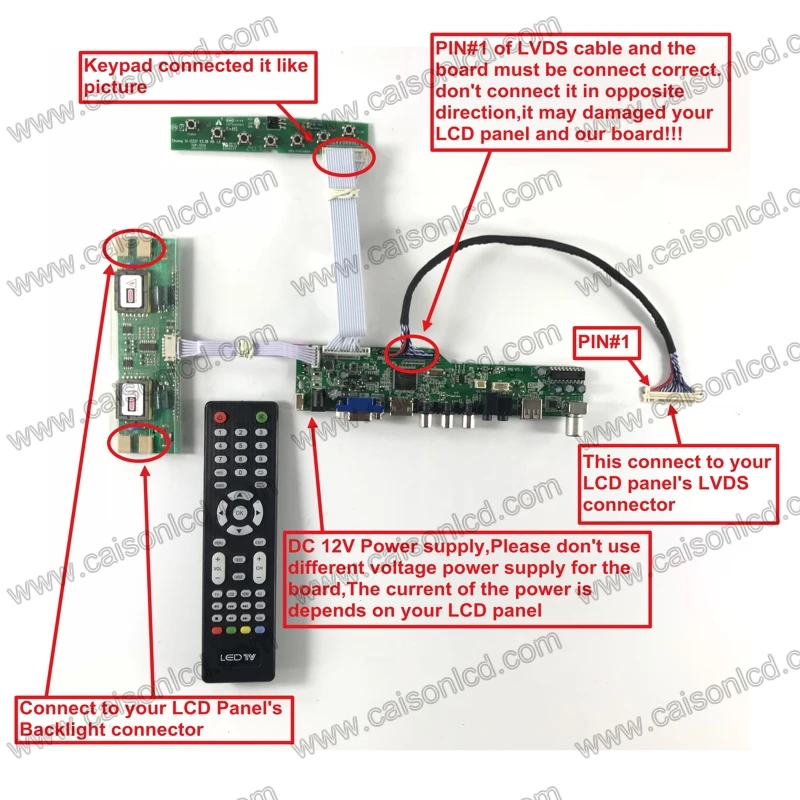

5.User Instruction
Packaging & Shipping
1. About Packing
2 . About shipping
We will send out the goods as soon as possible . Usually lead time should be within three days if your purchase order is not special .
A DHL/UPS/Fedex/4xp :2-7 days
B Singapore EMS /China EMS:15-45 days
C Singapore post air post :20-60 days
If your country need through other transportation to send the goods, Please contact us to help you solve the transportation problem.
If you have any question ,please contact me,my skype is elice.yu
