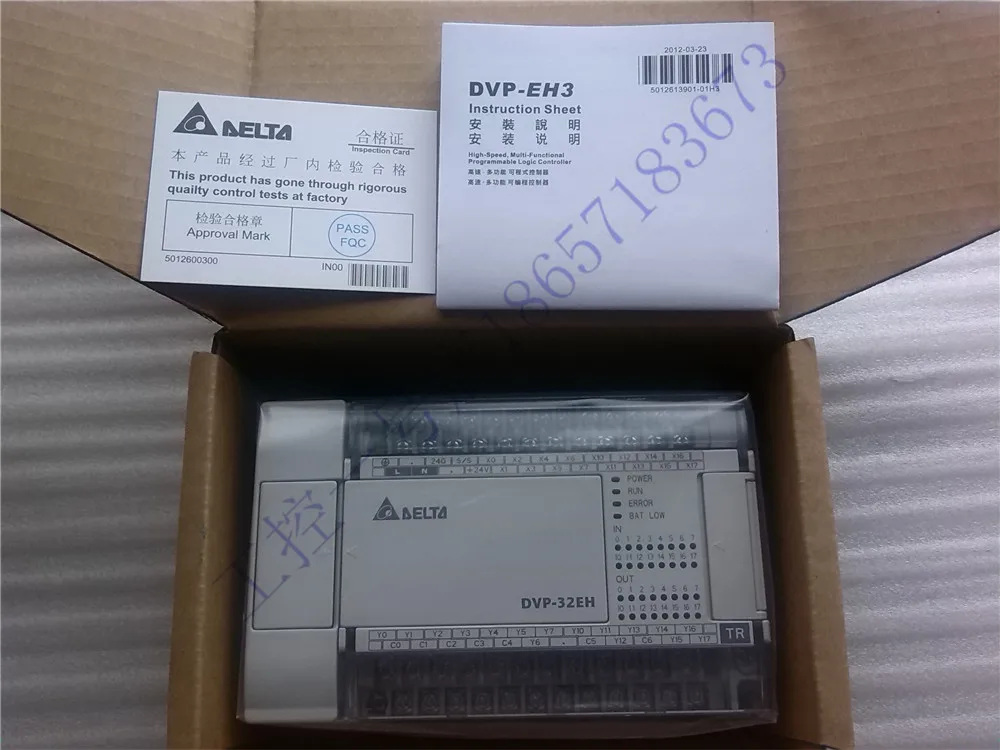

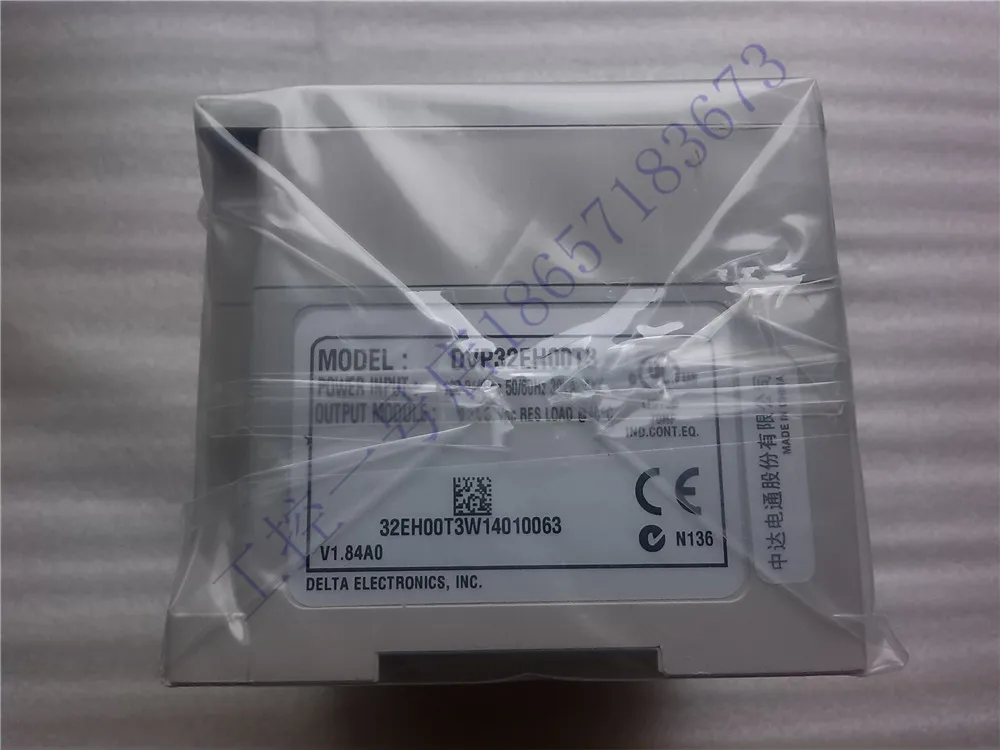

Freeshipping Original Delta PLC controller DVP32EH00R3 EH3 series 100-240VAC 16DI 16DO relay output in box |
История изменения цены
*Текущая стоимость 25 335,99 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-20-2026 | 32175.92 руб. | 32819.55 руб. | 32497 руб. |
| Jan-20-2026 | 26095.85 руб. | 26617.84 руб. | 26356 руб. |
| Dec-20-2025 | 31669.13 руб. | 32302.14 руб. | 31985.5 руб. |
| Nov-20-2025 | 31415.24 руб. | 32043.60 руб. | 31729 руб. |
| Oct-20-2025 | 25082.15 руб. | 25584.87 руб. | 25333 руб. |
| Sep-20-2025 | 30909.3 руб. | 31527.51 руб. | 31218 руб. |
| Aug-20-2025 | 30655.23 руб. | 31268.29 руб. | 30961.5 руб. |
| Jul-20-2025 | 30402.77 руб. | 31010.85 руб. | 30706 руб. |
Описание товара
Electrical Specifications
| Model Items | 16EH 00_3 | 20EH 00_3 | 32EH 00_3 | 32EH 00M3 | 40EH 00_3 | 48EH 00_3 | 64EH 00_3 | 80EH 00_3 | |
| Power supply voltage | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + - 5% | ||||||||
| Fuse capacity | 2A/250VAC | ||||||||
| Power consumption | 50VA | 60VA | 80VA | ||||||
| DC24V current output | 500mA | ||||||||
| Power supply protection | DC24V output short circuit protection | ||||||||
| Voltage withstand | 1,500VAC (Primary-secondary), 1,500VAC (Primary-PE), 500VAC (Secondary-PE) | ||||||||
| Insulation resistance | > 5M Ohm at 500VDC (between all I/O points and ground) | ||||||||
| Noise immunity | ESD: 8KV Air Discharge EFT: Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 250V Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV, RS: 26MHz ~ 1GHz, 10V/m | ||||||||
| Grounding | The diameter of grounding wire shall not be less than that of L, N terminal of the power supply. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) | ||||||||
| Operation/ storage | Operation: 0 °C ~55 °C (temperature), 50~95% (humidity), pollution degree 2 Storage: -25 °C ~70 °C (temperature), 5~95% (humidity) | ||||||||
| Vibration/shock resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) | ||||||||
| Weight (g) | R | 500 | 520 | 652 | 644
| 710 | 748 | 836 | 948 |
| T | 480 | 500 | 612 | 675 | 688 | 756 | 848 | ||
| Input Point | ||||||
| Spec Items | Two Differential inputs (200kHz) | 24VDC single common port input | ||||
| 200kHz | 20kHz | Normal input | ||||
| Input wiring type | Independent wiring | Change wiring from S/S to SINK or SOURCE | ||||
| Input indicator | LED display; light on = ON, light off = OFF | |||||
| Input voltage (+ - 10%) | 5~24VDC | 24VDC | ||||
| Input point configuration | #1 | #2 | #3 | #4 | #5 | |
| Input impedance | 4.7K Ohm | 3.3K Ohm | 3.3K Ohm | 4.7K Ohm | 4.7K Ohm | |
| Active Level | OffàOn | > 1mA (5V) | > 2mA (15V) | |||
| OnàOff | < 0.4mA (2V) | < 0.5mA (5V) | ||||
| Responsetime #5 | OffàOn | < 150ns | < 150ns | < 3.5us | < 8us | < 10ms |
| OnàOff | < 3us | < 3us | < 20us | < 60us | < 20ms | |
