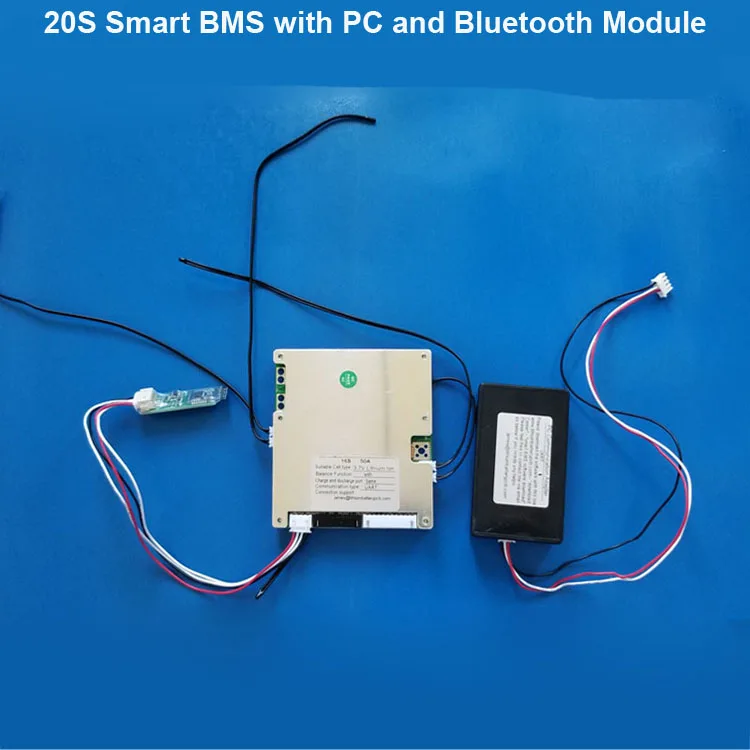

 Notes : this BMS can work for 20S Li ion or 20S Lifepo4 Battery Pack with 30A~50A Constant current , and it

includes a Bluetooth Communication Module and Connection Wire with Connector ,Client can also choose

PC communication Module based on your demand separately .please know it kindly in Advance ,as for software

Client can download from our appointed link without problems after getting the product.

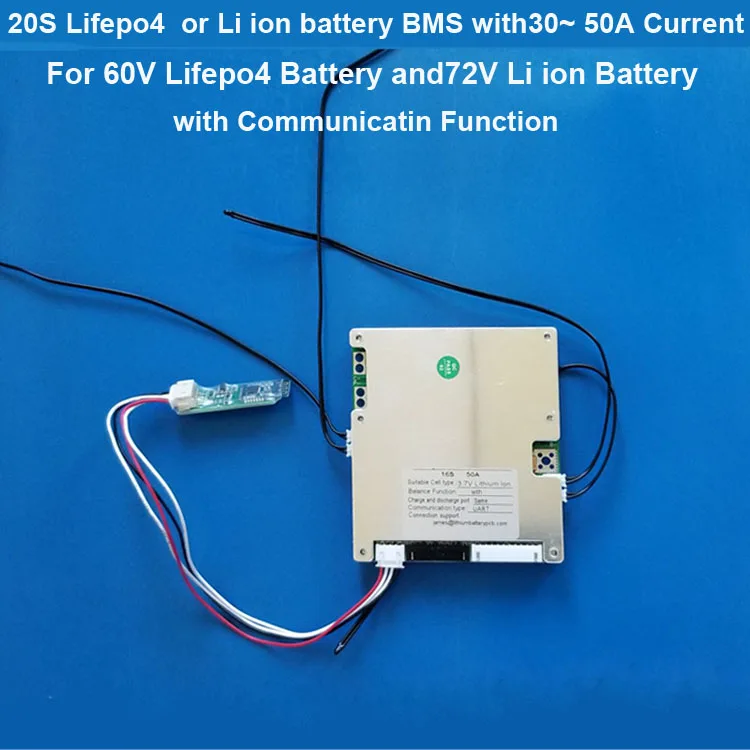

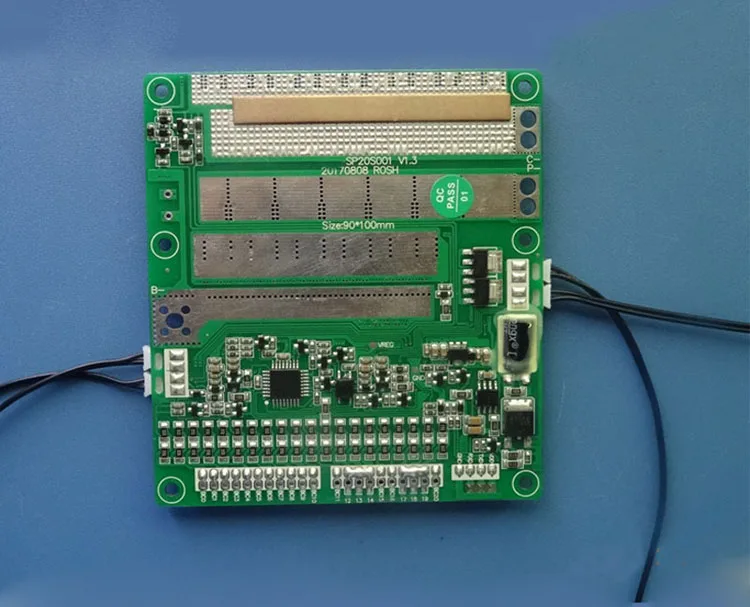

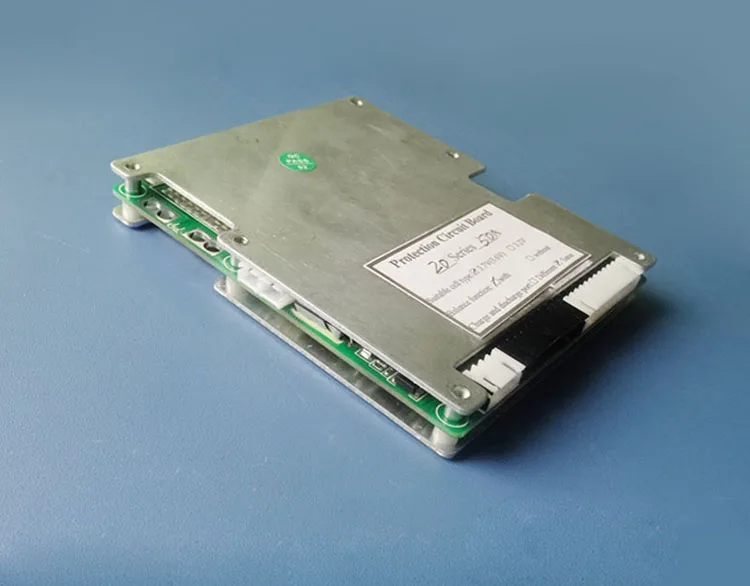

A. Application : This is The PCB for 20 series 60V(73v)  Lifepo4 or Lithium Ion  battery pack with 30~ 50A constant

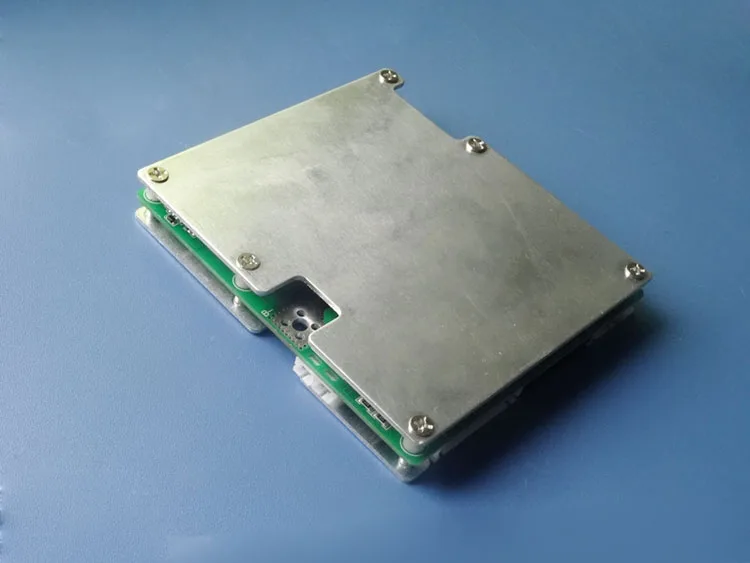

 discharge current  and charging current  .the charge and discharge port is same . Size :Max100*90*15 mm,it has

communication functions with your android Mobile Or PC computer .

B.  Features :

   1) Flexible application for different Lithium ion or Lifepo4 Battery type by setting parameters Via PC tool

software .

   2)  Protection parameters setting : Over-charge protection voltage , Over-discharge protection voltage ,Over-charge

and over-discharge release voltage ,Battery series Setting on Software etc

  3) With APP software system to monitor the battery healthy visibly and conveniently , and some parameters even can

be set via Bluetooth APP software .

 4) With High temperature protection to offer a safer working gurantee for your battery .

 5) Harware components :

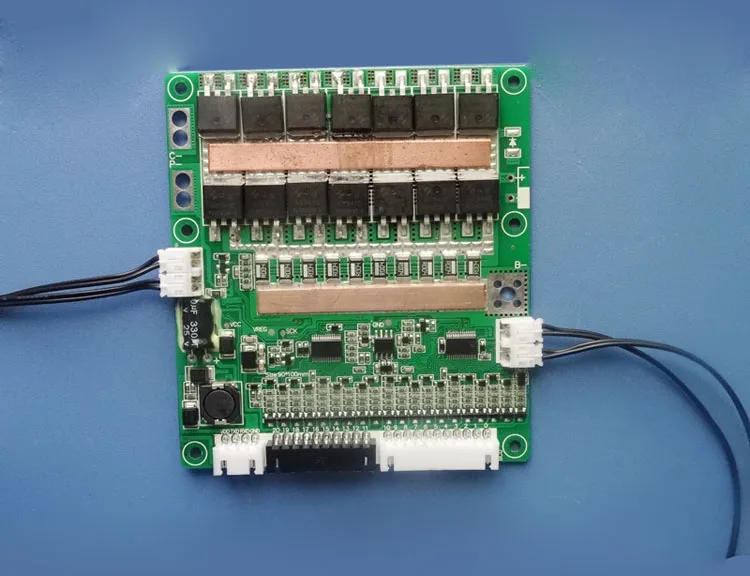

     This BMS has applied with high quality IC chip specially for lithium battery protection purpose .highly detection

precision degree on over-charge,over-discharge,voltage balancing ,and with detection on wires disconnection functions,

with three layers of over-discharge and over-current detections and delay times in detecting process.( Over-current 1,

over current 2,short cicircuit protection ) . short-circuit of charging port ,with two layers protection against over-voltage

when charging :

And we can design and produce Battery protection circuit board in according to client's demand with certain

reasonable order quantity .

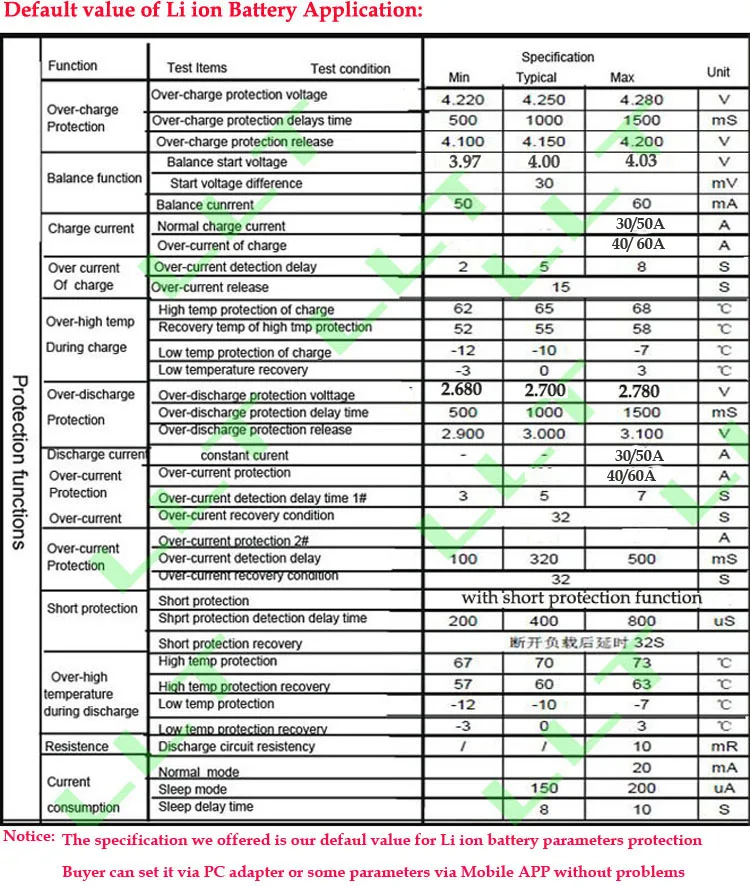

This parameters of below set for Lithium Ion battery , but for Lifepo4 Battery we will set it for you in according to Lifepo4 Battery specification

below specification is only for your reference purpose .

For Lifepo4 Battery Application parameters:

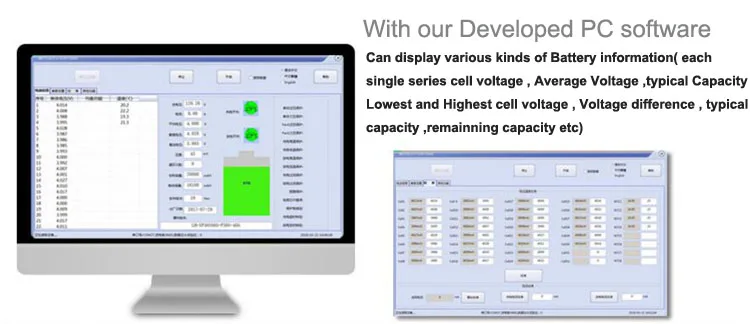

C .Computer Communication display Pages .and What you can do with the PC communication tool ?

(15S is the only example for parameter setting , do not try to set any unreasonable parameters based on your thinking without

considering our BMS feeling , your vehicle will dead if you let our BMS angry surely, he will reject to work for you , please consult us

once you want to set any prarameters on yourside . otherwise , we will not take any responsiblity for the damage of our BMS)

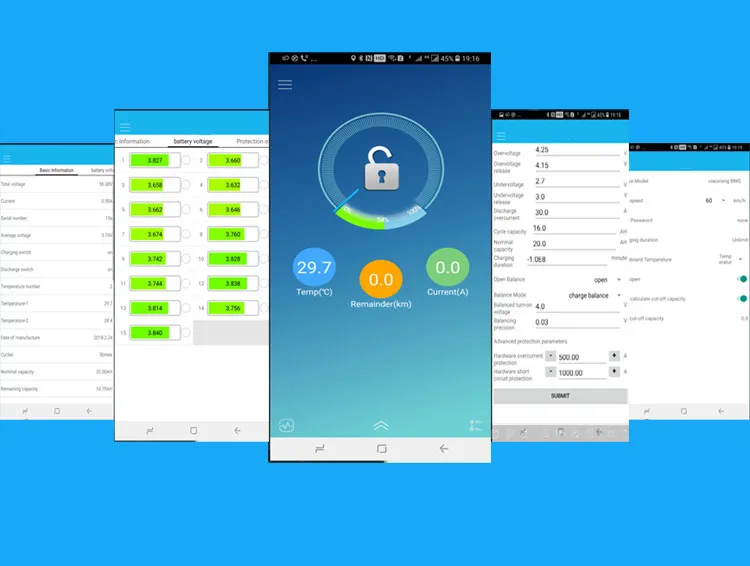

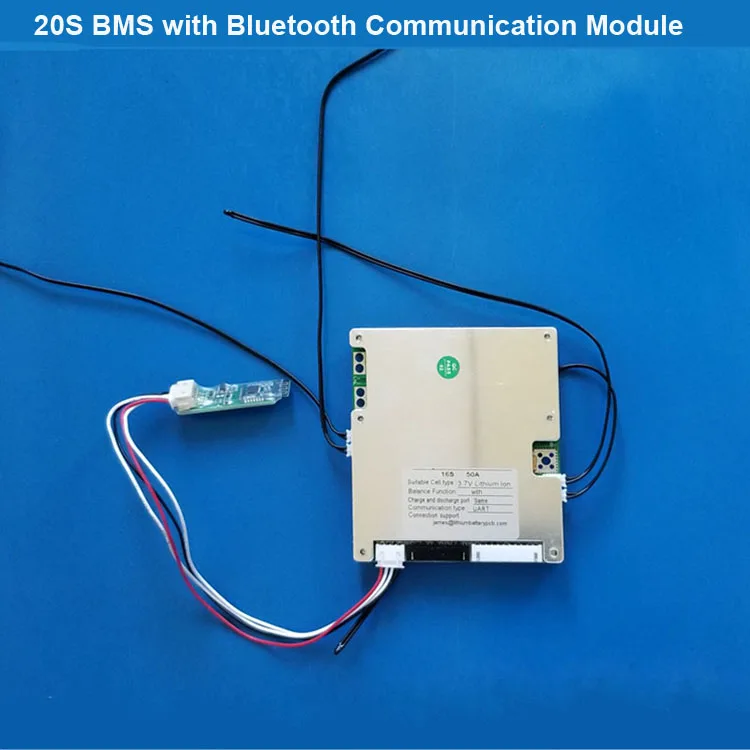

D.What can user do with the Bluetooth Communication Module?

Connections : we will send the connection diagram with our instruction and operation menual together with our PC and APP software

to the buyer after order placement . please know it kindly in advance . thanks

As for this BMS connection , you should connect it starting B- to B+ strictly in order . and detail connection diagram will be sent to our client

when deliver the product . please know it kindly in advance .
