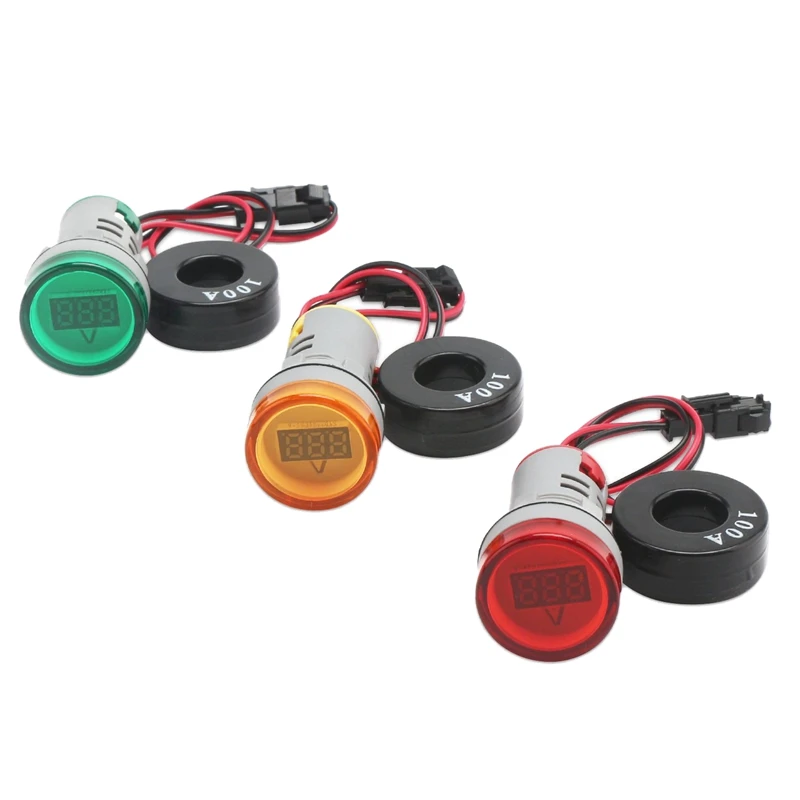

Мини Ac 100A светодиодный индикатор 0-100A цифровой амперметр тестовый прибор 3

Мини Ac 100A светодиодный индикатор 0-100A цифровой амперметр тестовый прибор 3

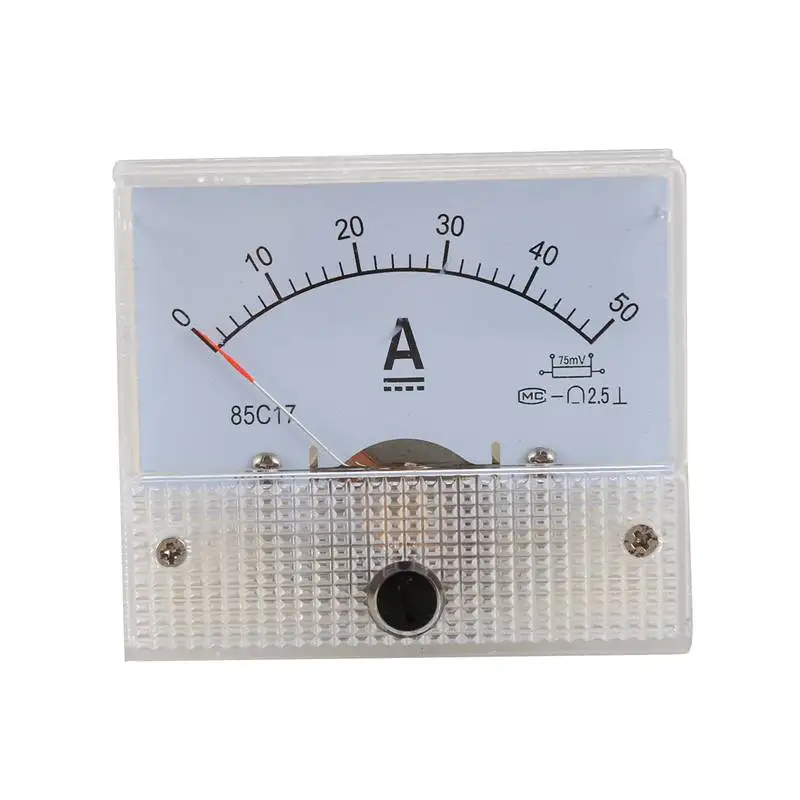

DC 0-50A аналоговая AMP Амперметр ток Панель + 50A 75mV шунтирующий резистор | Инструменты

DC 0-50A аналоговая AMP Амперметр ток Панель + 50A 75mV шунтирующий резистор | Инструменты

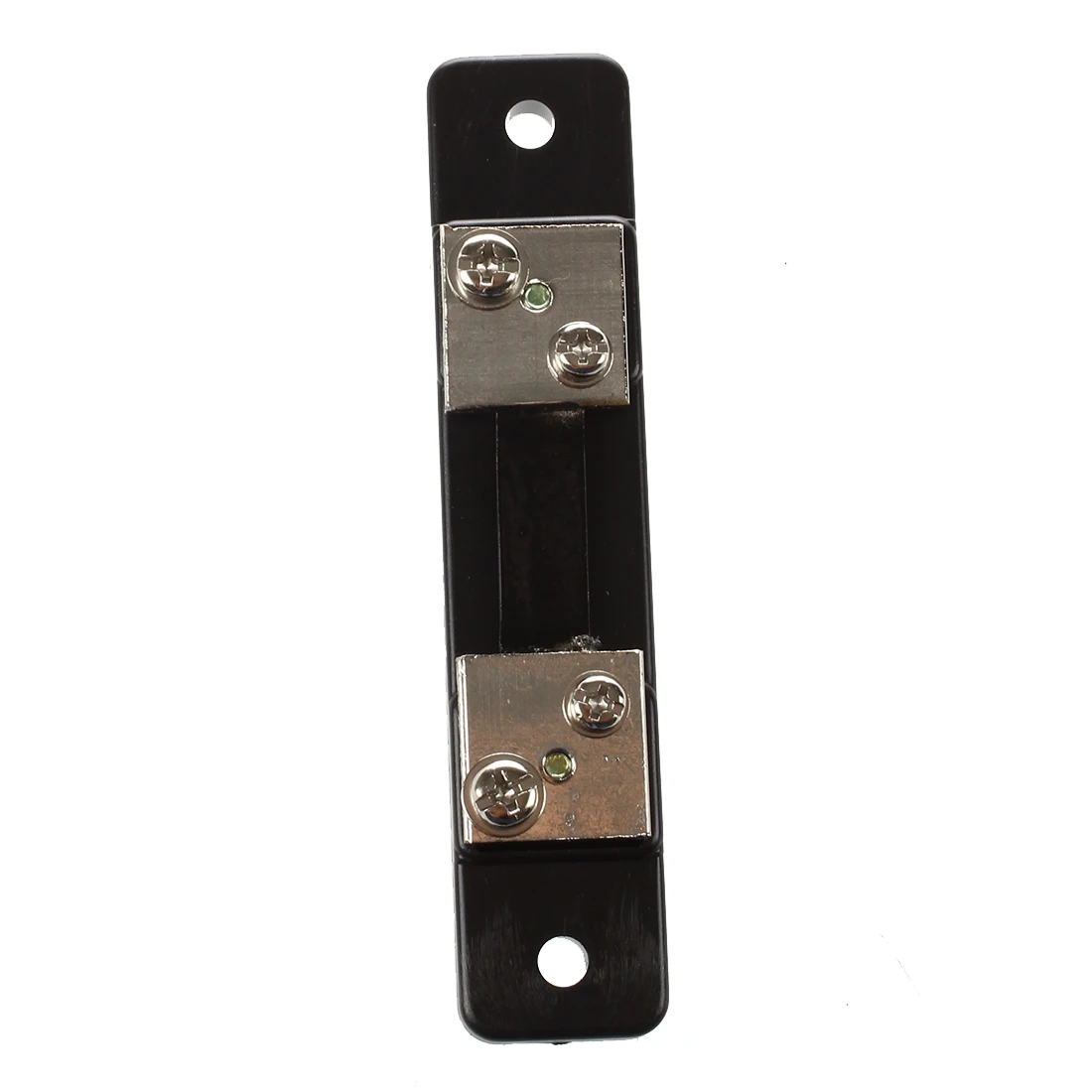

Постоянный ток 5075мв разница в пути метрический ампер | Инструменты

Постоянный ток 5075мв разница в пути метрический ампер | Инструменты

211,07 руб.

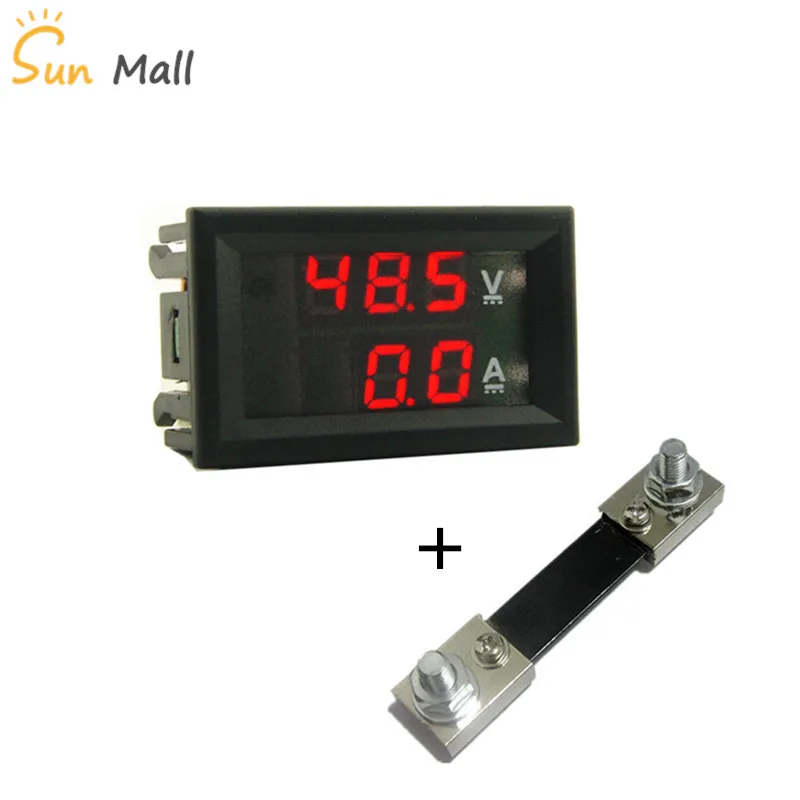

DC 100V 100A Red Mini 0.28inch LED Digital Voltmeter Ammeter Volt Ampere Meter Amperemeter Voltage Indicator Tester | Инструменты

DC 100V 100A Red Mini 0.28inch LED Digital Voltmeter Ammeter Volt Ampere Meter Amperemeter Voltage Indicator Tester | Инструменты

294,29 руб.

Характеристики

ETCR080K Clamp Size 80mm 0.00mA~60A High Accuracy Leakage Current Sensor with Split Type AC Meter Measurement | Инструменты

История изменения цены

*Текущая стоимость US $204.40 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Mar-20-2026 243.45 руб. 255.21 руб. 249 руб.
Feb-20-2026 241.68 руб. 253.34 руб. 247 руб.
Jan-20-2026 202.65 руб. 212.43 руб. 207 руб.
Dec-20-2025 237.74 руб. 249.32 руб. 243 руб.
Nov-20-2025 206.18 руб. 216.20 руб. 211 руб.
Oct-20-2025 233.62 руб. 245.86 руб. 239 руб.
Sep-20-2025 231.96 руб. 243.34 руб. 237 руб.
Aug-20-2025 228.95 руб. 239.60 руб. 233.5 руб.
Jul-20-2025 226.23 руб. 237.44 руб. 231.5 руб.

Описание товара

ETCR080K Clamp Size 80mm 0.00mA~60A High Accuracy Leakage Current Sensor with Split Type AC Meter Measurement | ИнструментыETCR080K Clamp Size 80mm 0.00mA~60A High Accuracy Leakage Current Sensor with Split Type AC Meter Measurement | ИнструментыETCR080K Clamp Size 80mm 0.00mA~60A High Accuracy Leakage Current Sensor with Split Type AC Meter Measurement | ИнструментыETCR080K Clamp Size 80mm 0.00mA~60A High Accuracy Leakage Current Sensor with Split Type AC Meter Measurement | ИнструментыETCR080K Clamp Size 80mm 0.00mA~60A High Accuracy Leakage Current Sensor with Split Type AC Meter Measurement | ИнструментыETCR080K Clamp Size 80mm 0.00mA~60A High Accuracy Leakage Current Sensor with Split Type AC Meter Measurement | Инструменты

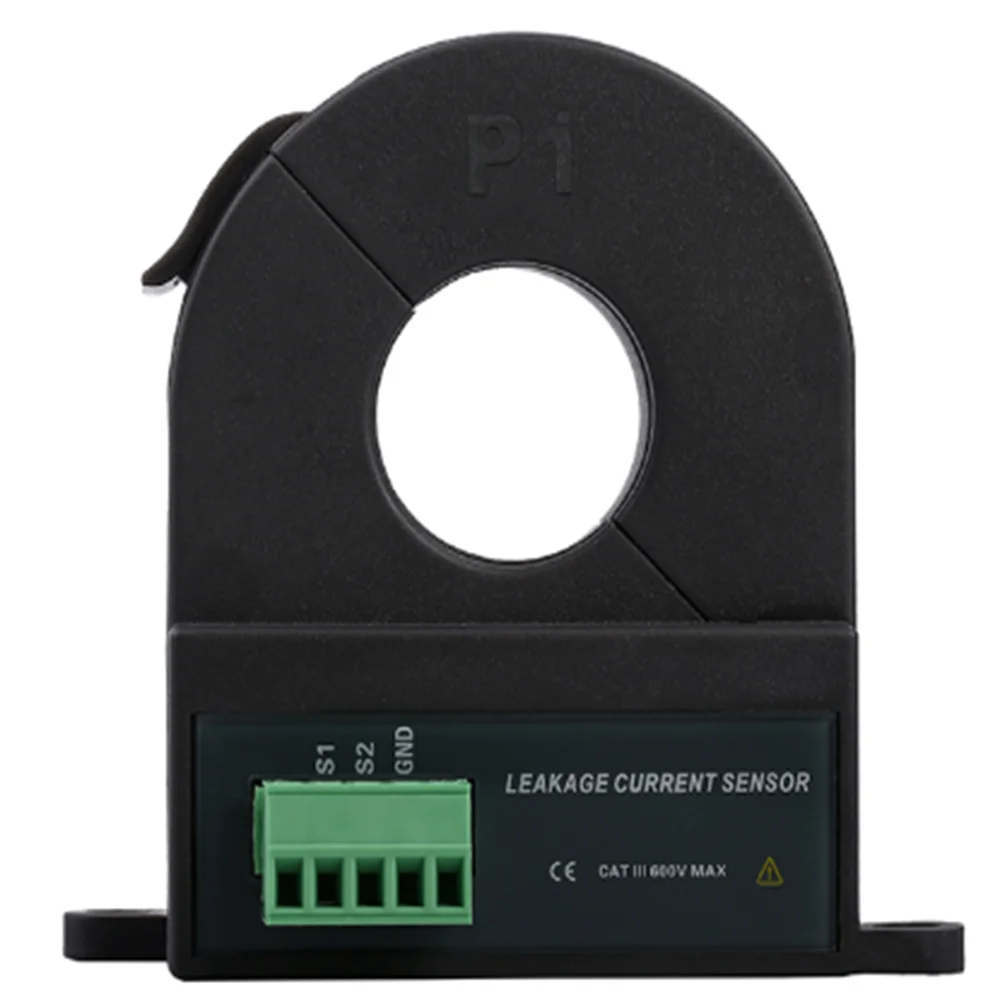

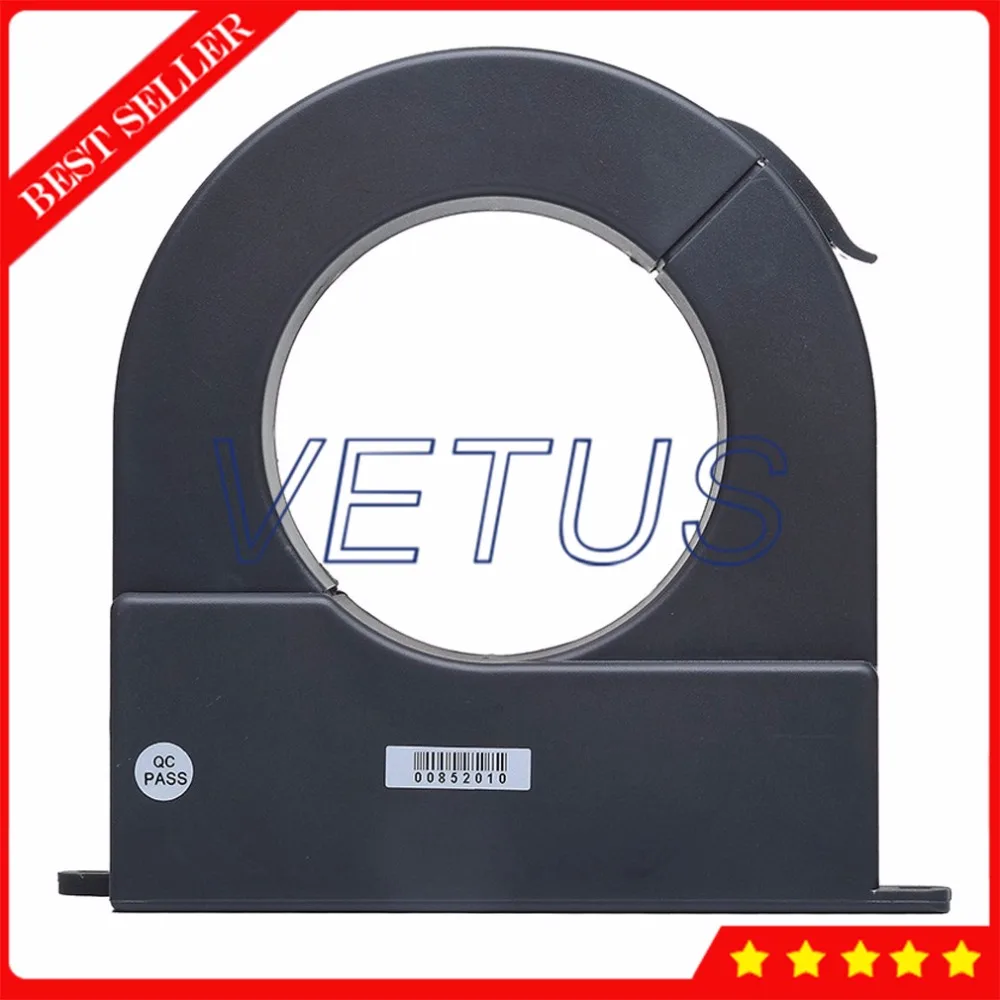

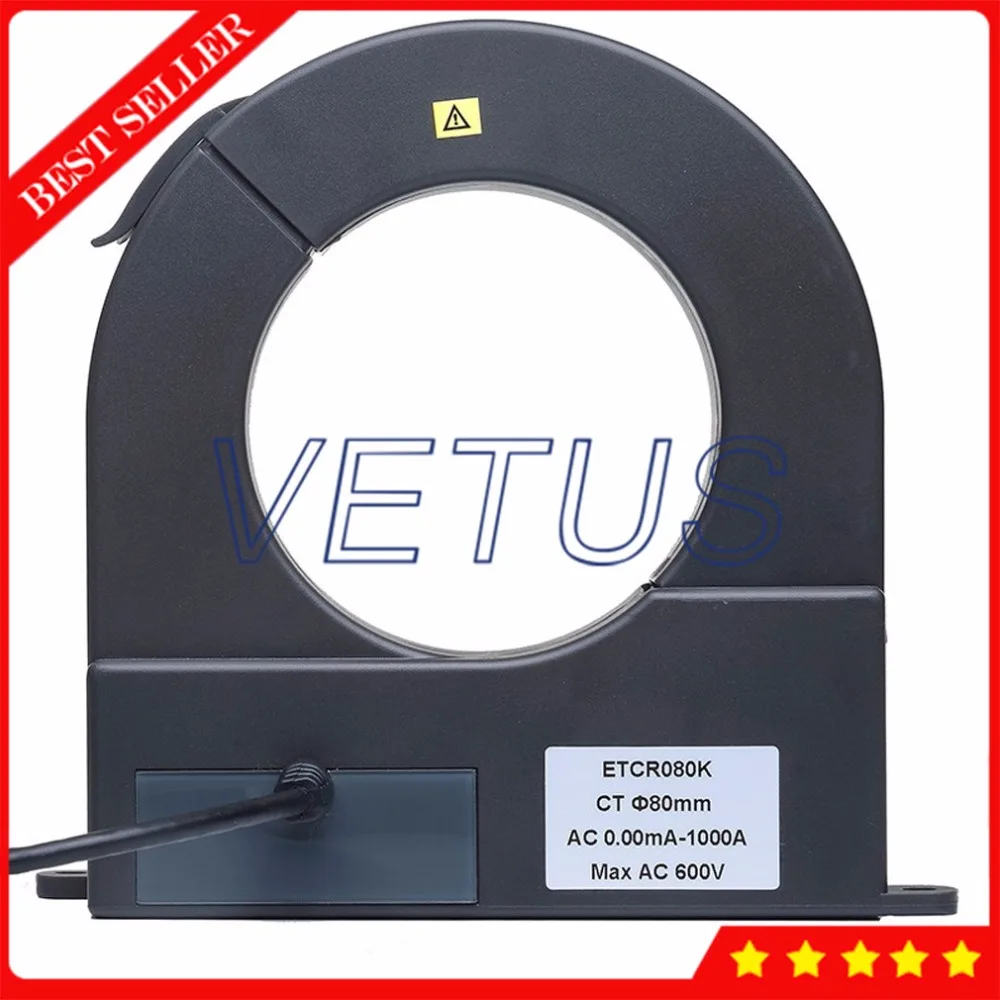

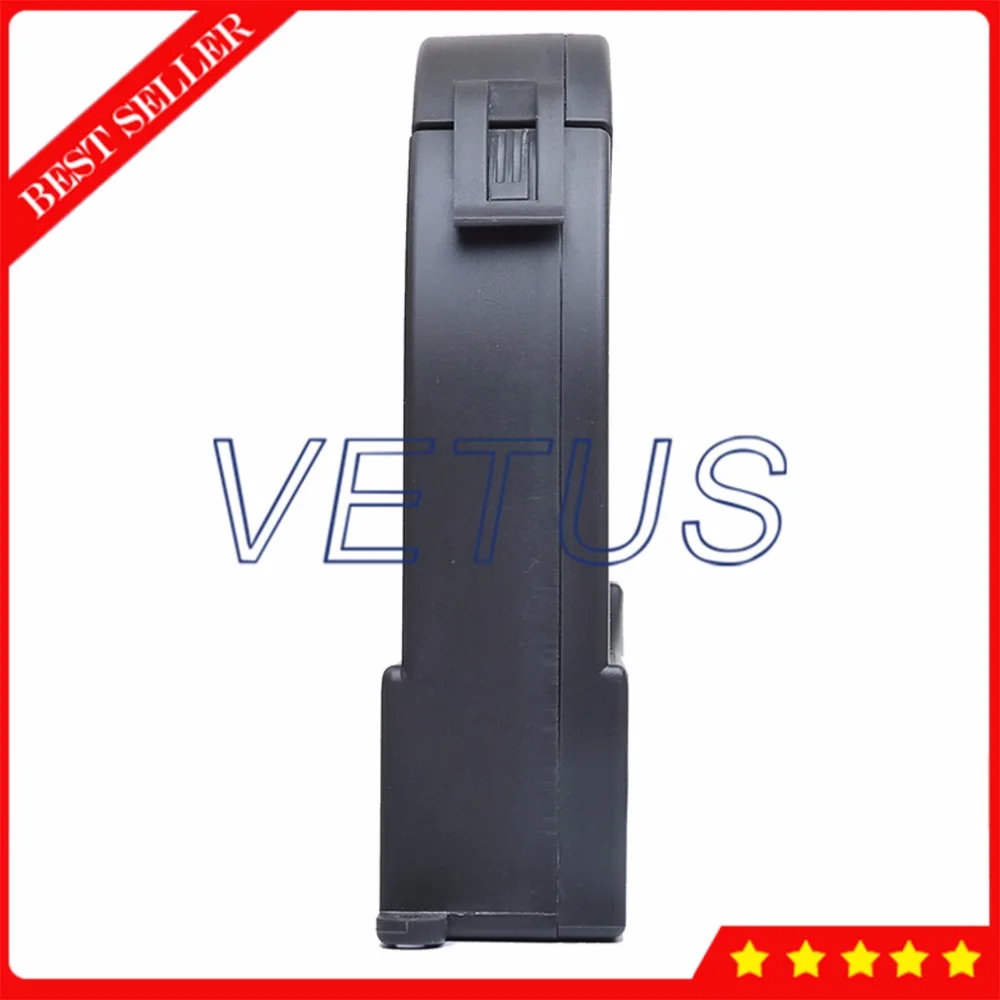

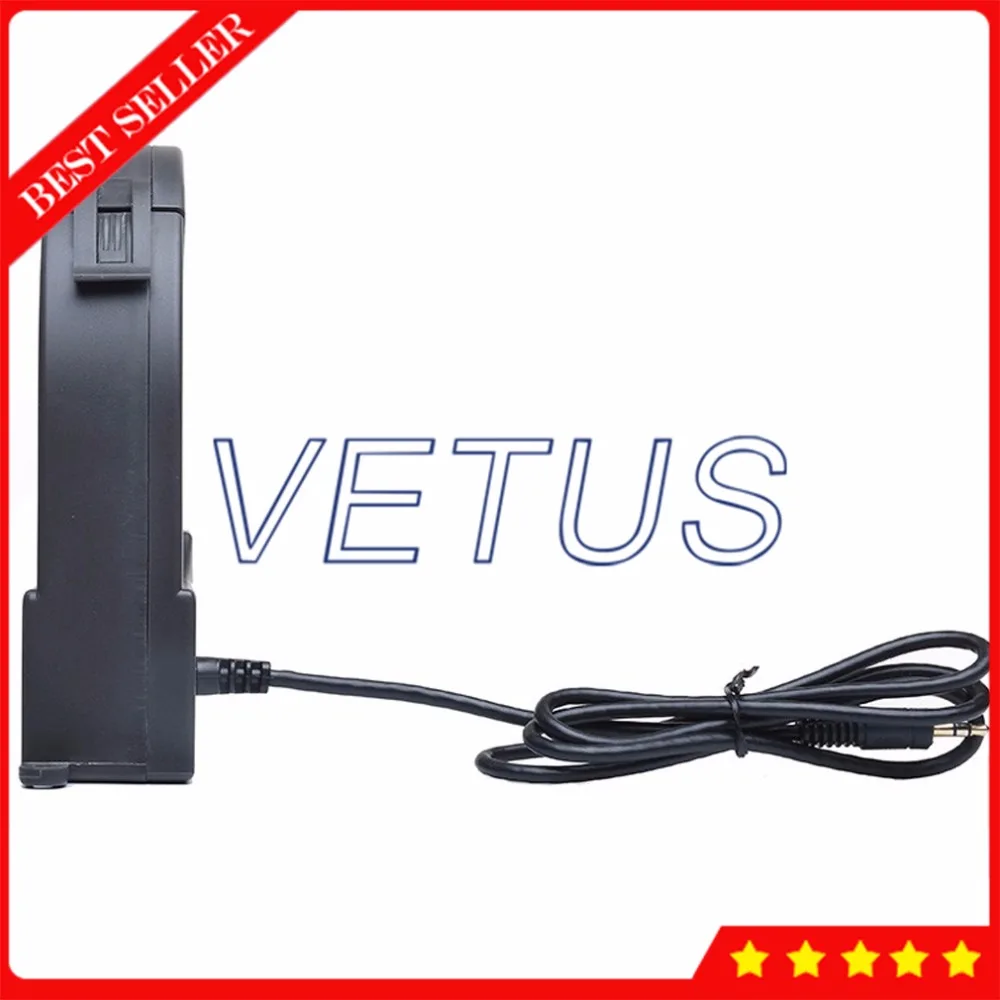

ETCR080K Clamp Size 80mm 0.00mA~60A High Accuracy Leakage Current Sensor with Split Type AC Leakage Current Meter Measurement



HTB1cXGKNpXXXXXjapXXq6xXFXXXG

Ⅰ． Introduction

ETCR080K Split Type High Accuracy Leakage Current Sensor, suitable for high precision AC leakage current, current, high harmonic current, phase, power, power, power factor and other detection. Range: 0.00mA~60A, jaw size is Φ80mm. The sensor adopts the Split CT structure, which can be installed without disconnecting the tested circuit. It is especially suitable for online use. It adopts permalloy iron core and double shielding technology, and has strong anti-interference ability to ensure the accuracy and stability of measurement. Non-contact measurement methods are adopted, and the operation is safe and simple. It can be connected to phase detection analyzers, industrial control devices, data recorders, oscilloscopes, harmonic analyzers, power quality analyzers, and high-precision digital multimeters.

    1   HTB1WdDhNpXXXXb9XXXXq6xXFXXX9

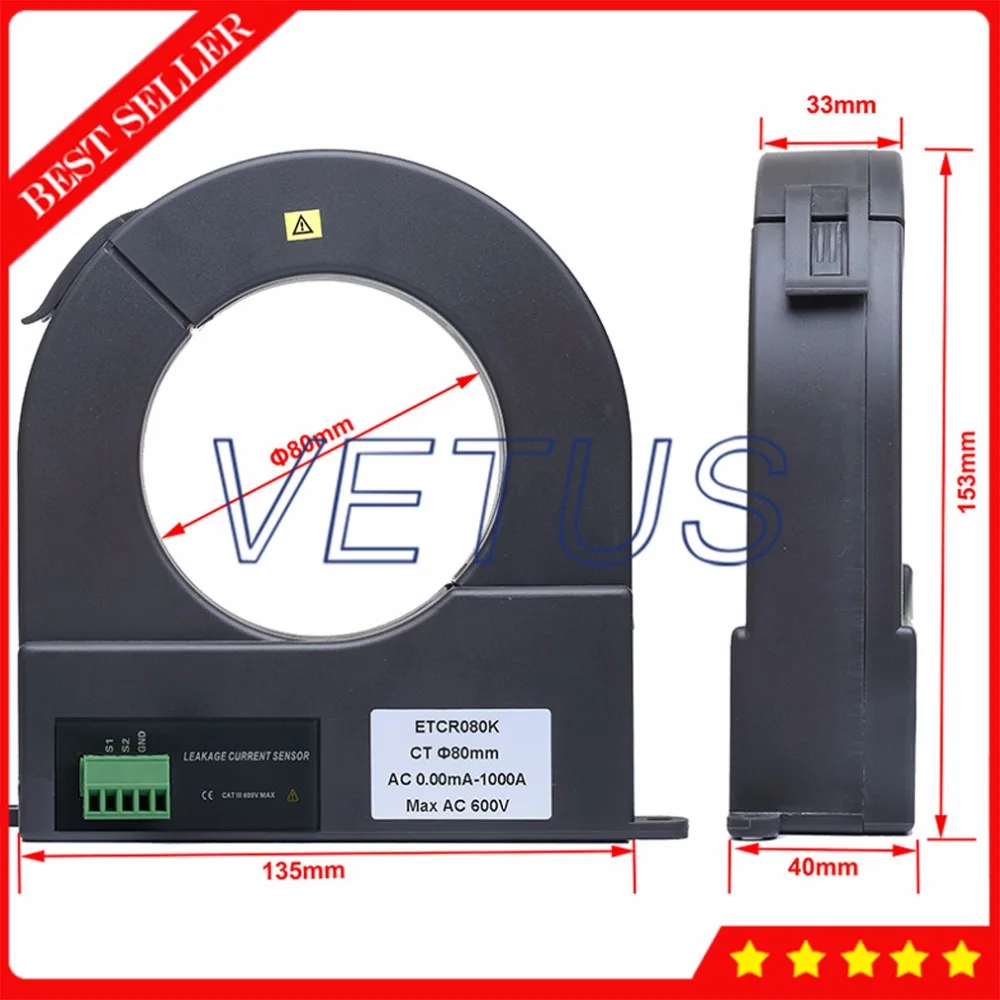

Clamp size Φ80mm
Range 0.00mA～60A AC
Resolution 0.01mA
Accuracy ±0.5%FS(50Hz/60Hz；23℃±2℃)
Linearity ≤2.0%
Phase error ≤2°(50Hz/60Hz；23℃±2℃)
Reference load RL：0mA～2A≤300Ω；2A~20A≤30Ω；20A~200A≤3Ω；200A～800≤0.3Ω
Standard turn ratio 800:1（Can be customized on request）
output method Current sensing output

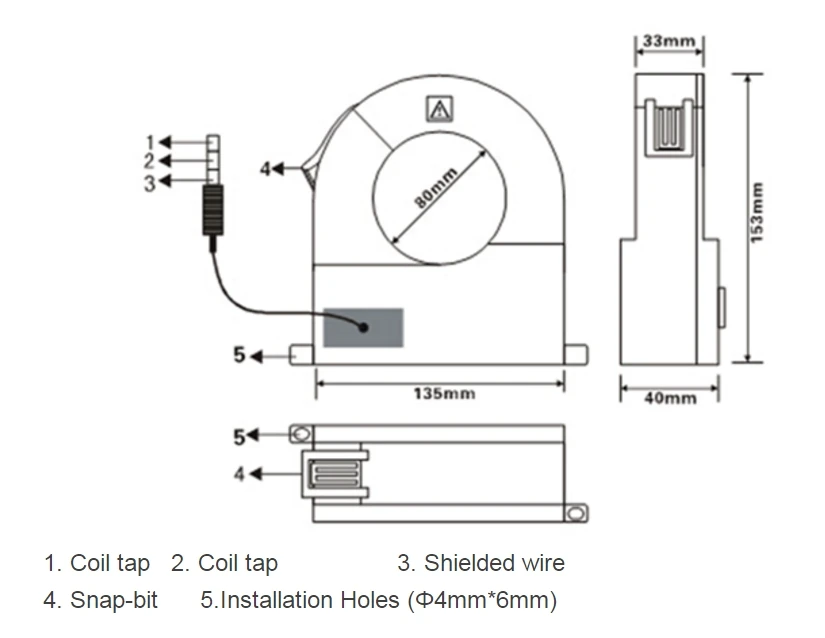

Output Interface Connection terminal(S1,S2 coil tap terminal,GND shielded terminal)
Wiring length 1M

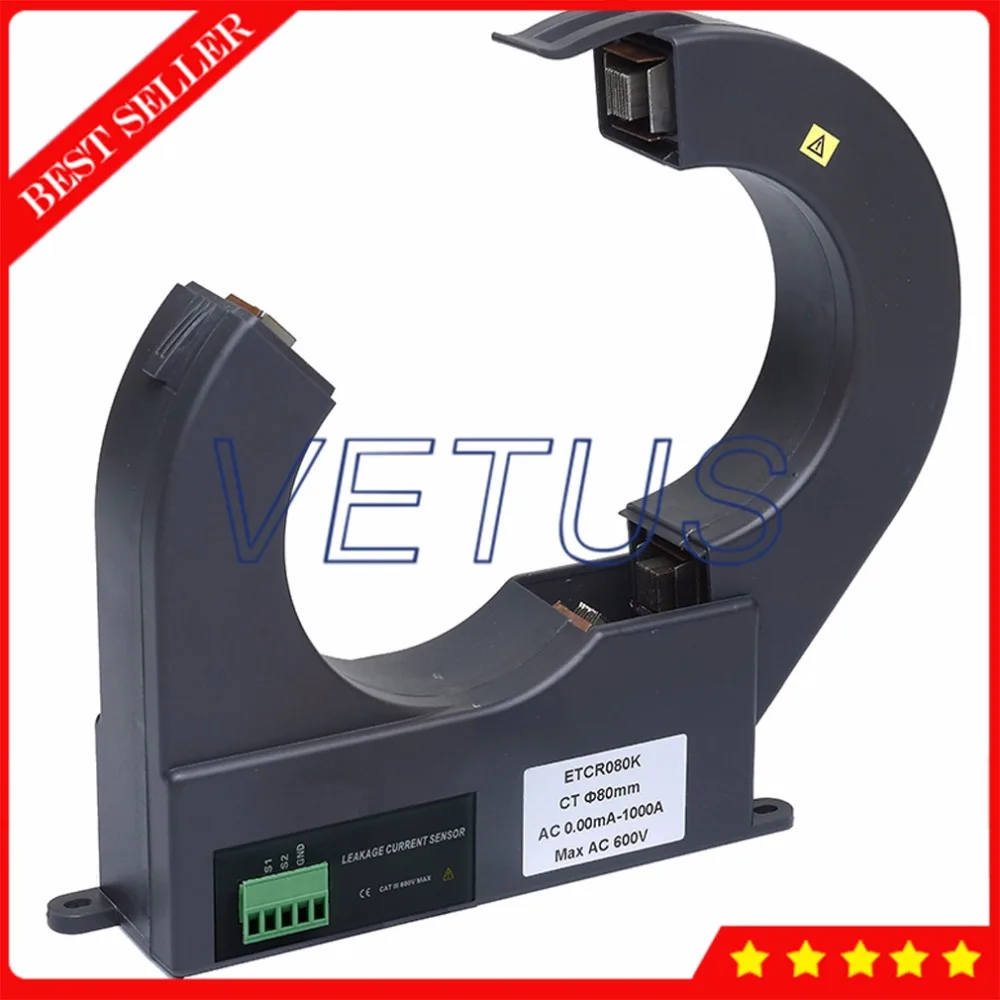

Detection method Split Type CT，suitable for online installation
Measured current frequency 45Hz～60Hz
Frequency characteristics 10Hz～100kHz
Wire position The wire under test is in the center of the jaws
Line voltage below AC 600V
working environment -15℃～50℃； below 80%Rh
Storage environment -10℃～60℃； below 70%Rh
Insulation AC3700V/rms (Between core and shell)
Protection Type IEC1010-1、IEC1010-2-032、Pollution  2、CAT Ⅲ(600V)
Weight 490g
Current Clamp 135mm×40mm×153mm
  HTB1puy_NpXXXXXQXFXXq6xXFXXXW

HTB1GDi6NpXXXXa1XFXXq6xXFXXXR



     6

HTB1WkGHNpXXXXbZapXXq6xXFXXXE

60
