NK5600 1310/1550nm 32/30dB SM Optic Fiber OTDR Tester With VFL OPM Light Source Functionn | Мобильные телефоны и
История изменения цены
*Текущая стоимость 44771.96 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-19-2026 | 56859.47 руб. | 57996.38 руб. | 57427.5 руб. |
| Jan-19-2026 | 46114.65 руб. | 47036.15 руб. | 46575 руб. |
| Dec-19-2025 | 55964.33 руб. | 57083.55 руб. | 56523.5 руб. |
| Nov-19-2025 | 55516.59 руб. | 56626.6 руб. | 56071 руб. |
| Oct-19-2025 | 44323.97 руб. | 45209.7 руб. | 44766 руб. |
| Sep-19-2025 | 54621.20 руб. | 55713.23 руб. | 55167 руб. |
| Aug-19-2025 | 54173.25 руб. | 55256.78 руб. | 54714.5 руб. |
| Jul-19-2025 | 53725.72 руб. | 54800.89 руб. | 54262.5 руб. |
Описание товара

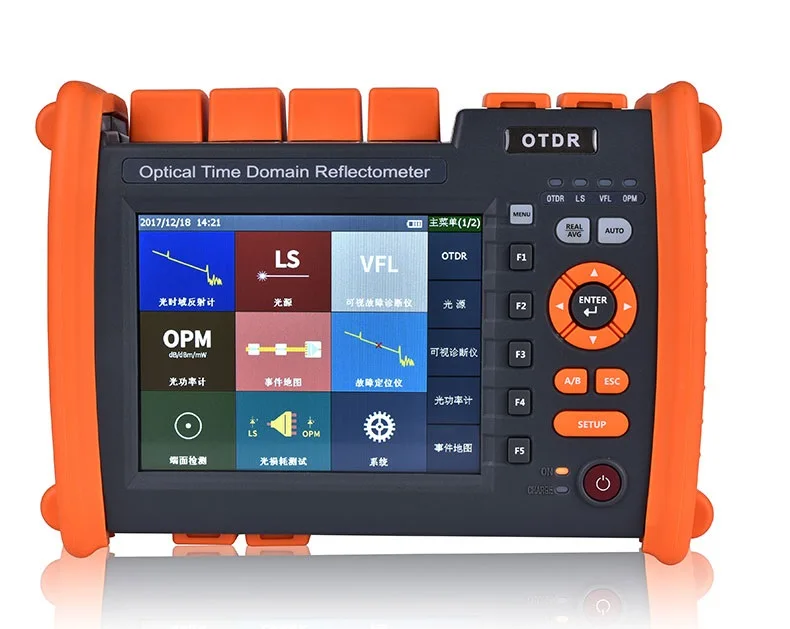

The NK5600 Optical Time Domain Reflectometer is a high-performance, multi-functional test instrument designed for the FTTx network. The product has a maximum resolution of 0.05m and has a minimum test area of 0.8m.
This product integrates theOTDR/light source, OPM(optical power meter), and VFL functions in one body. It uses touch and key dual operation modes. The product has a rich external interface and can be remotely controlled through an Ethernet interface, or through two different USB interface, external U disk, printer and PC data communication.TheOTDR supports averaging and real-time tests featuring compact design, excellent stability, user-friendliness and cost-effectiveness. The hotkeys enable convenient events review and analysis. With TraceManager software, you can save and transfer test data from OTDR to PC for further analysis, reporting and printing.Note: This OTDR has the 4 functions: OTDR , VFL, OPM, LS(Light Source) , it does not have other extra functions, such as OFD ,Event Map ,OLT (Optical Loss test),and so onFeatures:
Less than 0.8m short-term event dead zone, test fiber jumper easily;
Integrated 5.8-inch color TFT LCD display, key/touch dual operation.
Built-in stable light source function 1310/1550nm;
Built-in optical power meter test function;
Built-in visible red fault location (VFL)
Has a unique test result self-diagnosis function;
Independent and convenient one-button automatic operation mode, real-time test function buttons;
Multi-wavelength synchronization test function;
With multiple waveform viewing capabilities;
Link-band non-destructive testing (online test module);
Communication light automatic monitoring function;
With test file wireless transmission function;
Battery low voltage alarm function;
WinCE Windows operating system
Dynamic Range | 32/30dB |
Ranging Accuracy | ± (1 m + sampling interval + 0.005% × distance) (excluding refractive index insertion error) |
The highest ranging resolution | 0.05m |
Test range | 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512km |
Test Pulse Width | 5,10,30,100,275,500,1000,5000,10000,20000ns |
Loss threshold | 0.01dB |
Sample points | 128k |
Linearity | 0.05dB/dB |
Loss Resolution | 0.001dB |
Waveform storage capacity | ≥1000 pieces |

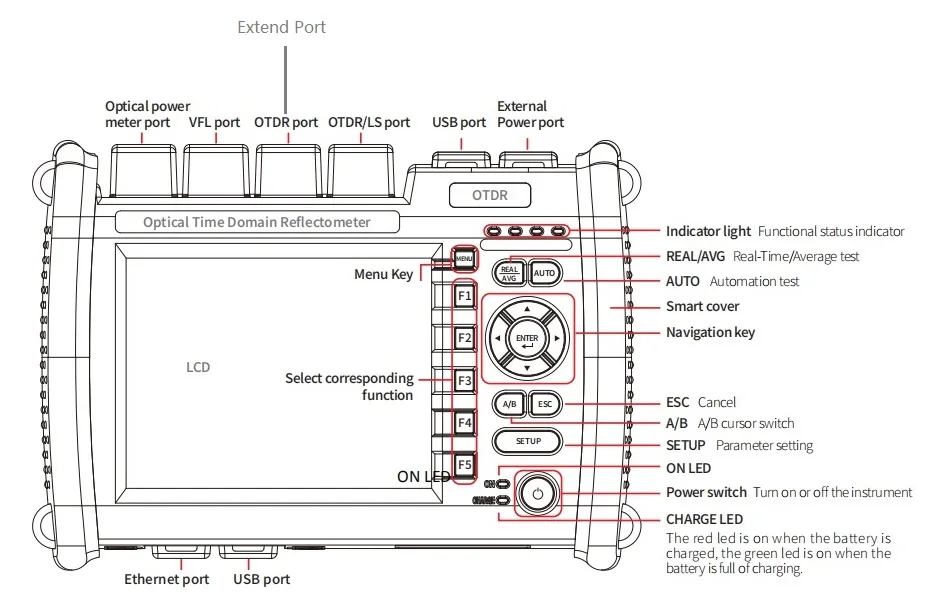

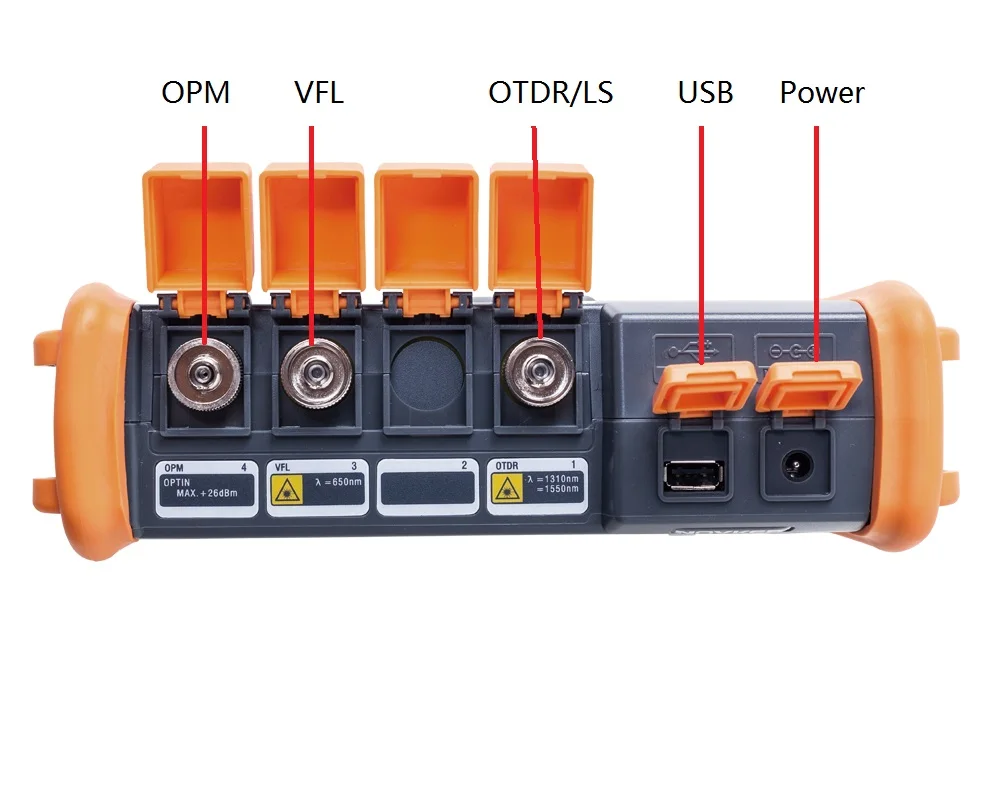

External Interface | USB, Min-USB, RJ-45 |
Optical output interface | FC/SC/ST (replaceable) |
VFL | 650nm±10nm, ≥5mW (typical) |
Optical power meter Wavelength range/power range | 1200nm to 1650nm, -50 to +26dBm |
Stabilized light source function 1310/1550nm | -5dBm, CW (270Hz, 1K270Hz, 2K270Hz) |
Display | 5.7-inch color TFT LCD touch screen |
Battery | 7.4v/6300mAh Lithium Battery Pack, Supports Up to 12 Hours of Continuous Working Time |
Power Output | 19V. 1.31A |
Adapt to the environment Working temperature | -5 ~ +50 °C, storage temperature: -20 ~ +70 °C |
Relative humidity | 0 to 95% without condensation |
Size | 215mm*150mm*70mm |
Weight (with battery) | 1.15kg |
Setting test parameters
Look up the curve analysis results
Measuring the distance and average loss between two points
Select the curve target position and the current selected cursor will switch to the target position.
The navigation key in the key area can also move the cursor position.
Storage and export of the test results
Optical power meter(OPM)
Laser source (LS)
Visual fault location (VFL)
Client simulation analysis softwareThe instrument is equipped with client simulation analysis software. So the waveform preview, offline analysis, print preview and batch printing progressing can be done at the computer terminal. This can be convenient for user management and maintenance of optical fiber link database.
Waveform preview and offline analysis Batch printing progressing
Select the printed file by previewing the waveform. This can convenient user to submit test report.
Batch printing progressing
You can view test reports by batch print preview. The test reports contains test waveforms, link loss, average loss, event list and other information, and then you can batch print after checking.
