4Pcs/Lot,Outdoor IP67 ODVA-LC to LC/UPC Duplex 2C MM(62.5/125)  1M Fiber Optic Patch Cord+4Pcs/Lot ODVA LC UPC DX Fiber Adapter

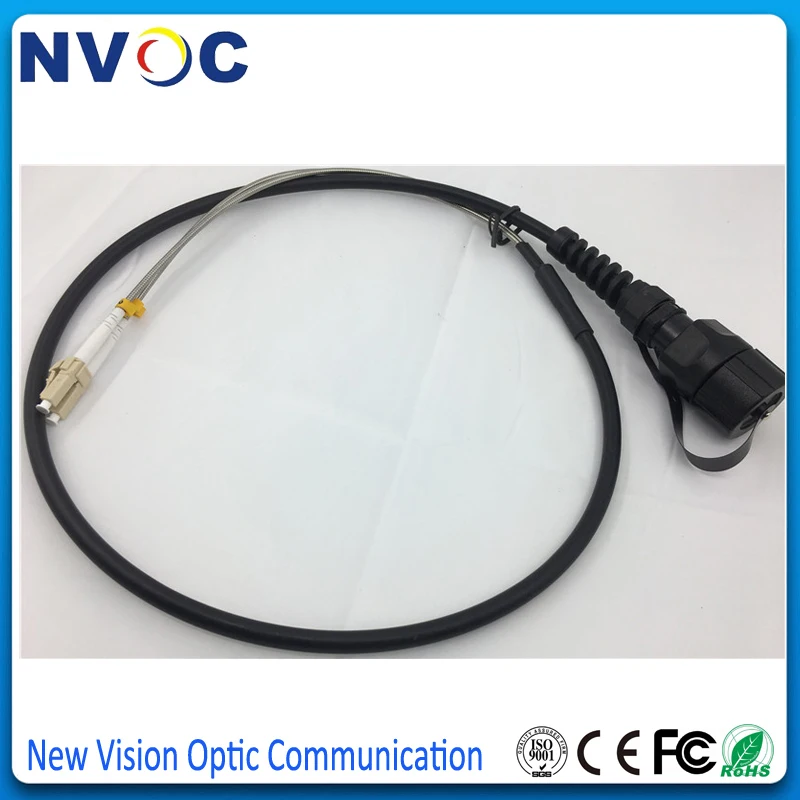

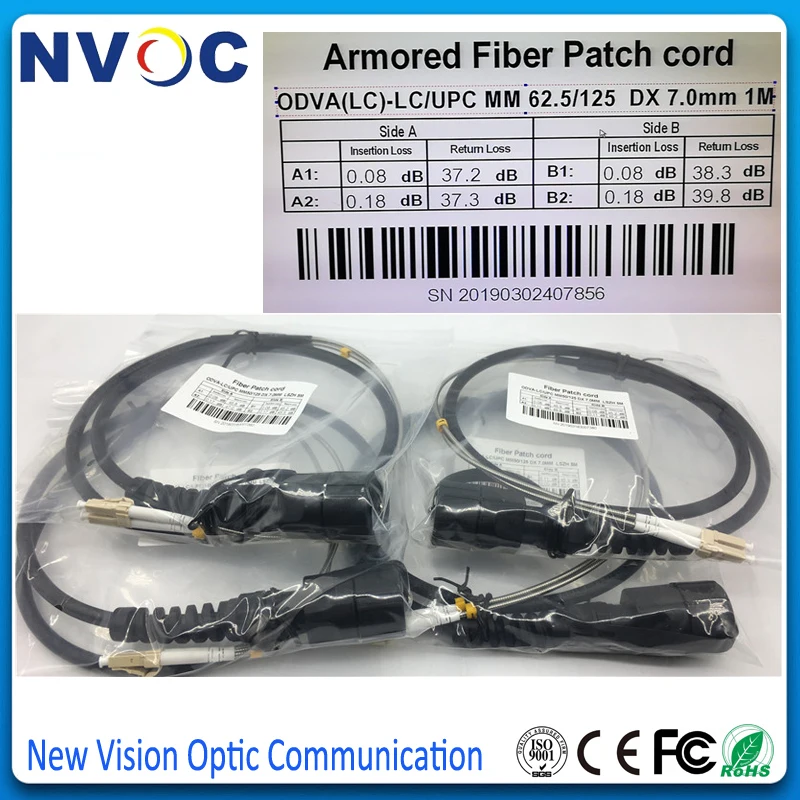

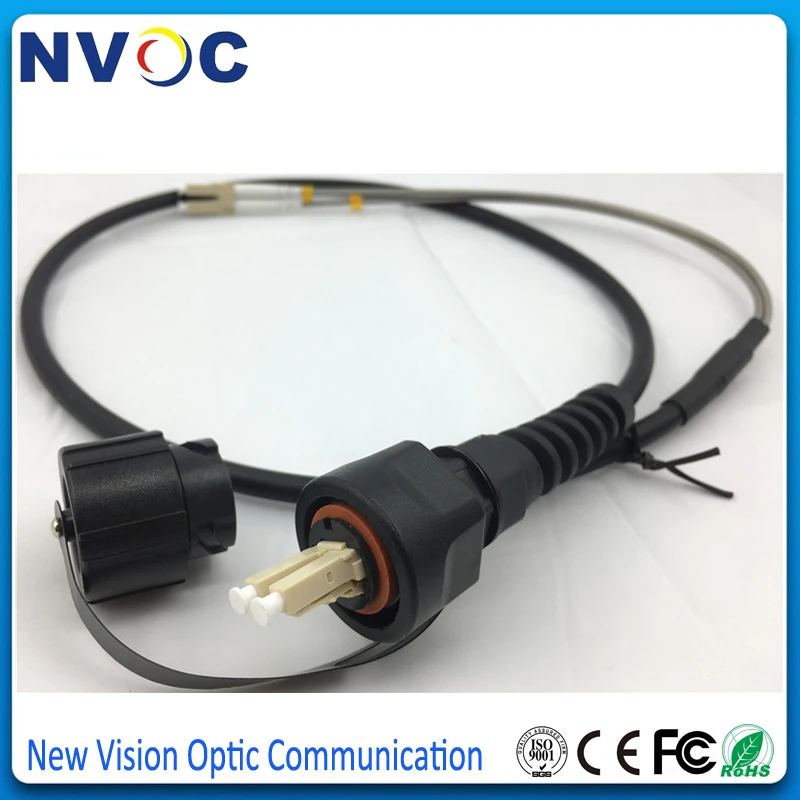

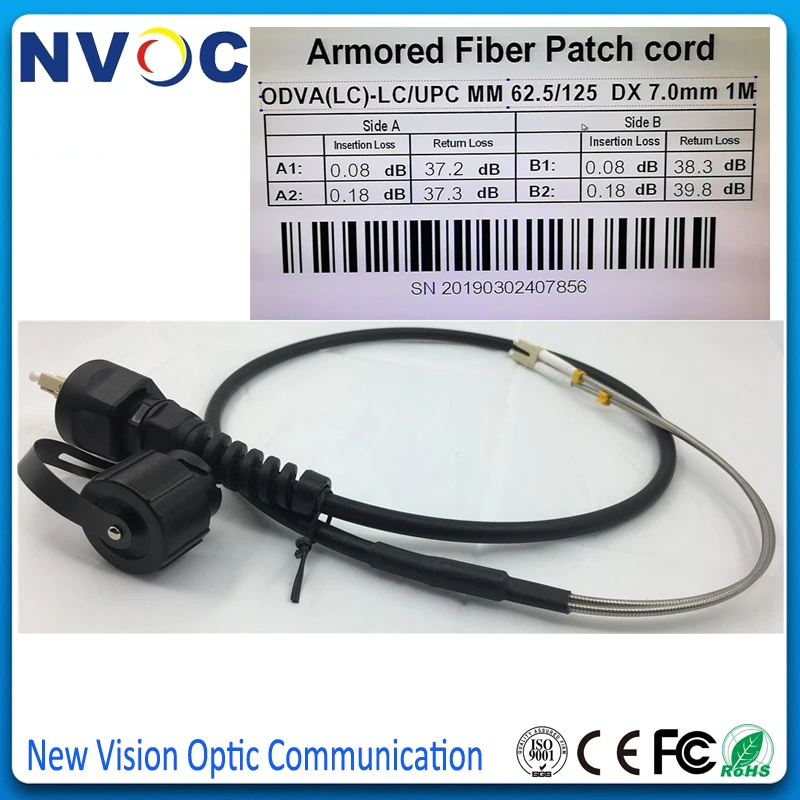

ODVA-LC( Duplex (IP67)) - LC Duplex(30cm Length for yellow jacket,2.0MM),2cores,MM,62.5/125,LSZH Jacket,1M,ODVA-LC/UPC-LC/UPC Fiber Patch cord

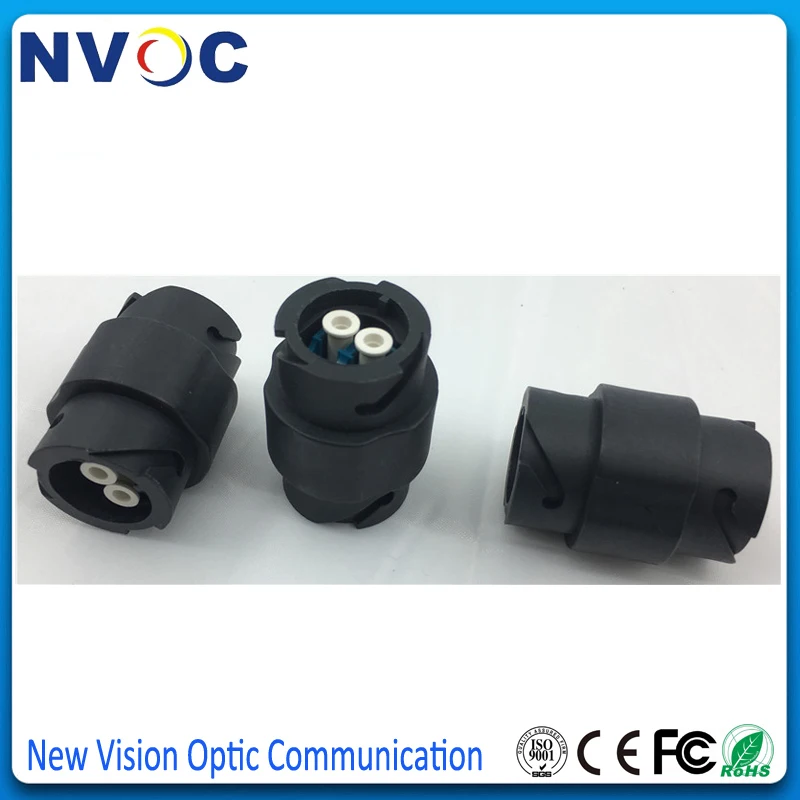

ODVA LC DX Adaptor

Remind:Fiber Connector can be ST,SC,FC,LC

            Ferrule can be APC or UPC

When you place the order,please remark your detailed requirements

 Description:

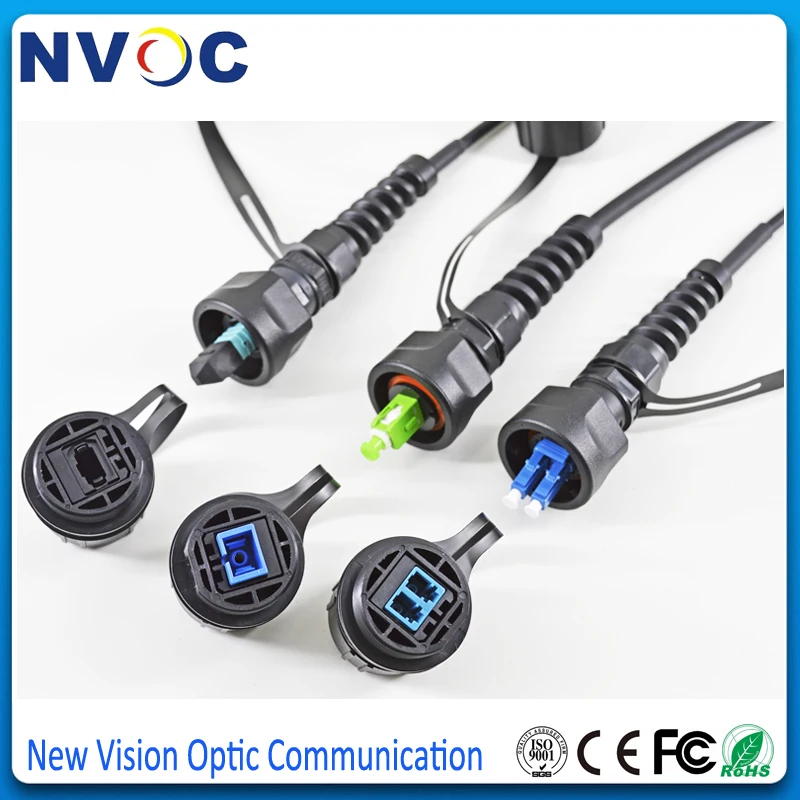

IP67 ODVA Duplex Fiber Optic Connectors

ODVA PDLC BBU RRU Patch Cable is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.

ODVA PDLC BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.

With the development of distributed antenna syatems(DAS), ODVA,PDLC connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.

Typical Usages

FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE
Typical Advantage
IP67 Protection, Salt-mist proof
Fully Water-blocked
Wall Seal Design, Easy Operation, Cost-effective Installation
Light Weight, Dustproof and Waterpoof
Performance Parameters
Connector End A Compact RRH/BBU Helix Cover Connector
End B DLC (duplex LC),or SC,FC,ST,MPO,MTP......
Fiber Core 2,4…12
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 0.2 0.3
Return Loss(Min.dB) 55 60 35
Mating times 500 Min
Durability(Max.dB) 0.2
Reaptability(Max.dB) 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85

Ordering Information

LC SM/MM type availiable

SC SM/MM type availiable

  MPO SM/MM type availiable

Notes:
1. Material and Finish:
- Coupler Ring: Polyester (Black); UL94 V-0
- Plug Housing: Polester (Black): UL94 V-0
- Cable Gland: PA (Black), UL94 V-0
- Cable Gland Rubber Ring: NBR, Color: Black
- Cable Fitting: PA (Black), UL94 V-0
- Interfacial Seal: Silicone, Color: White
Duplex LC Connector
- Housing: PEI , UL94 V-0,
Color: SM Blue/MM Beige/APC SM Green
- Inner Sub Assembly: Zirconia, Metal and PTFE
- Crimp Barrel: Brass, Nickel Plated
- Ferrlue: Brass, Nickel Plated
- Dust Cap: PC, Color: White
- Duplex LC Clip: PC, Color: Black
- Operating Temperature: -40~C to +85~C
2. IP67 rated when covered or fully mated with
the appropriate mating connector
3. Accept 4.5mm to 8.0mm outside
diameter fiber optic cable
