Example: model APAC - 4 s

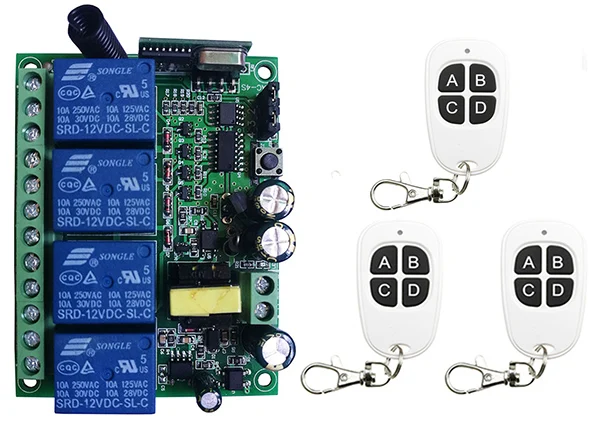

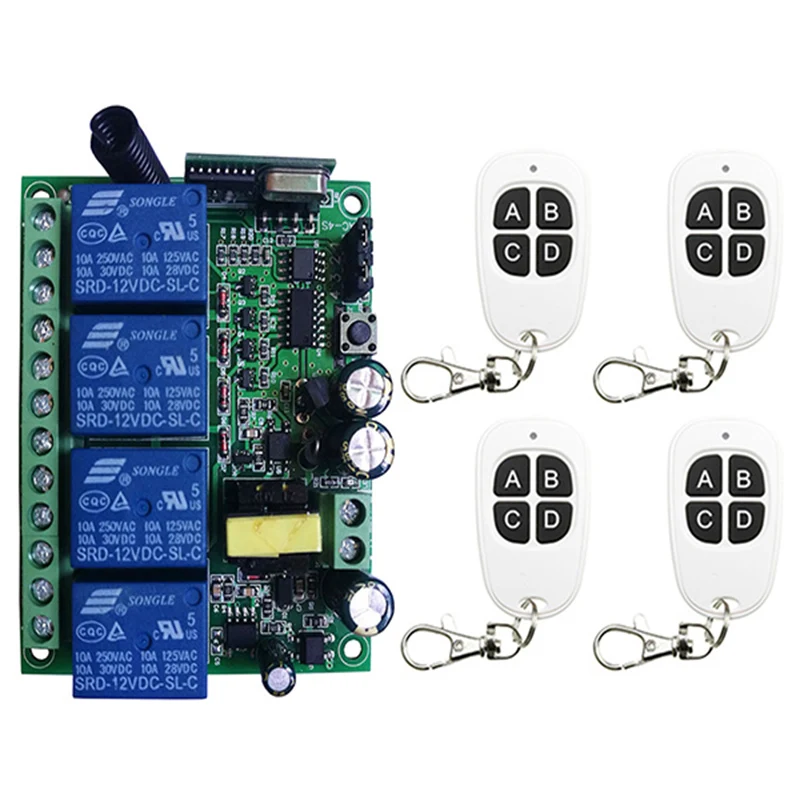

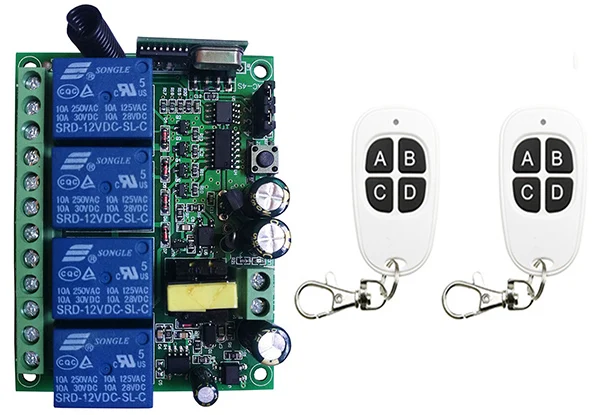

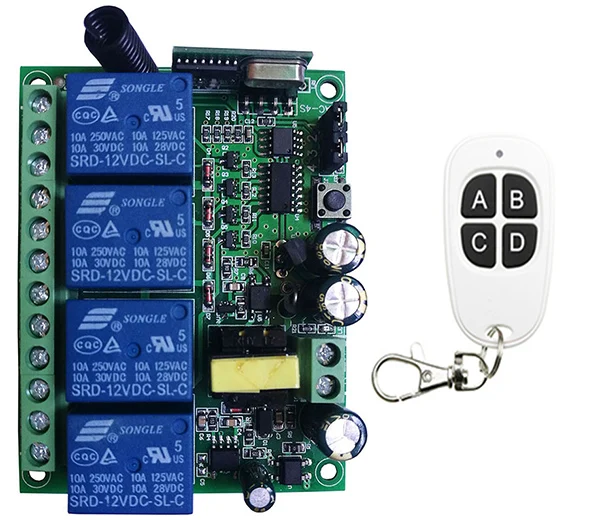

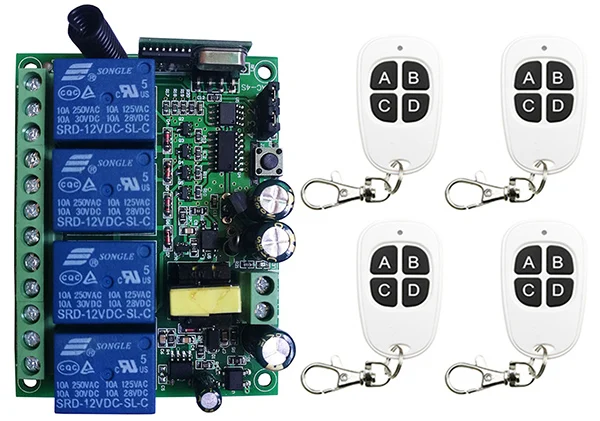

I. product overview:

The company design and manufacture of road multi-function wireless communication control switch for four relay output signal, can make to control the equipment or electrical switch or pass, conversion and various special control program requirements.It is mainly used in electric door, window, lifting equipment, gate, lift, industrial control and lighting and electric control.

The wireless controller, receiver with high confidentiality, stable performance, low power consumption characteristic, and easy to use, without the traditional jump line or dial the code switch code, just put the remote control with the receiving controller for code learning can be realized.There are four kinds of output modes: self-locking, point moving, interlock, self-locking and three-way movement

2. Output mode:

A, self-locking -- use Jumper cap to connect 1 and 2；3 and 4 connections

B, interlock -- use Jumper cap to take 1 and 2 connections;3and 4Don't connect

C, jog  -- 1，2, 3, 4 are all Don't connect

D,1ch self-locking and 3ch jog -- use the Jumper cap to connect the 3 and 4;1and2  Don't connect

3. Technical parameters:

1. Working voltage: AC110-230V

2. Working current: no more than 10mA

3, working temperature: - 10 ℃ ~ + 70 ℃

4. Working frequency: 315MHz/433MHZ

5. Receiving sensitivity: -108dbm

6. Control load: ac and dc can be selected

7. Output current: less than 7A

8. Dimensions: 75 * 58 * 20mm

 Learning methods:

Click on after the power supply code key, can open learning after the indicator light hand into the learning state, namely Ren Yijian within 20 seconds according to the remote control transmitting, lights flashing a to said the lights went out learning success, the remote control can be used.

 Clearance method:

After power, press the learning button for about 8 seconds until the light goes out.

A:

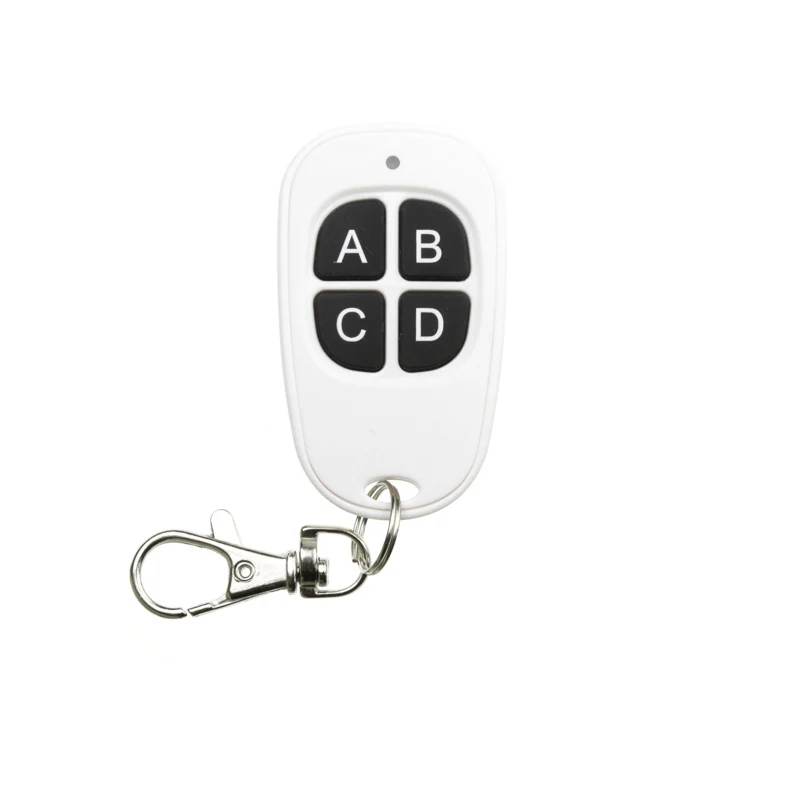

1 x Transmitter(with battery)
