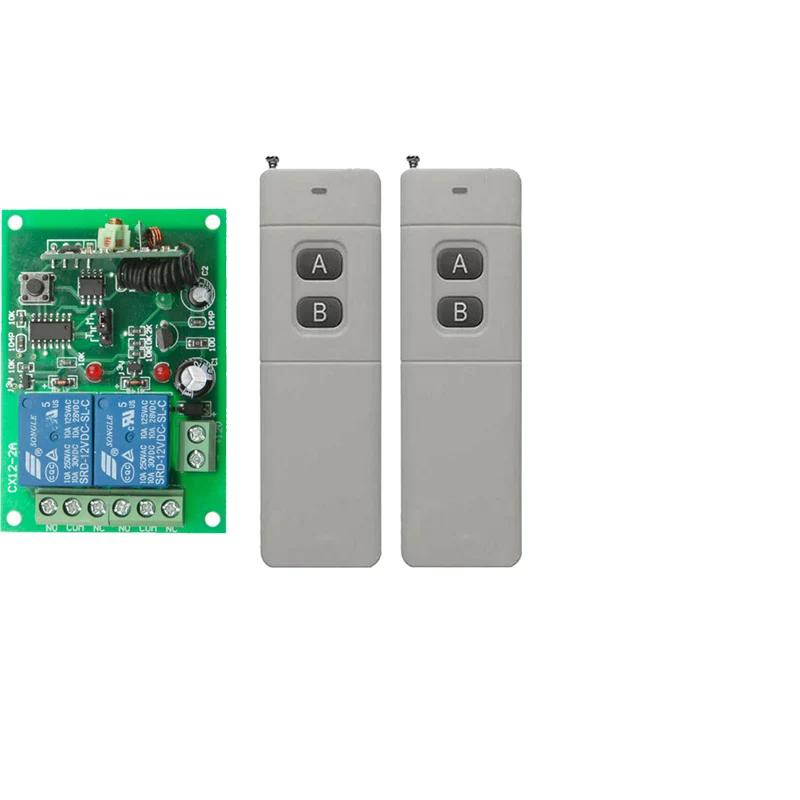

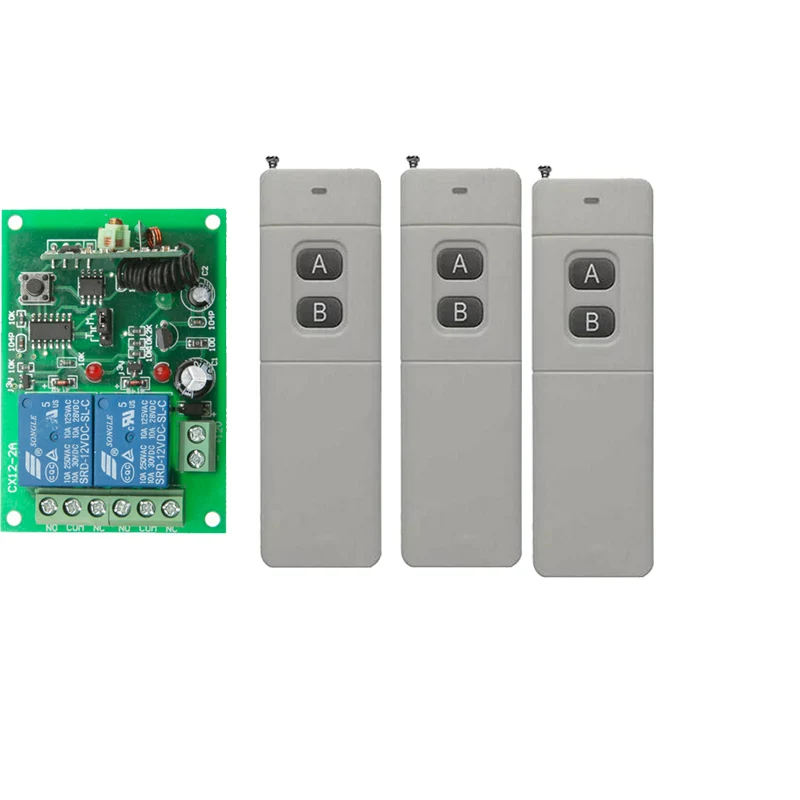

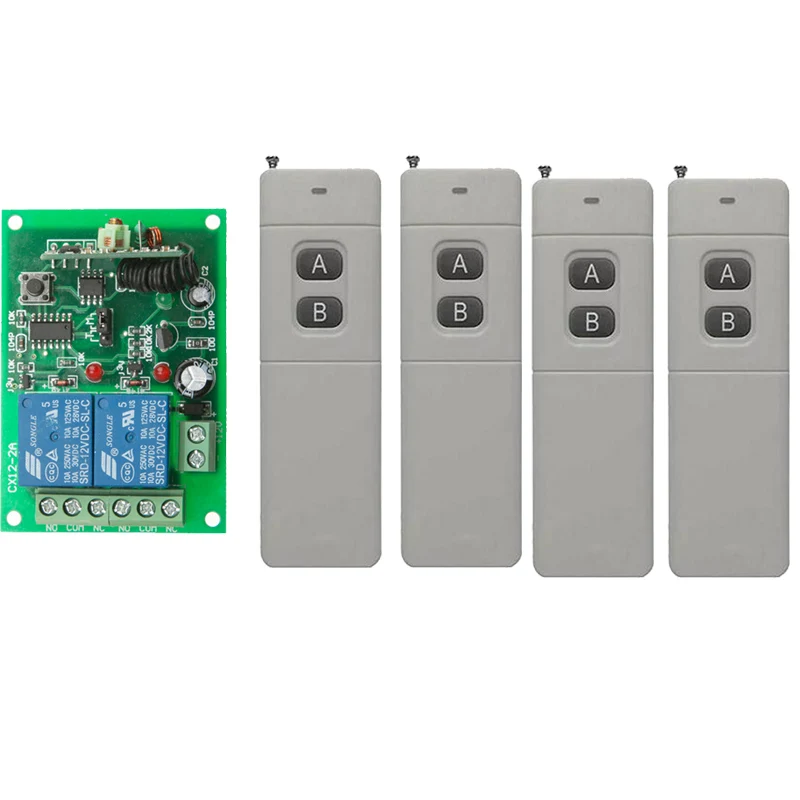

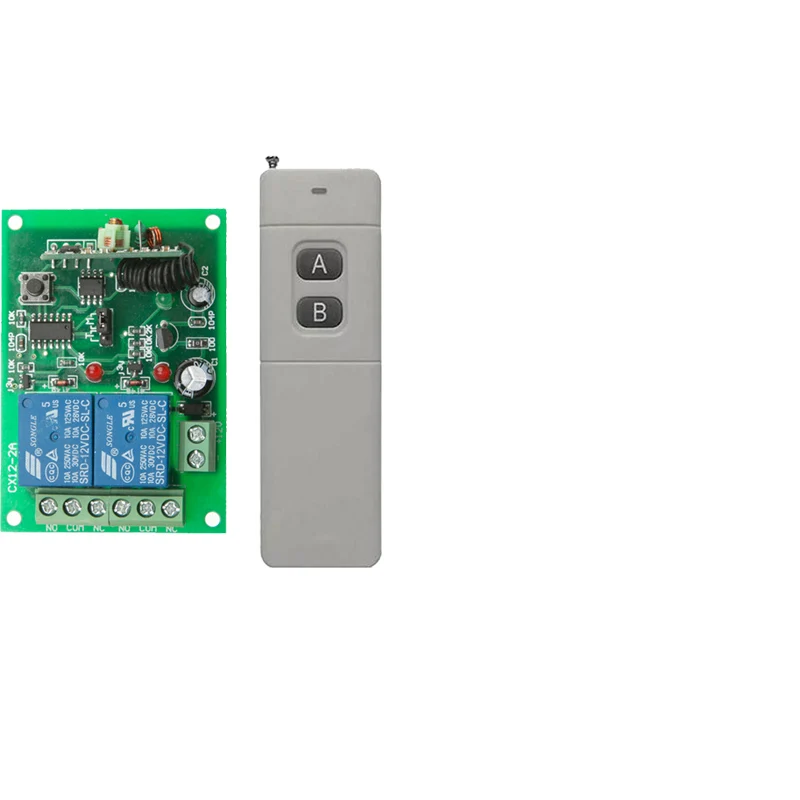

3000M Long Distance DC 12V 2 CH 2CH RF Wireless Remote Control Switch System Transmitter + Receiver 315/433 MHz | Электроника

Feature:

This RF Wireless Garage Door Remote Control is easy to install and use, the 2 channel remote control system lets you take control of your gadgets, car and home or garage.
Specifications:
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

1.Transmitter
Channel: 2 CH
Remote Control Distance: 0-150m
Encode: Fixed code, soldering
Frequency:315 or 433
Size: 68mm x 48mm x 15mm
Power Supply: 1 X 12V/23A (Do not included)

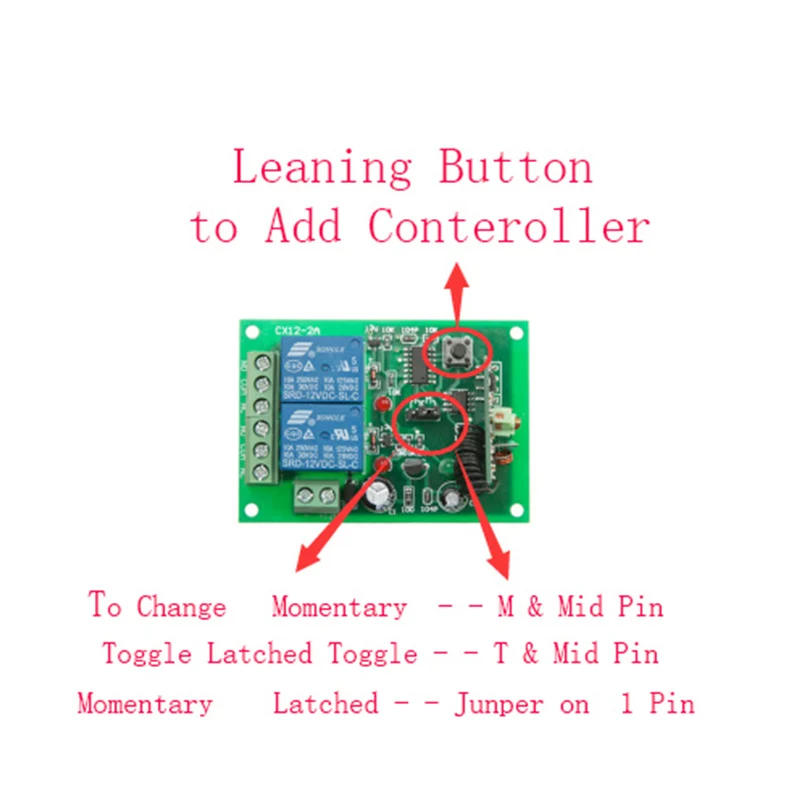

2.Control Mode:
Control Types:
Toggle/Self-Lock: Press->On; Press again->Off
press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
Latched/Inter-Lock: Press->On; Press other button->Off
press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )
(Factory Original Setting is  Momentary,pls Choose the function,or Change it by yourself.)
Decode: Fixed code, soldering
Power Supply (Operating Voltage): DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Work Voltage Range of Relay: AC 110-240V or DC 0-28V
sensitivity:-105 dBm
Operating Temperature:-40'C~+80'C
Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency

pacote inclued:

A:

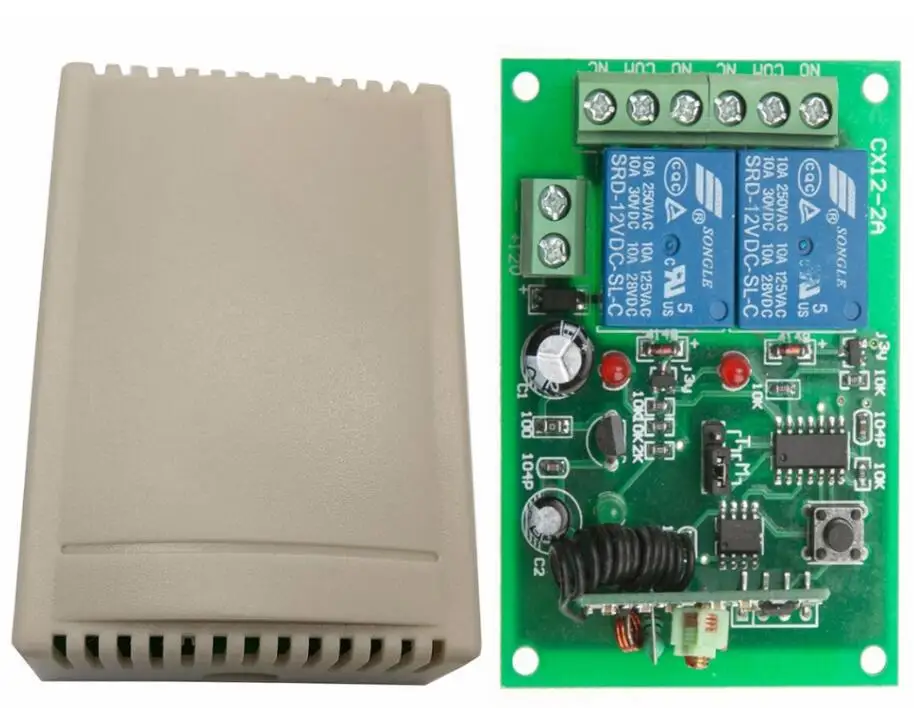

1 x Receiver(with cover)

4 x Transmitter(with battery)
