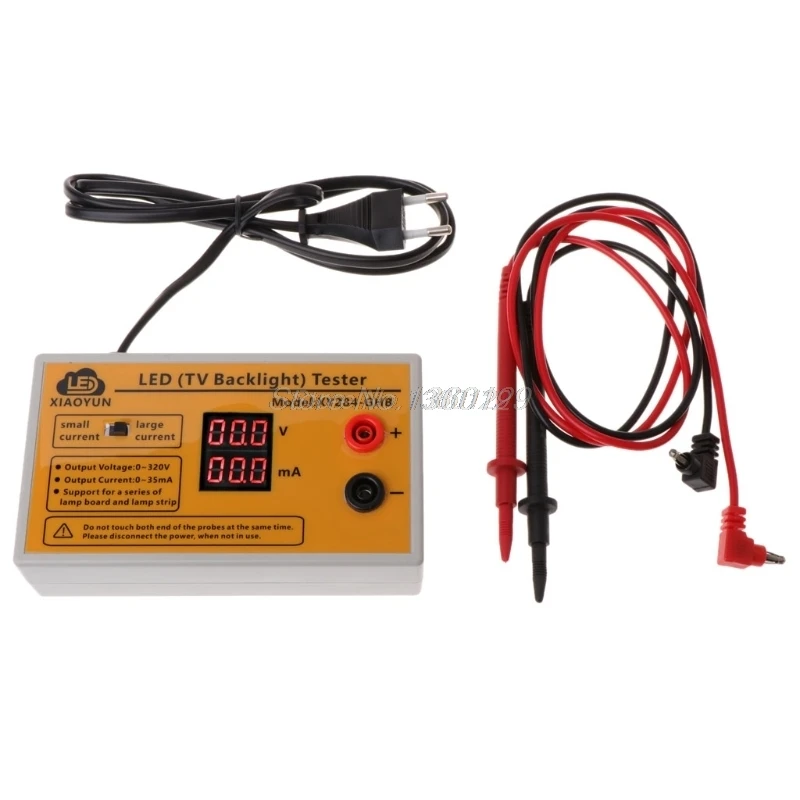

Hot Sale 0-320V Output LED TV Backlight Tester Multipurpose Strips Beads Test Tool Wholesale&DropShip | Лампы и освещение
1 816,86 руб.
1000 шт. и острыми носками в Мощность светодиодный Светодиодный Подсветка 2 Вт 3535 3V
772,03 - 1 602,23 руб. / набор
1-2WSMD LED Kit 3V/6V 2835/3030/2828/3535/5630/7020/7030/4020 Cold white For TV Backlight Beads 170PCS | Лампы и освещение
314,47 руб. / lot
WS250 315 400 инвертор аргоновая дуговая сварка Высокое напряжение плата двойной
1 995,32 руб.
Best Price 10pcs/lot 5MM 4PIN RGB Common Anode LED Emitting Diodes Round Clear Lights Lamp | Лампы и освещение
83,33 руб. / lot
Характеристики
1000w Medium wave IR bulb quartz infrared halogen heat lamp | Лампы и освещение
История изменения цены
*Текущая стоимость 18 082,09 / lot уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-20-2026 | 21518.56 руб. | 22594.14 руб. | 22056 руб. |
| Feb-20-2026 | 21337.52 руб. | 22404.46 руб. | 21870.5 руб. |
| Jan-20-2026 | 17901.85 руб. | 18796.40 руб. | 18348.5 руб. |
| Dec-20-2025 | 20975.66 руб. | 22024.93 руб. | 21499.5 руб. |
| Nov-20-2025 | 18263.27 руб. | 19176.79 руб. | 18719.5 руб. |
| Oct-20-2025 | 20613.33 руб. | 21644.3 руб. | 21128.5 руб. |
| Sep-20-2025 | 20433.80 руб. | 21455.93 руб. | 20944 руб. |
| Aug-20-2025 | 20252.16 руб. | 21265.8 руб. | 20758.5 руб. |
| Jul-20-2025 | 20071.73 руб. | 21075.94 руб. | 20573 руб. |
Описание товара

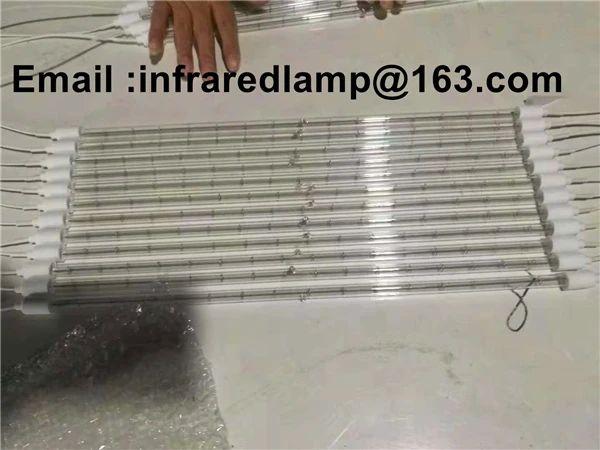

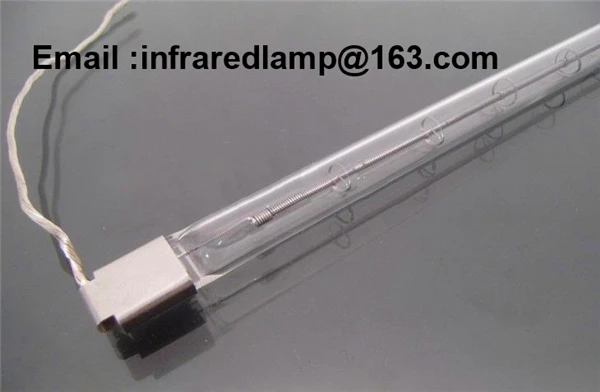

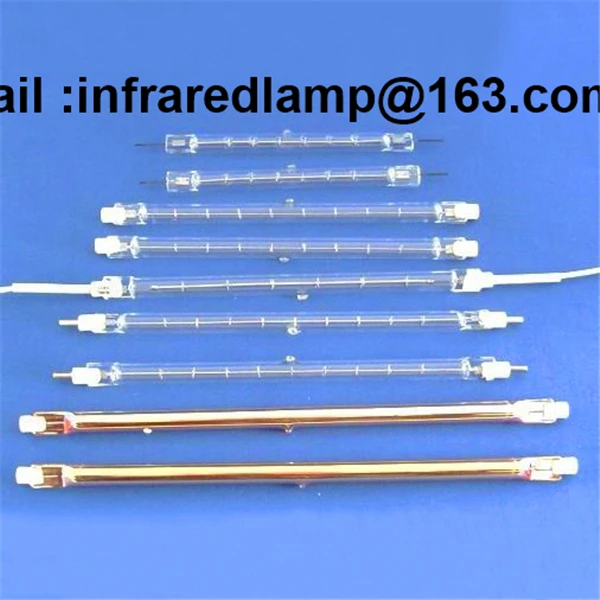

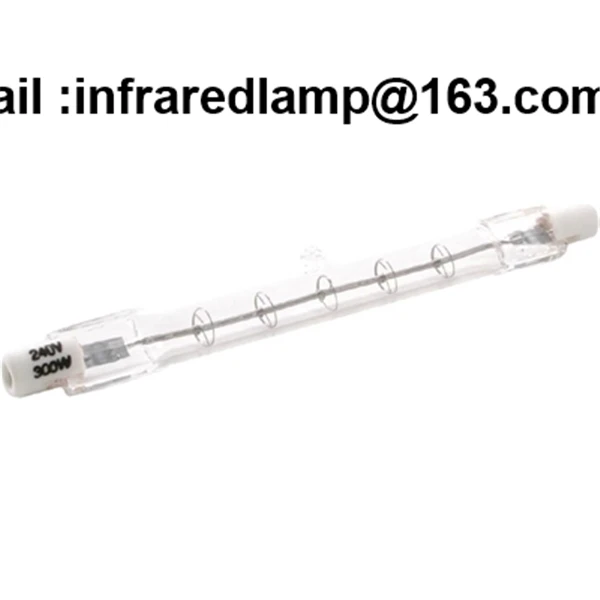

1000w Medium wave IR bulb quartz infrared halogen heat lamp
we will customize the lamps according to your exact requirement, we need to know the length ,power ,voltage and other details. please contact us before purchasing !
whatsapp : +86 138 5232 7847 / skype :ryan1990427
Application :
Printing industry: glue and ink drying, curing;
Glass industry: glass annealing and drying;
Packaging industry: PET blowing bottles, film;
Shoe industry: glue activation dry;
Furniture industry: fast drying;
Rubber industry: plastic softening, molding and cable production;
Photovoltaic industry: sintering, substrate drying, spray preheating;
Automotive Industry: Complete Car Painting Drying and Local Paint Repair
Textile industry: fabric preheating, drying, pressing and adhesive activation;
Technical Parameter
|
Technical data |
Medium-wave twin tube infrared lamp |
Short-wave twin tube IR lamps |
|
Power |
20 / 25 W/cm |
< 200 W/cm |
|
Max. heated length |
2000 / 3000 mm |
6400 / 2400 mm |
|
Diameter |
23 x 11 / 33 x 15 mm |
35 x 15 / 23 x 11 mm |
|
Filament temperature |
800°C - 950°C |
1800°C - 2400°C |
|
Wavelength |
2.4 - 2.7 µm |
1.0 - 1.4 µm |
|
Max. power density |
60 kW/m2 |
200 kW/m2 |
|
Response time |
1 - 4 min |
2 seconds |
|
Service life |
5000 hours |
5000 hours |
Double tube Design
The unique double tube design has excellent mechanical stability and good radiation capacity and ,we can customize the quartz tube and filament to meet your requirements. The Max length can reach 3 meters.

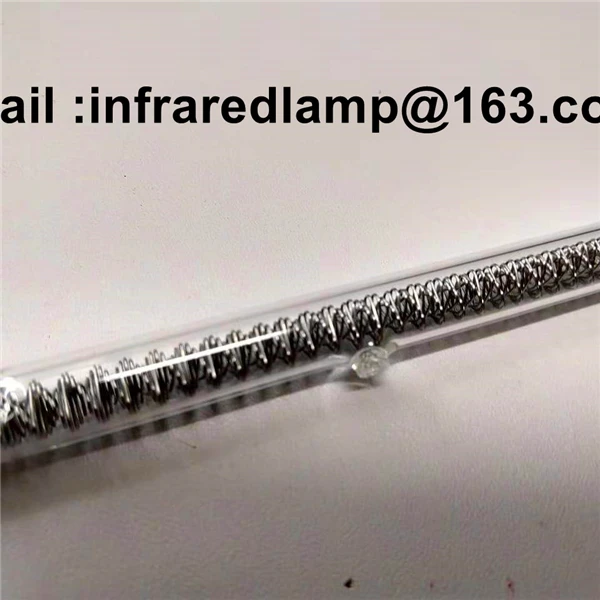

Good Quality Quartz Tube
We can customize the tube according to your requirement, Special sharp all available .The Raw materials Quartz are filtered and finely processed . Quartz glass is very pure , with excellent thermal stability and transmission.

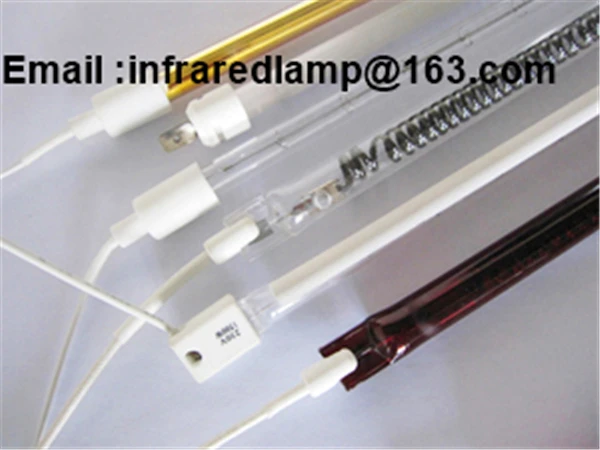

Gold reflector
Risen Gold coating IR lamps can Provide directional heating to the object. The gold reflector on the IR lamps reflects Infrared radiation. It nearly provide double the effective radiation - a good choice to improve the heating efficiency.
Energy-saving principle of short wave infrared heat lamp:
The short wave infrared lamp Produce multiple reflections when passing through the quartz tube. It has excellent far infrared radiation characteristics. If there is a gold-plated reflective layer, the effect is better, and the power saving can reach 35%.
Infrared heating lamp performance:
Infrared heating tube does not use paint outside, no filling inside, stable radiation rate, no deformation at high temperature, no harmful radiation, no environmental pollution, strong anti-corrosion ability, good chemical stability, small thermal penetration, high heat conversion rate, long-term Use, do not degenerate the true color.
Cause of the heating filament with higher temperature, the Radiant density of the short wave infrared lamp is In most instances higher than the Radiant density of the medium wave infrared lamp.
![)3`YJ(063FQOQ~8]12W}AJM](http://ae01.alicdn.com/kf/HTB1G6v7XUY1gK0jSZFCq6AwqXXab.jpg)
