SOONHUA 2 Channel Wireless RF Remote Control Transmitter Switch System Receiver Module Fixed Code DC 12V Long Range Controller

Features:

1. 100% brand new and high quality wireless control.

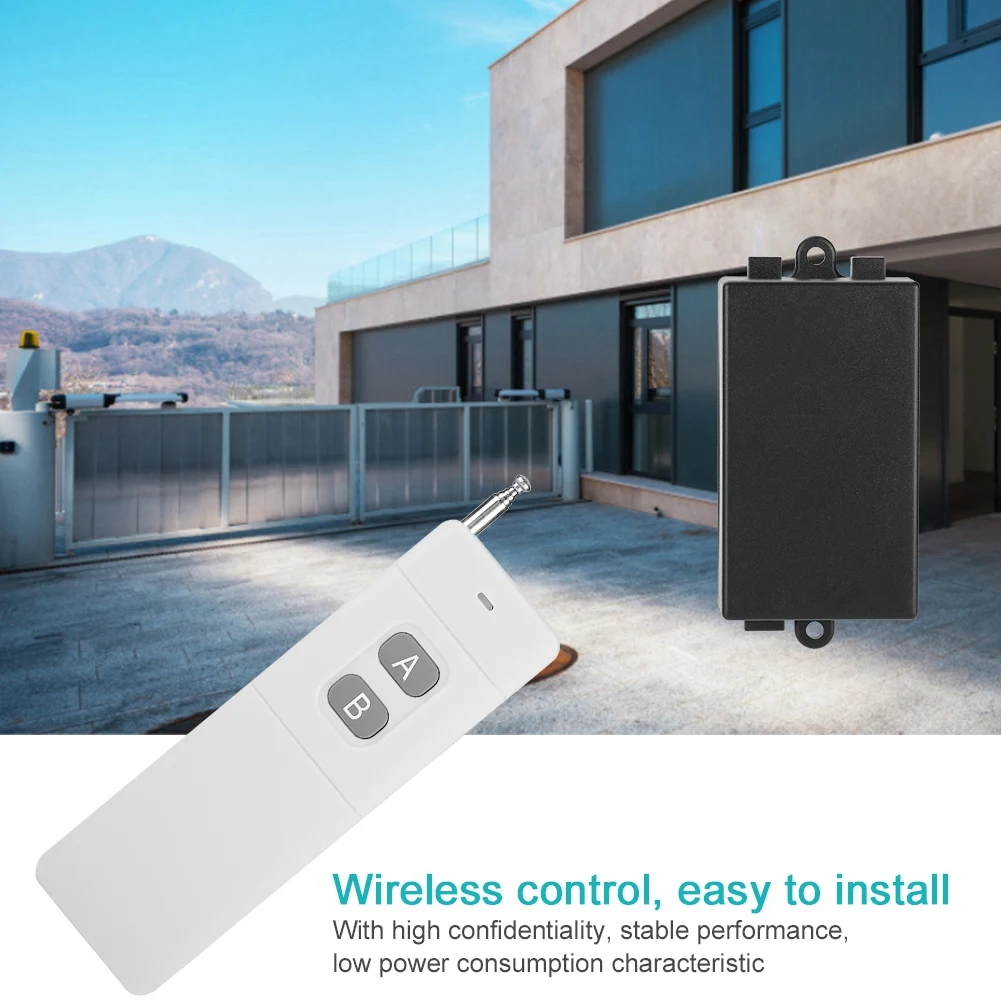

2. Advantages: With high confidentiality, stable performance, low power consumption characteristic.

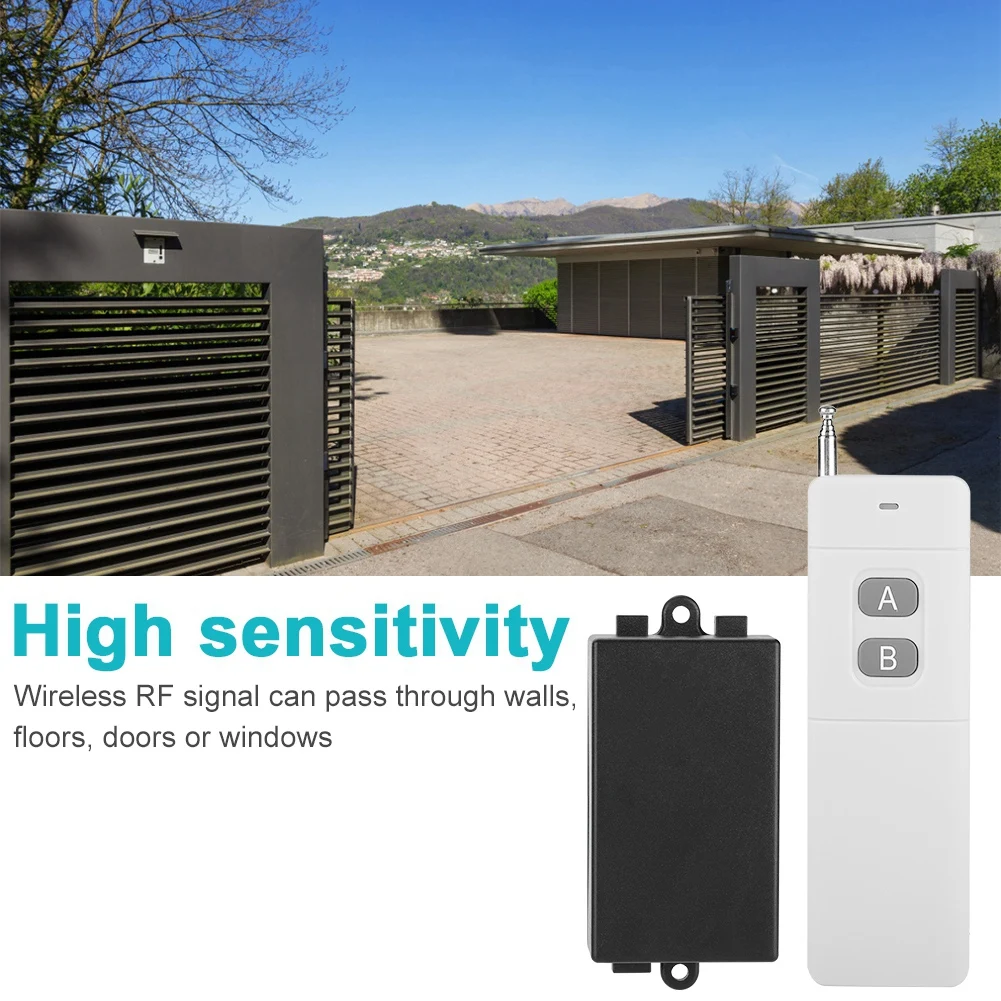

3. High sensitivity: Wireless RF signal can pass through walls, floors, doors or windows.
4. Remote control distance range is 0-3000m, ideal distance without any block and signal interfere, it would rise and fall about 10%-90% with the block and signal interference.
5. Very Convenient: You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
6. Easy to use: Wireless control, easy to install, direct replace your old or broken one.
7. Application: Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows, etc.

Specification:

Material: ABS

Color: Black(Receiver) + Gray (Transmitter)

Power Supply: 9V Battery (NOT included)

Channel: 2 CH

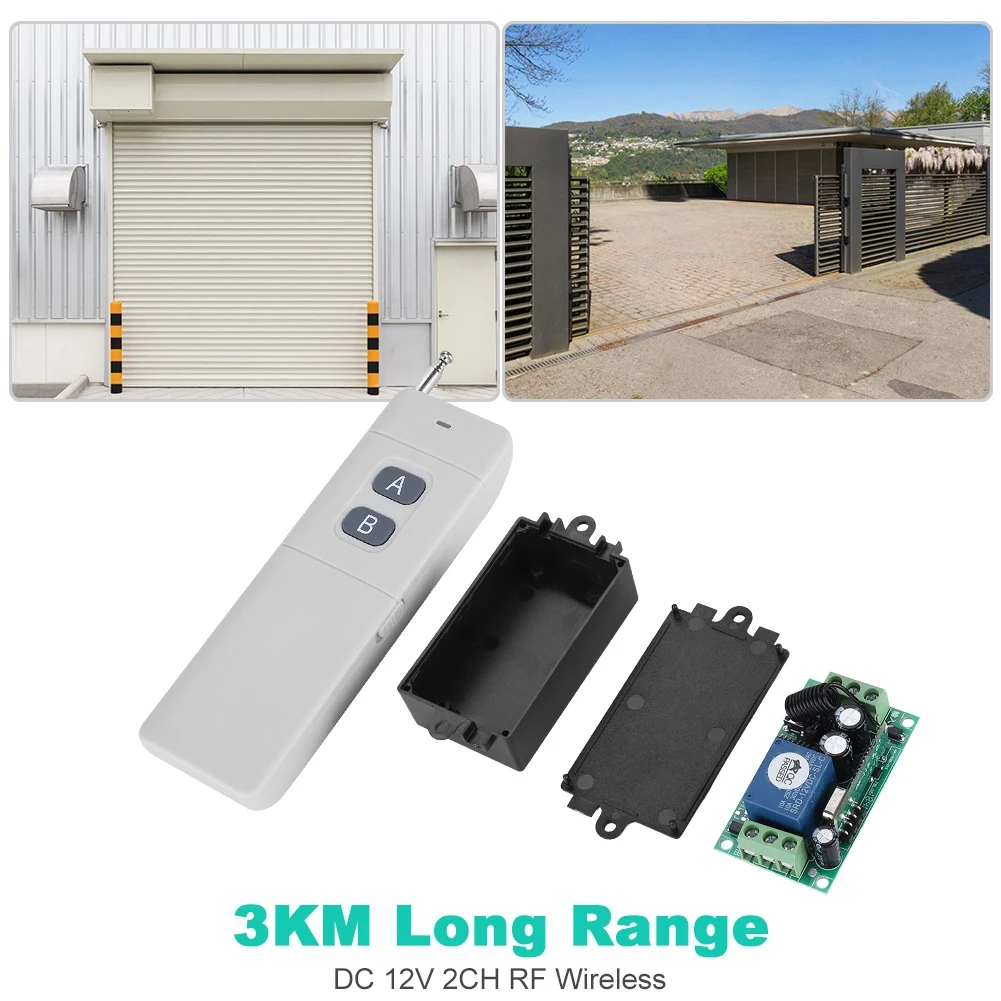

Remote Control Distance: 0-3000m ( Ideal distance without any block and signal interfere, it would rise and fall about 10%-90% with the block and signal interference.)

Encode: Fixed code, soldering

Frequency: 315MHz

Decode: Fixed code, soldering

Power Supply (Operating Voltage): DC 12V

Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC

Work Voltage Range of Relay: AC 110-240V or DC 0-28V

Operating Temperature: -40° to +80°

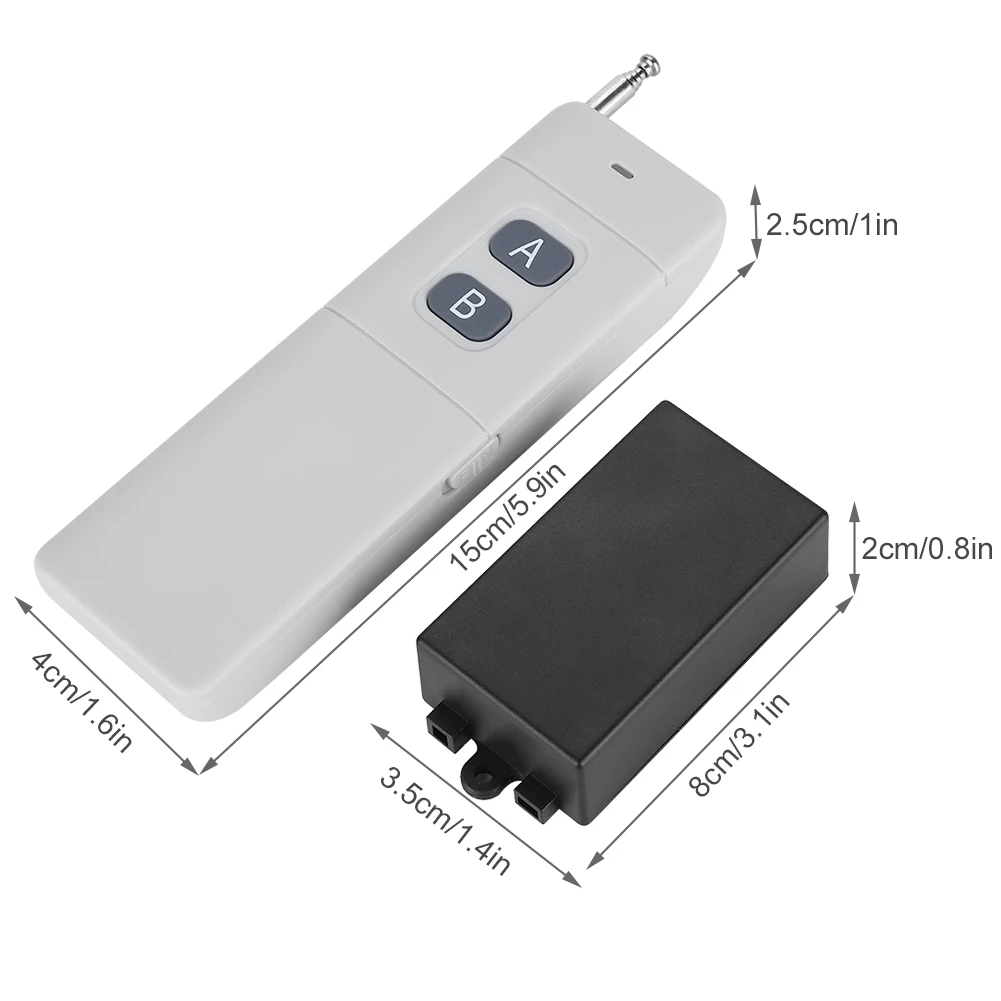

Receiver: 8 * 3.5 * 2cm / 3.1 * 1.4 * 0.8in

Remote control: 15 * 4 * 2.5 cm / 5.9 * 1.6 * 1.0in

Package Weight: 92g

Modes:

1. Toggle/Self-Lock: Press->On; Press again->Off

- Press one button for one time is working/ON .press the same button again is stop/OFF.(1 channel switch(receiver) need 1 button remote control (transmitter).

2. Latched/Inter-Lock: Press->On; Press other button->Off

- Press one button is working/ON ,press another button is stop/OFF. ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).

3. Momentary/Jog: Press and hold->On; Release->Off

- Keep pressing one button is working /ON. loosen your finger is stop/OFF. (1 channel switch(receiver) need 1 button remote control (transmitter)).

(Original Setting is Momentary, Change it by yourself.)

Learn Code and Remove Code:

1. Learn: Press the learning code .the indicator from on to off, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it means you learn it correctly.

2. Remove: Press the learning button about 8 seconds, the indicator turns on to off, it means the Code had been removed correctly.

Package Included:

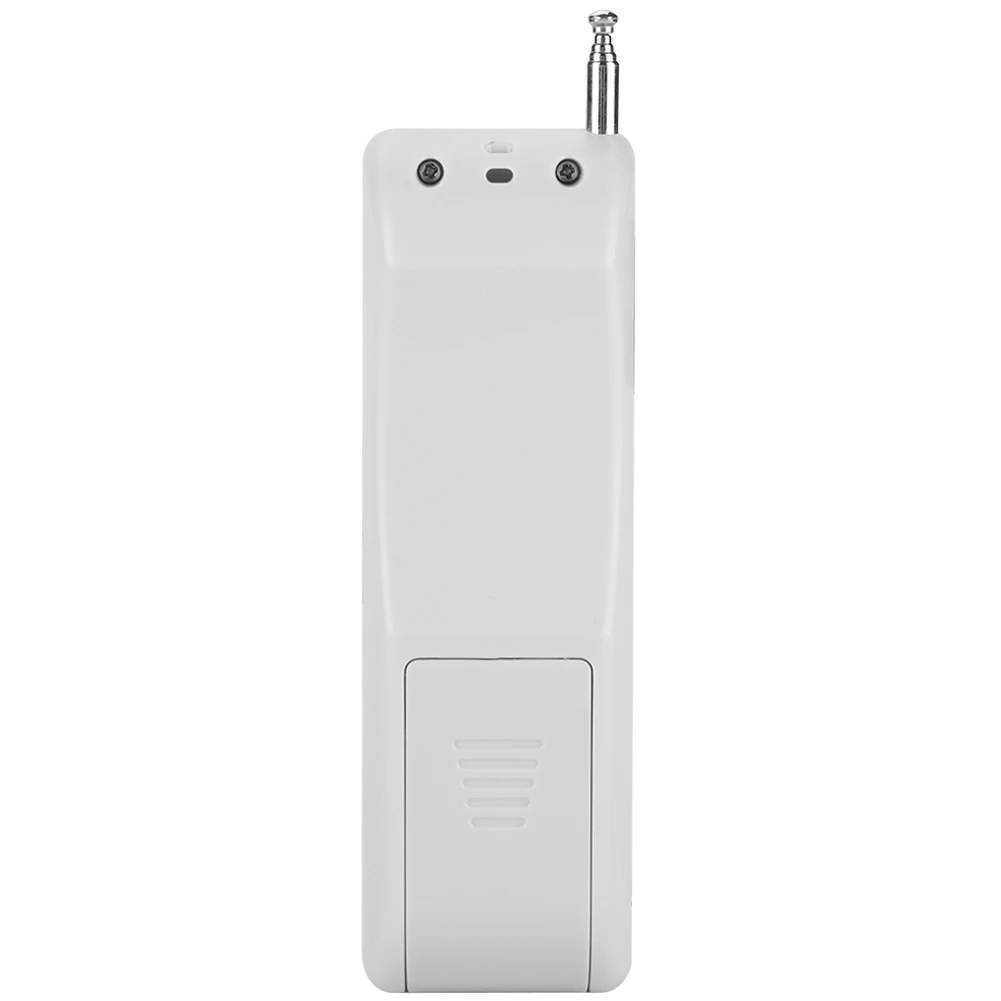

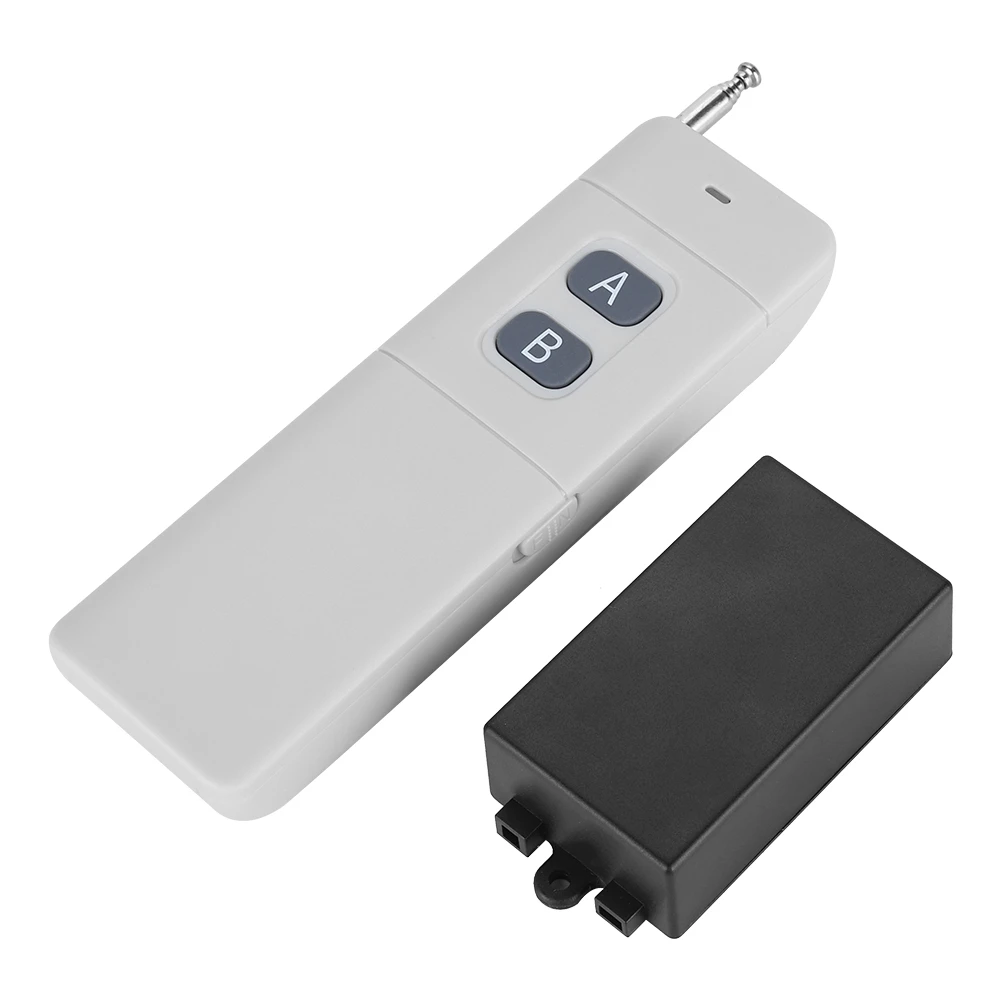

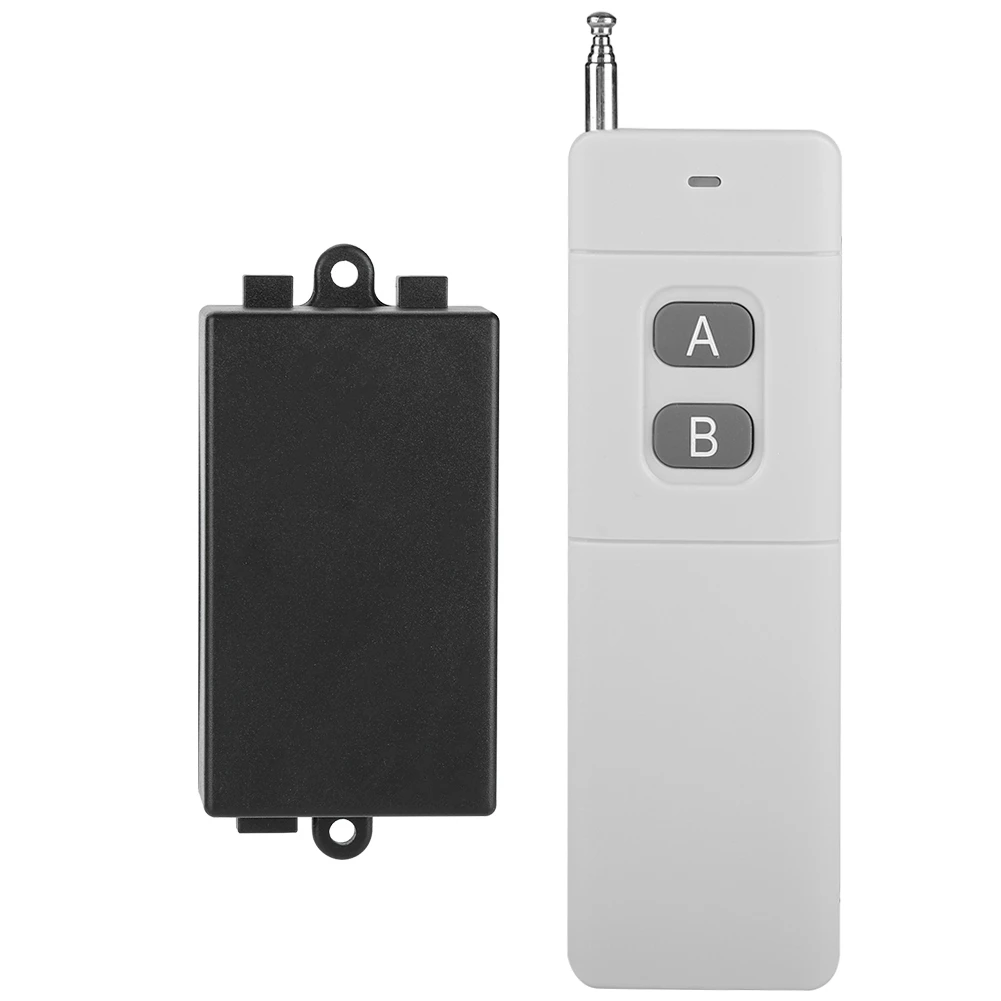

1 * 3KM Remote Control Transmitter (Battery is not included!)

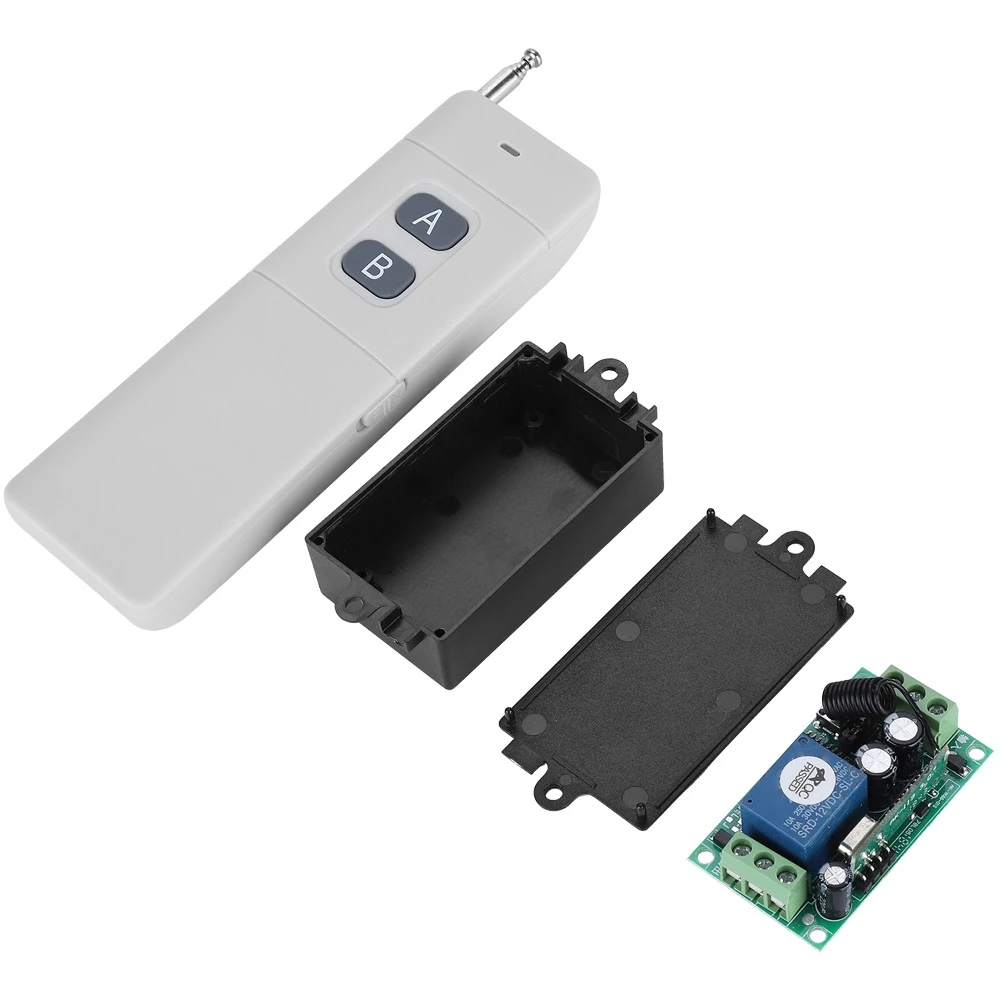

1 * Remote Receiver Module (Including shell)

Note:

1. The battery is very dangerous in transit, so you need to buy the battery yourself.

2. Please allow 0.5-1 inch difference due to manual measurement. (1 inch=2.54cm)

3. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
